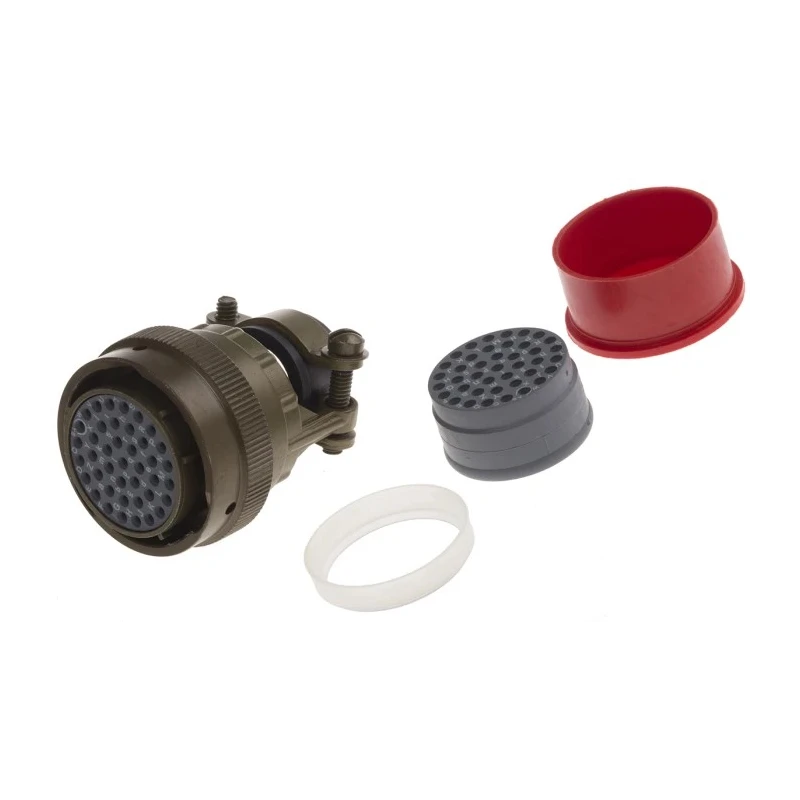

Souriau Sunbank by Eaton Copper Alloy Straight 41 Way Cable MIL Spec Circular Connector Male Female 500V 7.5A 85106EC2041S50

Souriau Sunbank by Eaton 85106EC2041S50 Mil Spec Circular Connector offers a high-performance copper alloy construction with gold plated contacts to ensure reliable conductivity and corrosion resistance in demanding industrial and military applications. It is designed as a straight 41 way cable connector suitable for male and female cable assemblies, with an IP65 rating for dust and water resistance.

This connector operates at a voltage of 500V and is rated for a current of 7.5 amperes, meeting the MIL-DTL-26482 military specification for durability and performance. The shell size 20 features olive drab cadmium plating to provide mechanical robustness and environmental protection suitable for rugged conditions encountered in aeronautics, weapons systems, industrial automation, measurement, instrumentation, and transport sectors.

Termination is by solder and is suitable for 24 to 18 AWG cables (cross-sectional area 0.21 to 0.93 mm²). The mating type is bayonet, ensuring secure and quick coupling with compatible connectors. It can operate in extreme temperatures ranging from -55°C up to 125°C, making it reliable for harsh environments.

The connector complies with applicable national and international standards including NFC 93422, HE 301 B, MIL-C 26482G series 1 and FBI approvals, underpinning its suitability for critical industrial and military applications. The series 851 connectors were originally designed for the aeronautics and weapons industries but have found wide use across diverse electrical and electronics fields.

Its IP65 rating provides protection against dust ingress and low-pressure water jets, suitable for outdoor and industrial use. The straight orientation and cable mounting style facilitate straightforward integration in cable harness assemblies.

Constructed with copper alloy contact material and gold plating for corrosion resistance. Rated for 7.5 amperes current and 500 volts operating voltage. Meets MIL-DTL-26482 military standard with IP65 ingress protection.

Features straight orientation with bayonet mating type for secure connection. Designed for solder termination with cable mount type for durable electrical contacts. Operating temperature range from -55°C to 125°C suitable for harsh environments.

Shell size is 20 with olive drab cadmium plating for robust mechanical protection. 41 way cable connector with male and female contacts for versatile cable assemblies. Compliance with national and international standards including NFC 93422 and FBI approvals.

This connector is ideal for demanding industrial, aeronautical, military, automation, and instrumentation applications requiring rugged, reliable cable interconnection solutions. Explore the Souriau Sunbank by Eaton product range for advanced circular connectors and cable assembly components at EnvMart.
