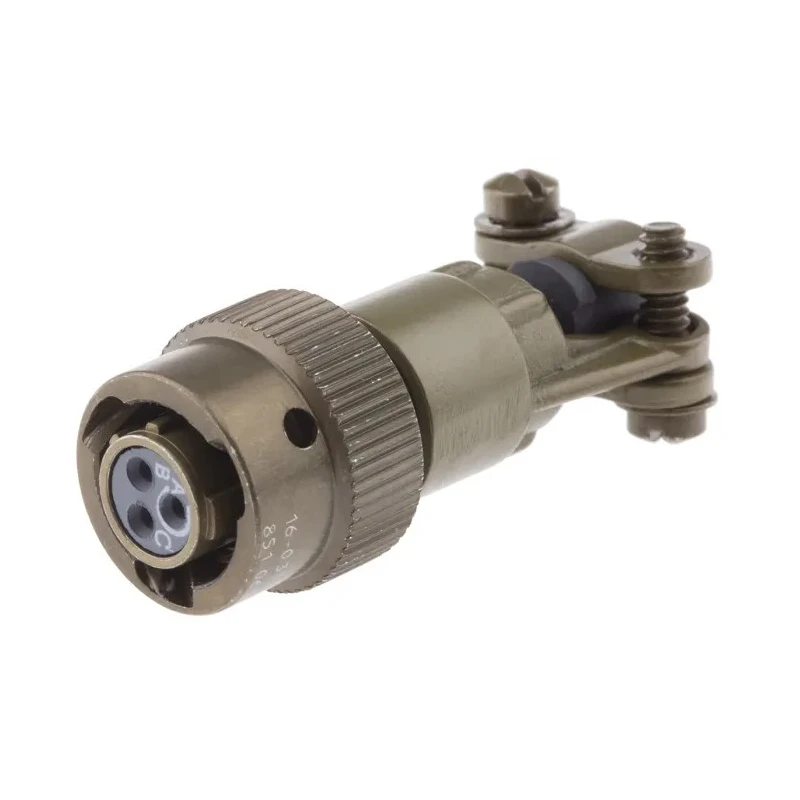

Souriau Sunbank by Eaton Copper Alloy Straight 3 Way Cable MIL Spec Circular Connector Male Female Contacts 85106EC833S50
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 7.5A |
| Model | 85106EC833S50 |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 8 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
| Meets applicable national and international standards and specifications | NFC 93422 |
Key Features
- Rated for 7.5 amperes current and 500 volts voltage.
- Features a robust olive drab cadmium plated shell and gold plated copper alloy contacts.
- Designed with bayonet mating type for secure coupling and IP65 ingress protection rating.
- Operates reliably between -55°C and 125°C temperature range.
- Mount type is cable with solder termination for 24 to 18 AWG cables.
- Manufactured according to MIL-DTL-26482 military standard and meets NFC 93422 specifications.
- 851 series connectors are widely used in industrial, aerospace, and defense applications.
- Connector shell size 8 with straight orientation and female contact gender.
Product Description
Souriau Sunbank by Eaton 85106EC833S50 is an industrial-grade MIL Spec Circular Connector designed for demanding electrical and electronic applications. It features a copper alloy straight 3 way cable with male connector gender and female gold plated copper alloy contacts, optimized for solder termination on 24 to 18 AWG cables (0.21 to 0.93 mm² cross-section). The robust olive drab cadmium plated shell and bayonet mating ensure secure, environmentally sealed connections with an IP65 ingress protection rating.
This connector operates reliably within a temperature range of -55°C to 125°C and is rated for 7.5 A current and up to 500 V voltage. It adheres to MIL-DTL-26482 military standard and NFC 93422, making it suitable for harsh industrial, aerospace, and defense environments where durability and performance are critical.
The 851 series connectors were originally developed for aeronautics and weapon systems and have since gained widespread use in instrumentation, measurement, transport, machine tools, and industrial automation sectors. With a shell size 8 and a straight orientation, this MIL Spec connector provides a dependable solution for demanding cable connection needs.
7.5 A current rating and 500 V voltage rating for versatile industrial use. Gold plated copper alloy contacts ensure excellent conductivity and corrosion resistance. Bayonet mating type and IP65 sealing support secure and harsh-environment applications.
Meets high military and international standards including MIL-DTL-26482 and NFC 93422. Suitable for cable clamp mounting, solder termination types, and cables ranging 24 to 18 AWG.
This connector is manufactured in France and designed for use in industrial electronics, military, aerospace, and other tough operational environments requiring MIL Spec reliability. Explore more Mil Spec Circular Connectors and electrical components in this specialized category at EnvMart for all your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 7.5 amperes current and 500 volts voltage.
This model operates reliably between -55°C and 125°C.
It features a solder termination type for cables ranging from 24 to 18 AWG.
It has an IP65 ingress protection rating, ensuring environmental sealing.
The contacts are made of gold plated copper alloy, ensuring good conductivity and corrosion resistance.
It is manufactured according to the MIL-DTL-26482 military standard and meets NFC 93422 specifications.
The connector has a shell size of 8 and features a straight orientation.
This model features 3 contacts with a male connector gender and female contact gender.
It is designed with a bayonet mating type for secure coupling.
This connector is manufactured in France.
It is widely used in industrial, aerospace, and defense applications.
The shell is plated with olive drab cadmium for added protection.
