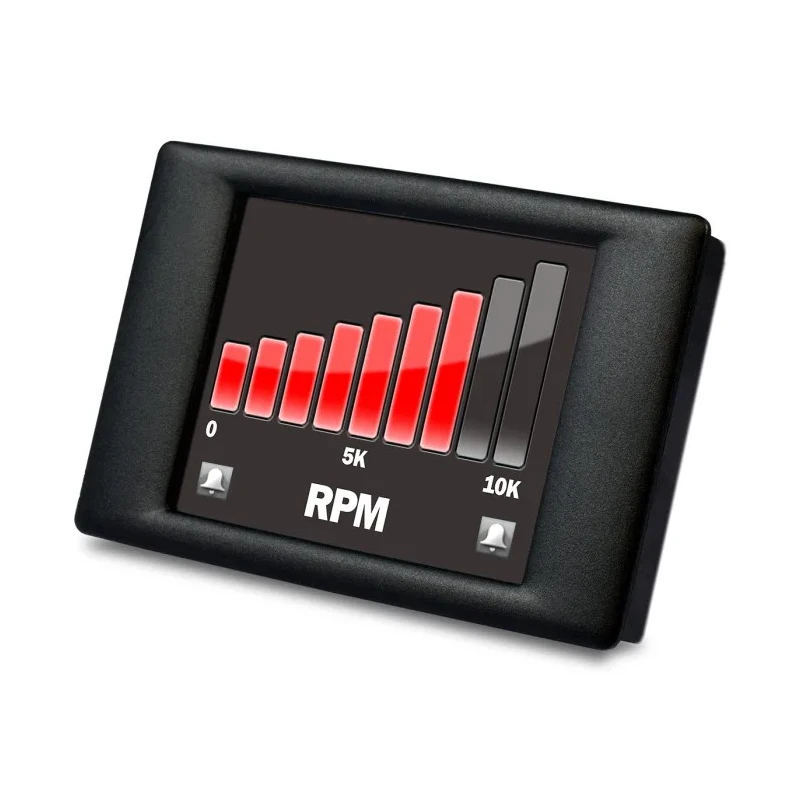

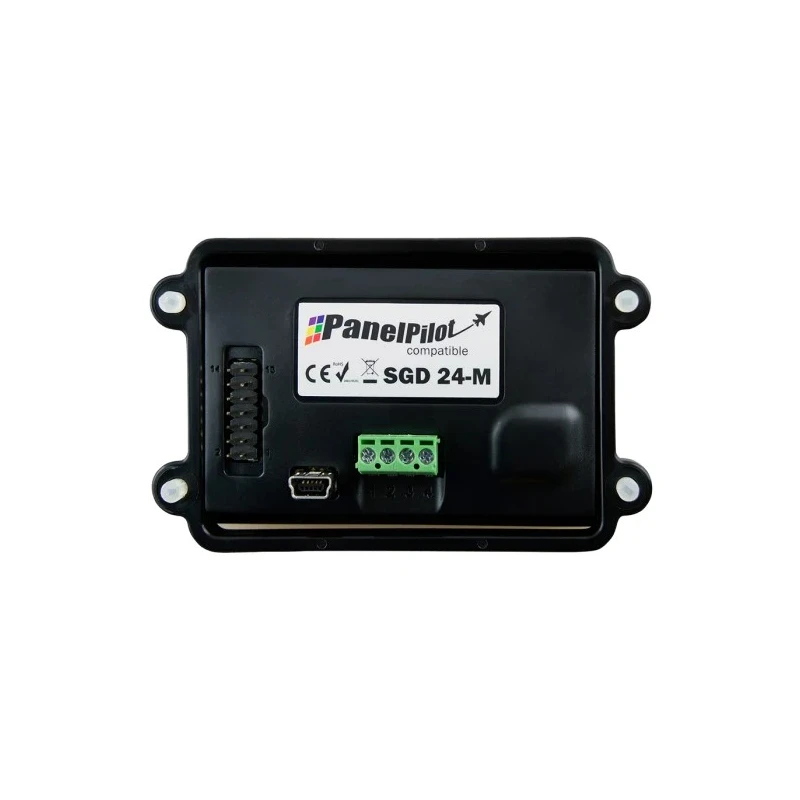

Lascar PanelPilot Digital Panel Multifunction Meter Voltage Measurement 46mm x 74mm 2.4" TFT USB Programmable SGD 24-M

Lascar SGD 24-M Digital Panel Multifunction Meter is a precision instrument designed for voltage measurement applications in industrial, laboratory, and automation environments. Featuring a compact 46 mm x 74 mm panel cutout and slim 16.4 mm depth, the meter integrates seamlessly into control panels and instrumentation setups.

The 2.4 inch colour touchscreen TFT display provides a clear and intuitive interface, allowing users to visualize voltage readings via multiple configurable formats including bar graphs, analogue styles, tank level, and trend graphs. Programming is facilitated via a USB interface using PanelPilot software compatible with Windows platforms. This allows customization of display colors, text labels, splash screen, and input voltage scaling to suit specific application needs.

The meter supports a wide operating DC voltage range from 4V to 30V and can measure voltages up to a maximum of 240V, with a typical measuring range from 0 to 40V DC. It includes dual analogue inputs and alarm outputs enabling versatile monitoring and alerting capabilities.

With a robust design meeting ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, this meter is ideal for demanding environments including medical and healthcare equipment, process control and automation, scientific instruments, automotive systems, energy management, HVAC, and various industrial equipment.

The device features a 2.4" colour TFT screen providing excellent visibility. Easily programmed via USB using dedicated PanelPilot software. Wide operating voltage range of 4V to 30V DC for flexible deployment. Measures DC voltage from 0 to 40V with high accuracy and reliability.

Compact panel cutout dimensions of 46 mm height by 74 mm width. Slim depth of 16.4 mm allows flush panel mounting. Operates within 0°C to 40°C temperature range for typical industrial environments. Dual analogue inputs with configurable alarm outputs enhance functionality.

China manufactured product, condition new.

This multifunction meter offers versatile digital measurement solutions essential for precise voltage monitoring and control across applications such as industrial automation, HVAC, medical instrumentation, and scientific laboratories. Its programmability and compact form factor make it a practical choice for panel installations requiring reliable digital voltage indication.
