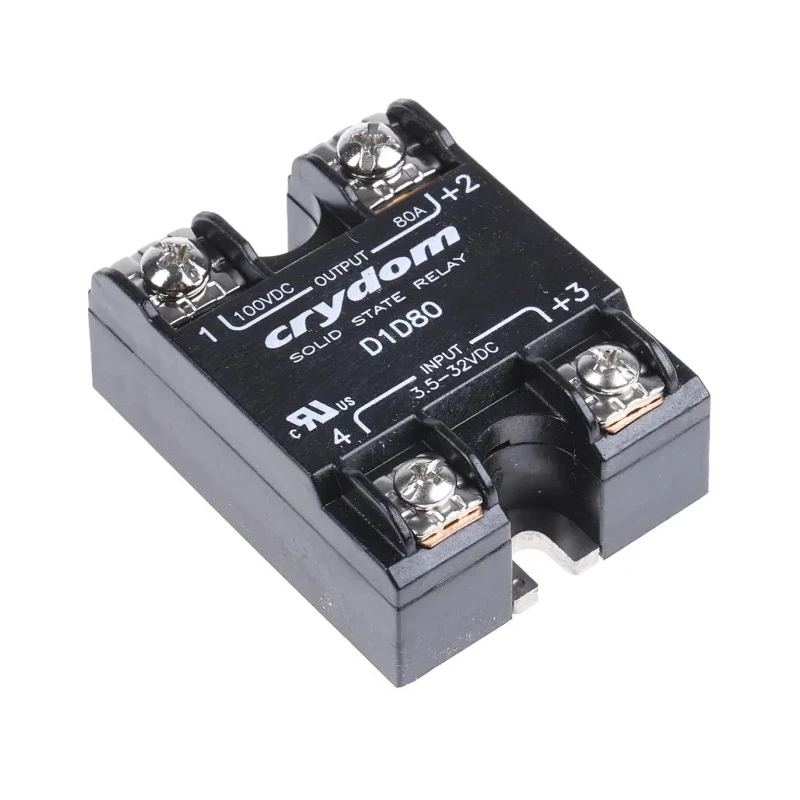

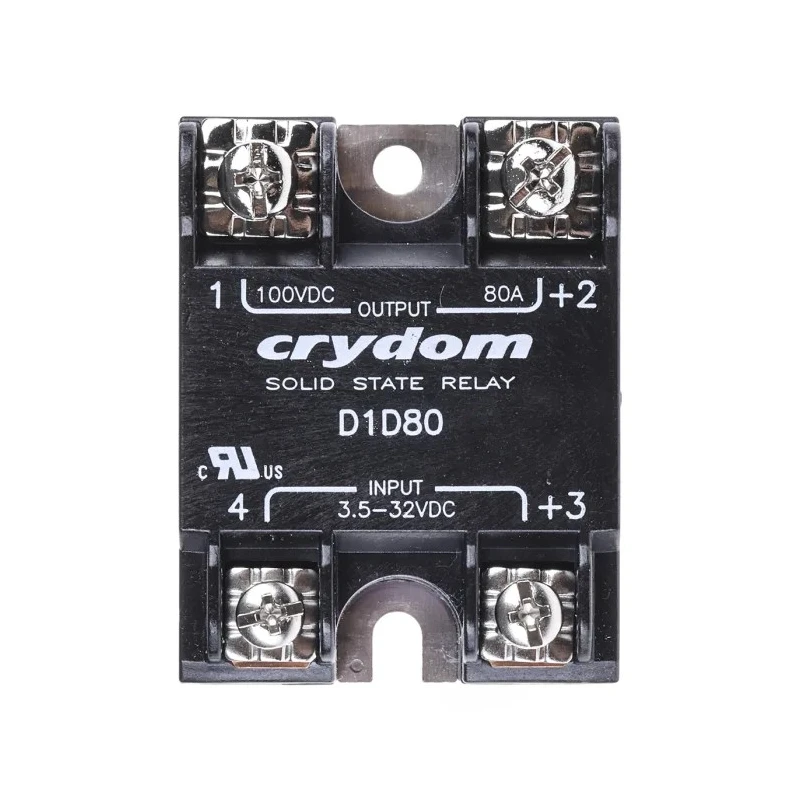

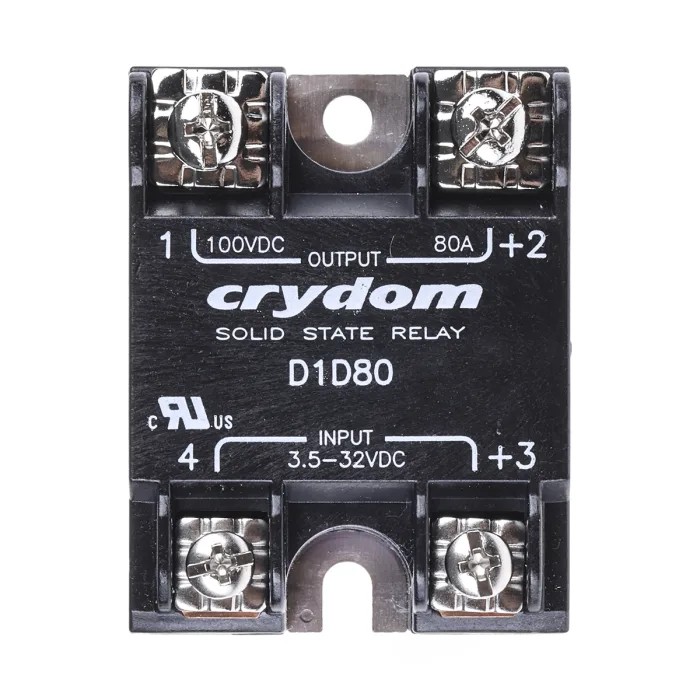

Crydom 1-DC Series Solid State Relay Surface Mount 80A Load Current 100V Load Voltage 3.5-32V Control D1D80
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 22.9mm |
| Length | 58.4mm |
| Model | D1D80 |
| Width | 22.6mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | 1-DC |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST-NO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | DC Switching |
| Maximum Load Current | 80A |
| Standards/Approvals | UL, CE, RoHS, EMC, cLR US |
| Maximum Load Voltage | 100V |
| Minimum Load Voltage | 0V dc |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.2mA |
| On State Resistance | 8mΩ |
Key Features
- Rated for a maximum load current of 80 amperes.
- Supports load voltages up to 100 volts DC.
- Surface mount with clearly labelled inputs and outputs for easy installation.
- Control voltage range from 3.5 to 32 volts DC.
- MOSFET output type ensures reliable and fast switching.
- Operating temperature range from -30°C to 80°C for harsh environments.
- On state resistance is low at 8 milliohms to reduce energy loss.
- Complies with UL, CE, RoHS, EMC, and cURus standards for safety and quality.
Product Description
Crydom D1D80 1-DC Series Solid State Relay offers robust DC switching capability with an 80 amp rated load current and 100 volt load voltage in a surface mount format. Designed for industrial and automation applications, this relay features MOSFET output for rapid switching with on/off times under 100 microseconds, making it highly suitable for fast-moving robotics, motor control, and instrumentation.

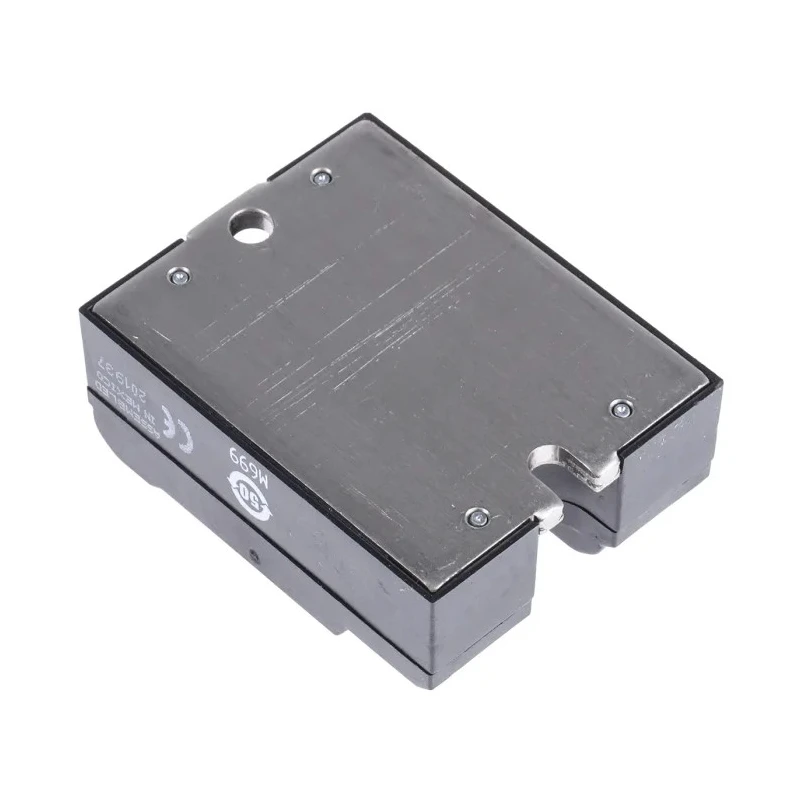

The device operates reliably over a broad temperature range from -30°C to 80°C, with a flame-retardant housing that limits burning to under 10 seconds during fires, and an aluminium baseplate that improves corrosion and impact resistance. Its screw terminal design with labelled input/output facilitates straightforward surface mounting and wiring.
Control voltage range spans 3.5 to 32 volts DC, compatible with low voltage control circuits. The relay’s low on-state resistance of 8mΩ minimizes energy loss and heat development, while leakage current is minimal at 0.2mA, ensuring efficiency.
Dimensions of 58.4mm in length, 22.9mm in height, and 22.6mm in width enable compact integration in control panels and electronic assemblies. This relay meets key standards including UL, CE, RoHS, EMC, and cURus, ensuring compliance for various industrial and commercial uses.
Rated maximum load current of 80 amperes for demanding DC switching. Supports load voltages up to 100 volts DC. Surface mount design with labelled screw terminals for ease of installation. Wide control voltage range from 3.5V to 32V DC.
MOSFET output enables fast and reliable switching operations. Operating temperature range of -30°C to 80°C suitable for harsh environments. Flame-retardant, corrosion-resistant aluminium housing enhances safety and durability.
Compact size allows efficient PCB and panel integration. Meets UL, CE, RoHS, EMC, and cURus certifications.
This solid state relay is ideal for use in industrial automation systems, motor controls, robotics, instrumentation, and other precision electrical switching applications. Explore more Crydom Solid State Relays and related control gear at EnvMart for reliable automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 80 amperes.
The control voltage range for this model spans from 3.5 to 32 volts DC.
It supports load voltages up to 100 volts DC.
This relay features a MOSFET output type, which ensures reliable and fast switching.
The dimensions of this unit are 58.4mm in length, 22.9mm in height, and 22.6mm in width.
It operates reliably over a temperature range from -30°C to 80°C.
The on-state resistance is low at 8 milliohms, which helps reduce energy loss.
This model is designed for surface mounting and features clearly labelled screw terminals for easy installation.
It complies with UL, CE, RoHS, EMC, and cURus standards for safety and quality.
The off-state leakage current is minimal at 0.2mA, ensuring efficiency during operation.
This solid state relay is ideal for use in industrial automation systems, motor controls, robotics, and instrumentation.
The relay features a flame-retardant housing that limits burning to under 10 seconds during fires, enhancing safety in harsh environments.
