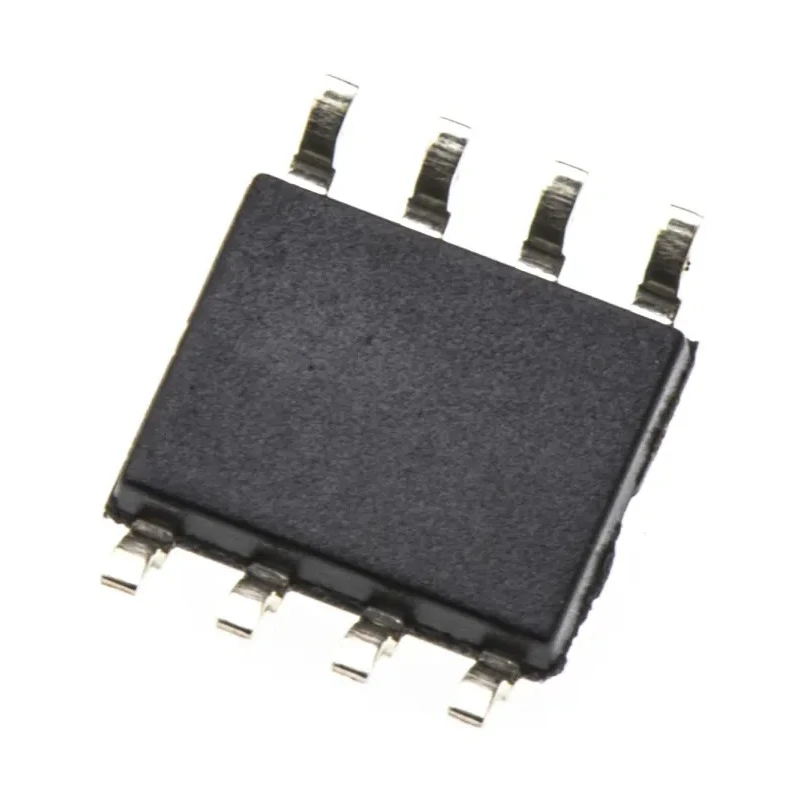

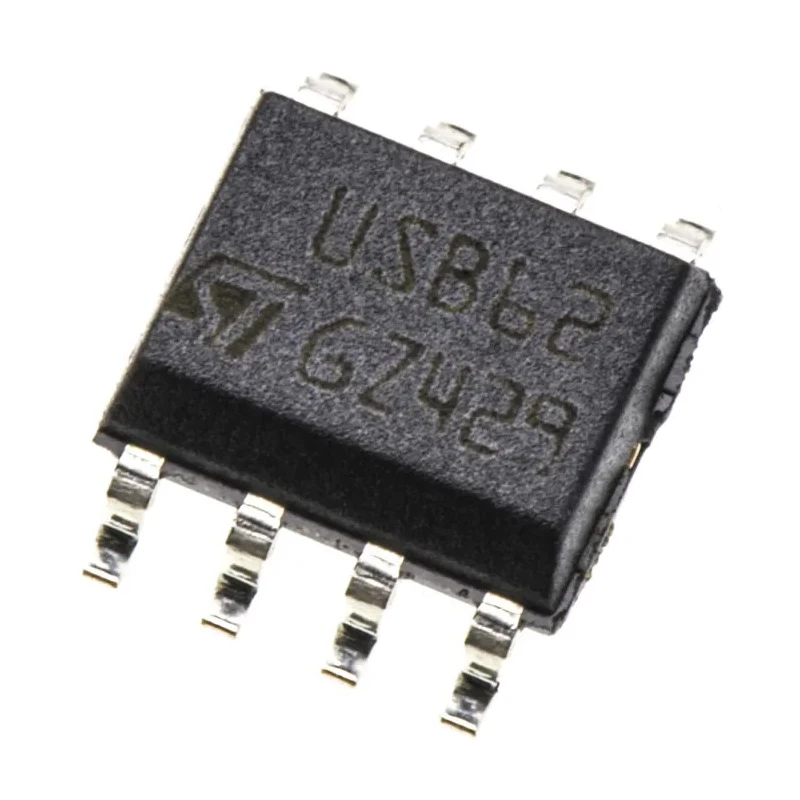

STMicroelectronics 2-Element Bi-Directional TVS Diode Array 500 W, 8-Pin SOIC USB6B1RL
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 5mm |
| Model | USB6B1RL |
| Width | 4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Diode Configuration | Complex Array |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5.2V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 40A |
| Maximum Reverse Leakage Current | 10μA |
| Electrostatic Discharge (ESD) prtotection for | DVI, HDMI, IEEE1394, USB, Ethernet & video lines |
Key Features
- Provides bi-directional transient voltage suppression for sensitive circuits.
- Peak pulse power dissipation of 500 watts for robust protection.
- Compact 8-Pin SOIC surface mount configuration suitable for PCBs.
- Operates reliably within temperature range -40°C to 85°C.
- Designed to protect data lines including DVI, HDMI, IEEE1394, USB, Ethernet, and video signals.
- Ultra-low capacitance ensures minimal impact on signal integrity.
- Conforms to IEC61000-4-2 level 4 electrostatic discharge standard.
- Maximum peak pulse current rating of 40 A for transient surge tolerance.
Product Description
STMicroelectronics USB6B1RL is a 2-element bi-directional transient voltage suppression (TVS) diode array designed to provide robust protection against electrostatic discharges and transient voltage spikes. It can dissipate peak pulse power of up to 500 W, making it suitable for safeguarding sensitive electronic components in various industrial and commercial electronics applications.
The device features a complex array diode configuration with bi-directional protection, ideal for use on serial data buses such as DVI, HDMI, IEEE1394, USB, Ethernet, and video lines. Its ultra-low capacitance characteristics minimize signal distortion while maintaining excellent ESD protection to IEC61000-4-2 Level 4 standards.
The USB6B1RL is housed in a compact 8-pin SOIC package, designed for surface mounting on printed circuit boards, with dimensions of 5 mm in length, 4 mm in width, and 1.25 mm in height. It supports a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5.2 V, providing stable operation across a wide temperature range from -40°C to 85°C.
Bi-directional TVS diode array with 2 elements per chip for comprehensive protection. Rated peak pulse power dissipation of 500 W to handle high transient voltages. Surface mount 8-pin SOIC package optimized for compact electronic assemblies.
Excellent protection for high-speed data and video lines with low capacitance. Designed to comply with rigorous electrostatic discharge standards for industrial reliability.
This TVS Diode Array is commonly used in the manufacturing of industrial, communication, and computing equipment requiring reliable transient voltage suppression. Its robust design ensures long-term durability under harsh environmental conditions, safeguarding circuit integrity and enhancing device longevity.
Explore more electronic components and semiconductor solutions on EnvMart for advanced technology integration in your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The USB6B1RL has a peak pulse power dissipation of 500 watts, providing robust protection against transient voltage spikes.
This model operates reliably within a temperature range of -40°C to 85°C.
It is designed to protect data lines including DVI, HDMI, IEEE1394, USB, Ethernet, and video signals.
The USB6B1RL is housed in a compact 8-pin SOIC package with dimensions of 5 mm in length, 4 mm in width, and 1.25 mm in height.
The maximum reverse stand-off voltage for the USB6B1RL is 5.2 volts.
This TVS diode array features 2 elements per chip, providing bi-directional protection.
The maximum peak pulse current rating for the USB6B1RL is 40 A, allowing it to tolerate transient surges effectively.
The minimum breakdown voltage for this model is 6 volts.
This model is designed for surface mounting on printed circuit boards (PCBs).
The USB6B1RL conforms to IEC61000-4-2 level 4 electrostatic discharge standards, ensuring reliable protection.
The maximum reverse leakage current for this diode array is 10 μA.
The USB6B1RL is manufactured in India.
