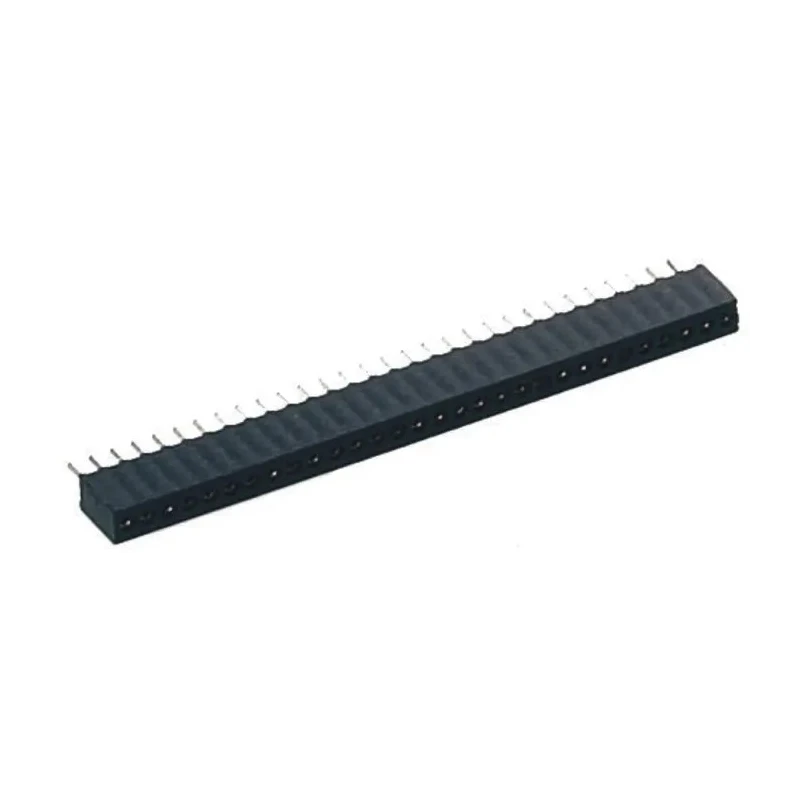

Preci-Dip 12 Way Preci-Dip Straight Through Hole 1.27 mm Pitch SIL Socket 100 V ac, 150V dc, Solder, 1A 851-87-012-10-001101

Preci-Dip 851-87-012-10-001101 12 Way SIL Socket is a high-quality straight through hole connector featuring a 1.27 mm pitch designed for precise and reliable solder termination on circuit boards. This Swiss-manufactured component is engineered for industrial, electronic, and manufacturing applications requiring dependable signal and power connections.

The socket incorporates 12 individual contacts made from beryllium copper alloy and brass, offering excellent electrical conductivity and mechanical resilience. Contact surfaces are plated with tin and gold to provide superior resistance to corrosion and ensure long-term electrical performance.

Designed for through hole mounting, this SIL Socket ensures robust physical attachment to PCBs, suitable for electronic assemblies subjected to mechanical stress or vibration. The housing is made from fibreglass reinforced polycyclohexylenedimethylene terephthalate, providing high mechanical strength and thermal resistance.

This connector supports operating voltages of 100 V AC and 150 V DC, with a current rating of 1 ampere, making it suitable for moderate power electronic circuitry. Its operational temperature range from -55°C to 125°C further enhances its utility in harsh environmental conditions.

Physical dimensions of the socket include a length of 15.65 mm, a depth of 4.1 mm, and a width of 2.2 mm, enabling compact electronic design while maintaining accessibility for soldering connections.

12 contacts constructed from beryllium copper alloy and brass ensure durability and conductivity. Contact plating with tin and gold guards against corrosion and signal loss. Fibreglass reinforced housing offers mechanical strength and thermal stability.

Through hole solder termination guarantees secure and lasting PCB mounting. Supports 100 V AC and 150 V DC voltages alongside a 1A current rating. Wide temperature operating range of -55°C to 125°C for diverse environments.

This product is ideal for electronics manufacturing, industrial automation, instrumentation, and humidity-resistant PCB applications. The precision engineering from Preci-Dip supports high-reliability electronic connectors that meet rigorous quality standards.
