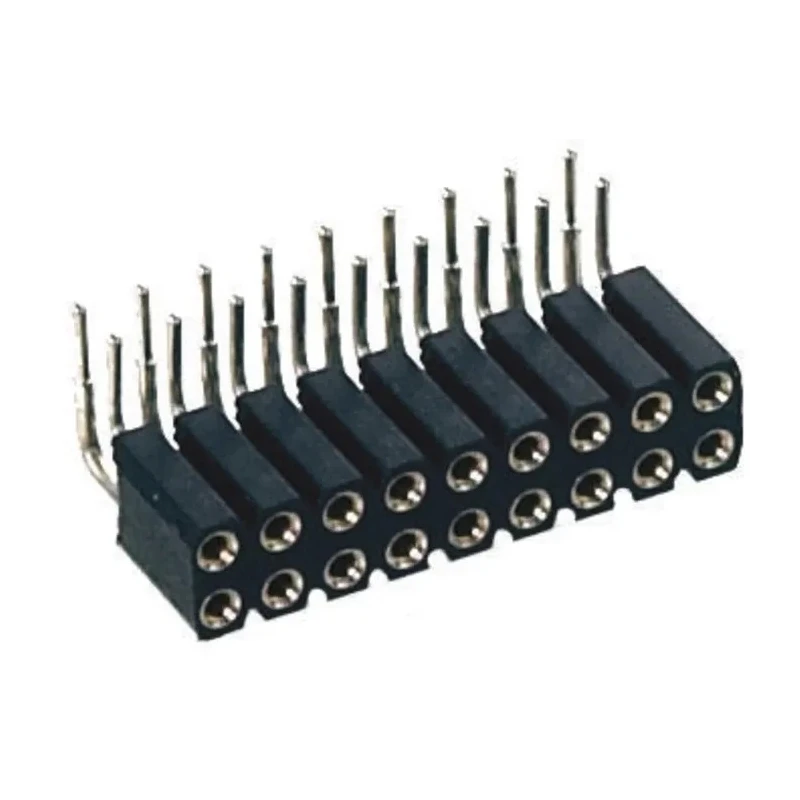

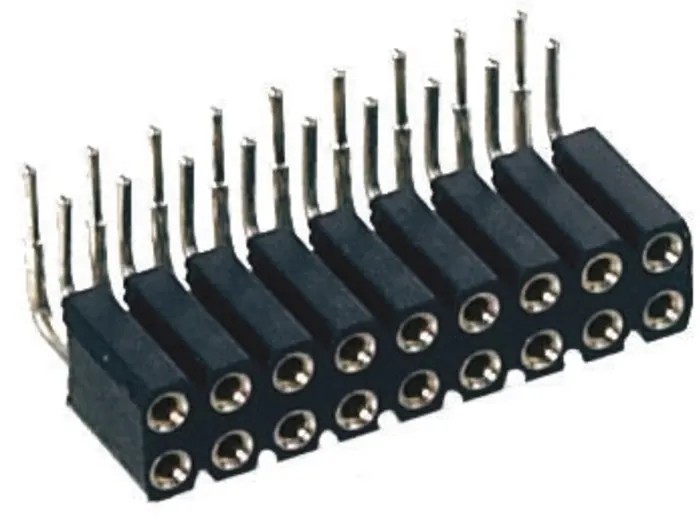

Preci-Dip 803 Series Right Angle PCB Socket, 8-Contact, 2 Row, 2.54 mm Pitch, Solder Termination 803-87-008-20-001101

Preci-Dip 803-87-008-20-001101 Right Angle PCB Socket is a high-quality electronic component designed for reliable board-to-board connections. This socket features 8 female contacts arranged in 2 rows with a 2.54 mm pitch, making it suitable for applications demanding precise and robust signal transmissions. The right angle orientation allows space-efficient mounting on printed circuit boards (PCBs).

The socket housing is constructed from black glass filled polyester, offering excellent mechanical strength and electrical insulation. Contacts are made from beryllium copper alloy, featuring a gold flash plating to ensure optimal conductivity and corrosion resistance.

Operating within a wide temperature range from -55°C up to 125°C, this component is ideal for diverse industrial and electronic applications. It supports a maximum operating voltage of 150 V and a current capacity of 12 A, meeting stringent performance requirements.

This 803 series PCB socket supports solder type termination and is part of a comprehensive connector system designed for board-to-board integration. Manufactured in Switzerland, it assures quality consistent with industrial standards.

Features a right angle orientation suitable for PCB mounting. Includes 8 female contacts arranged in 2 rows. Pitch spacing is 2.54 millimeters for board-to-board connection. Housing made from black glass filled polyester for durability.

Contact material uses beryllium copper alloy with gold flash plating. Rated voltage of up to 150 volts and current carrying capacity of 12 amperes. Operates reliably between -55°C to 125°C temperature range. Designed for board-to-board connector system with solder termination.

Manufactured in Switzerland to high standards without specific certifications listed.

This PCB Socket is highly suitable for use in industrial electronics, telecommunications, computing equipment, laboratory instruments, and manufacturing assemblies requiring durable and precise socket connections. It enhances production efficiency by supporting reliable and space-optimized PCB integration.
