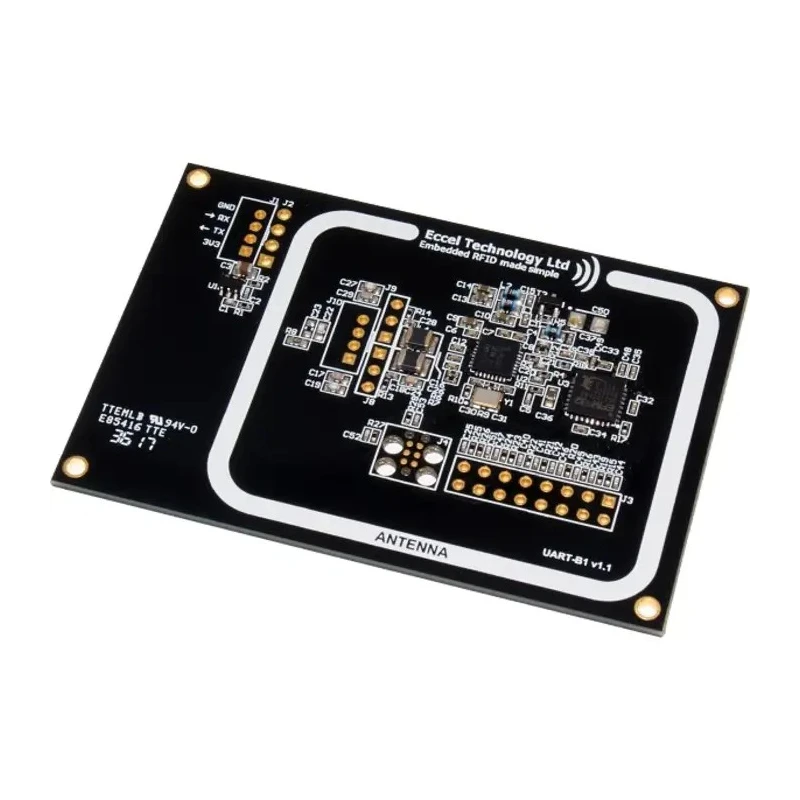

Eccel Technology Ltd RFID Reader 13.56 MHz 3.6V UART Interface Chilli-UART-B1 (000371)
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Frequency | 13.56MHz |
| Brand | Eccel Technology Ltd |
| Length | 50mm |
| Model | Chilli-UART-B1 (000371) |
| Width | 75mm |
| Mount Type | Panel |
| Series | UART-B1 |
| Maximum Operating Temperature | 85°C |
| Sub Type | RF Module |
| Minimum Operating Temperature | -25°C |
| Component Type | Reader |
| Interface Type | UART |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.5V |
| Maximum RF Data Rate | 921600bps |
Key Features
- Operates at a frequency of 13.56 MHz with a maximum RF data rate of 921600 bps.
- Supports multiple ISO14443A compatible transponders including Mifare Classic and DESfire.
- Minimum operating voltage of 2.5 V and maximum supply voltage of 3.6 V.
- Designed for panel mounting with 50 mm length and 75 mm width.
- Includes integral antenna and LED for tag indication and interrupts.
- Operates within -25°C to 85°C temperature range.
- Complies with RoHS environmental standards.
- Ideal for seamless integration of RFID capability in electronic designs.
Product Description
Eccel Technology Ltd Chilli-UART-B1 (000371) is a compact, low-cost RFID reader and writer module operating at 13.56 MHz frequency, designed for communication via UART interface. It supports reading and writing data for a variety of tag types including Mifare Classic 1k & 4k, NTAG2xx, Ultralight, Mifare Plus, and DESfire as well as any transponder compatible with the ISO14443A standard.
This RFID reader module measures 50 mm in length and 75 mm in width, features a panel mounting mount type, and includes an integral antenna with an LED for clear field and tag presence indication or interrupts. It is powered with a minimum voltage requirement of 2.5 V and supports up to 3.6 V supply voltage, suitable for low-power embedded applications.
The device operates over a wide temperature range from -25°C to 85°C, ensuring stable performance in various industrial and environmental conditions. It adheres to RoHS directives, making it compliant with environmental regulations.
The Chilli-UART-B1 is ideal for adding RFID/NFC functionalities quickly and efficiently, suitable for applications in industrial automation, access control, asset tracking, and electronic design where UART communication protocols are preferred.
Supports multiple ISO14443A compatible RFID tags including Mifare Classic, NTAG2xx, and Ultralight. Maximum RF data rate of 921600 bps for fast communication. Compact and panel-mountable form factor with mounting and flexible plated connection holes.
Equipped with an integral antenna and visible LED tag indication. Wide operating temperature range from -25°C to 85°C for versatile application environments. Complies with RoHS for environmental safety. Designed in the United Kingdom with high-quality standards.
Explore more RFID readers and modules in our Electronics & Electricals section to enhance your industrial or electronic projects with reliable RFID solutions.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Chilli-UART-B1 operates at a frequency of 13.56 MHz.
It supports a maximum RF data rate of 921600 bps.
This model operates within a temperature range of -25°C to 85°C.
It has a minimum operating voltage of 2.5 V and a maximum supply voltage of 3.6 V.
The Chilli-UART-B1 uses a UART interface for communication.
This model measures 50 mm in length and 75 mm in width.
It is designed for panel mounting.
Yes, it complies with RoHS environmental standards.
It includes an integral antenna and an LED for tag indication and interrupts.
It was designed in the United Kingdom.
It is suitable for applications in industrial automation, access control, asset tracking, and electronic design.
