Eccel Technology Ltd MIFARE RFID Module 13.56 MHz 4-5V Low Power TTL Interface RWD-MIFARE

Free Delivery in India | Lowest Global Shipping Charges

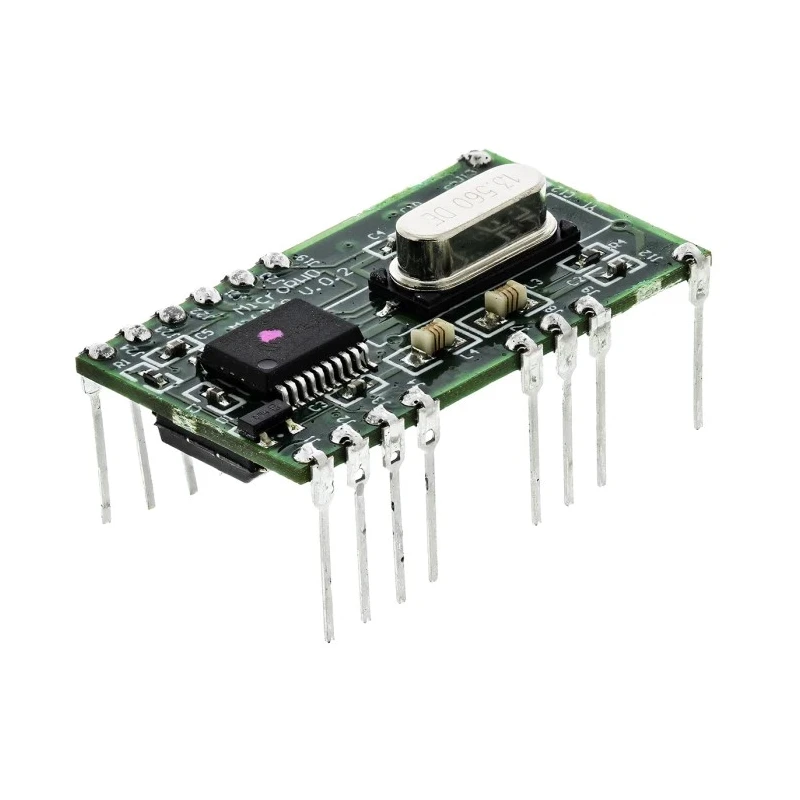

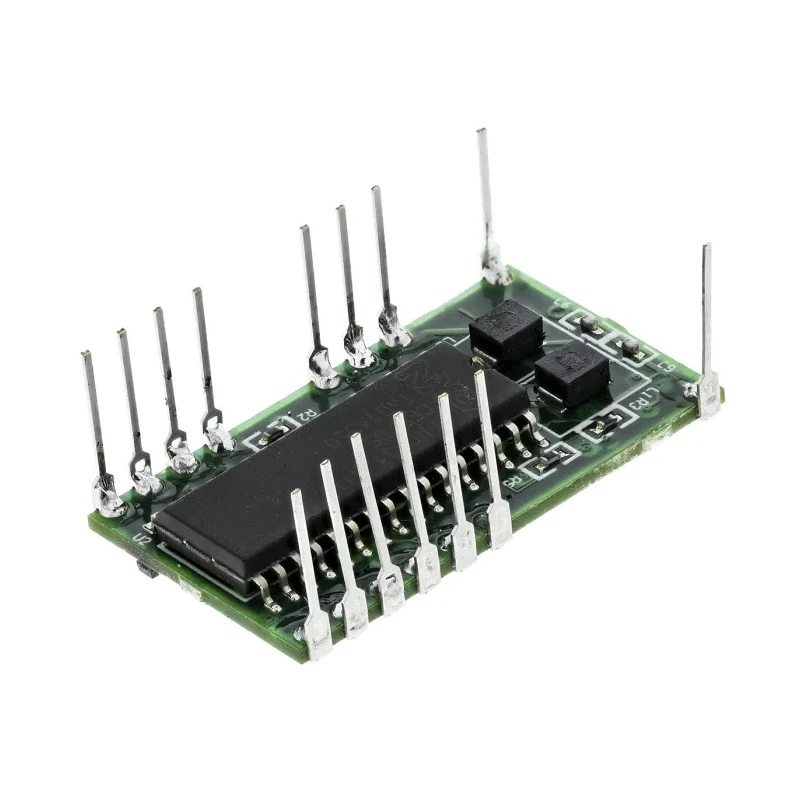

Eccel Technology Ltd MIFARE RFID Module 13.56 MHz 4-5V Low Power TTL Interface RWD-MIFARE

Name: Eccel Technology Ltd MIFARE RFID Module 13.56 MHz 4-5V Low Power TTL Interface RWD-MIFARE
Brand: Eccel Technology Ltd
SKU: 124260
Price: 20.22 USD
Availability: InStock



Category RF Modules Brand Eccel Technology Ltd Condition New

Specifications

Country of Origin	United Kingdom
Frequency	13.56MHz
Brand	Eccel Technology Ltd
Length	30.5mm
Model	RWD-MIFARE
Width	18mm
Series	MIFARE
Maximum Operating Temperature	85°C
Sub Type	Low Power Version
Minimum Operating Temperature	-40°C
Component Type	Module
Interface Type	TTL
Standards/Approvals	ISO14443A
Maximum Supply Voltage	5V
Minimum Supply Voltage	4V
Maximum RF Data Rate	106kbps
Eccel Technology Ltd RFID-A1 (00319) RFID Module 13.56 MHz 3.6VBrand	Eccel Technology Ltd
RF Solutions RFID3-13R5VUSB RFID Module 13.56 MHz 5VBrand	RF Solutions

Key Features

The module supports ISO14443A standard for RFID communication.
Maximum RF data rate is 106 kbps ensuring efficient data transmissions.
Operating temperature ranges from -40°C to 85°C, suitable for diverse environments.
Compact dimensions of 30.5 mm length and 18 mm width enable easy PCB integration.
Equipped with a simple RS-232 interface and 24-pin DIL PCB mounting for convenient installation.
Supports read and write operations with up to 10 cm range on 13.56 MHz frequency.
Designed as a complete RF transponder requiring connection to a coil antenna.

Product Description

Eccel Technology Ltd RWD-MIFARE RFID Module RWD-MIFARE is a low power RFID transponder module operating at a frequency of 13.56 MHz with a supply voltage between 4V and 5V. It uses a TTL interface for communication and complies with the ISO14443A RFID standard, making it suitable for contactless identification and data transfer applications.

This module is designed to perform full read and write functions at fast baud rates up to 106 kbps. Its compact size with dimensions 30.5 mm in length and 18 mm in width allows easy integration into electronic systems.

Designed for industrial and commercial use, it features a 24-pin DIL PCB mounting and a simple RS-232 interface suitable for connection to microcontrollers or computer systems. The module requires connection to a coil antenna for operation and provides an effective read range up to 10 cm at 13.56 MHz frequency.

Operating reliably across a wide temperature range of -40°C to 85°C, this RFID module is ideal for industrial automation, security access control, inventory management, asset tracking, and other RFID applications in harsh environments.

Supports ISO14443A RFID standard communication. Low power operation with supply voltage from 4V to 5V. Compact 30.5 mm by 18 mm form factor with 24-pin DIL PCB mount. Simple TTL interface and RS-232 compatible communication.

Fast data rate up to 106 kbps for efficient read/write. Operation temperature range -40°C to 85°C. Requires coil antenna connection for RFID transponder functionality. Up to 10 cm effective read/write distance at 13.56 MHz frequency.

This RFID module from Eccel Technology Ltd provides reliable wireless identification for applications including industrial automation, access control, and asset tracking. Its robust design, efficient data transfer, and broad operating conditions ensure dependable performance in demanding industrial and commercial environments.
