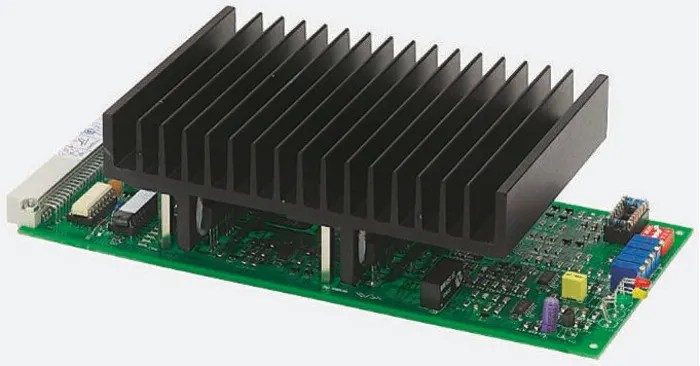

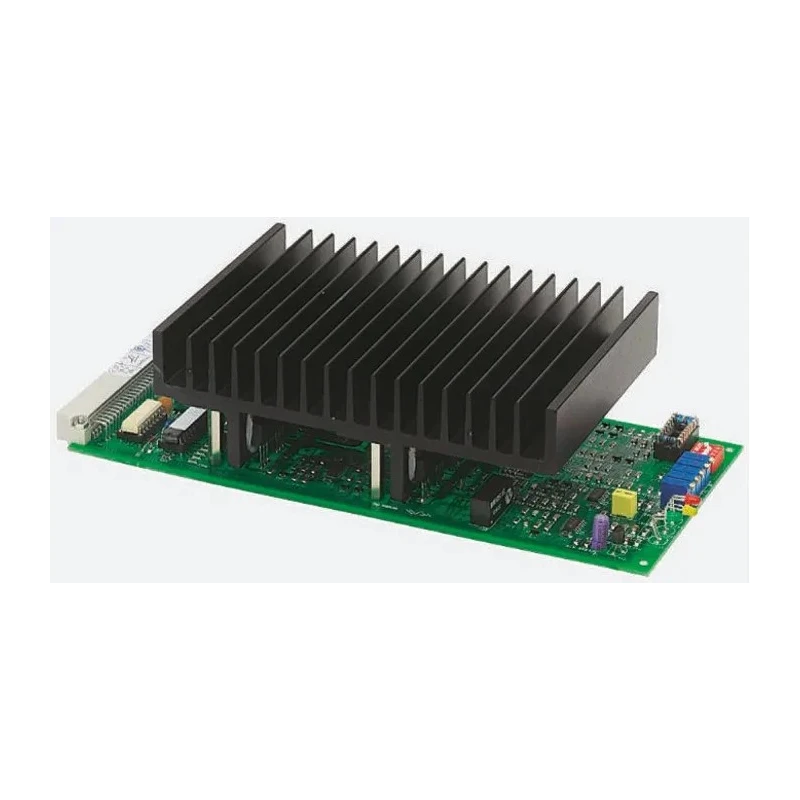

McLennan Servo Supplies Amplifier Servo Drive for Use with Motor MSE421

McLennan Servo Supplies MSE421 Amplifier Servo Drive is designed for precise control of dc servo motors with a continuous output power rating up to 60W. Operating from a single rail supply, it allows battery operation if needed, enhancing versatility in mobile or remote applications.

The MOSFET based linear output stage offers several advantages including virtually zero electrical emissions, improved motor operation smoothness, and extended motor life. This amplifier is particularly suitable for low inductance motors without requiring additional choke components.

Engineered with surface mount technology on a standard extended Eurocard, the MSE421 provides a compact, high-reliability platform for servo drive applications. The differential amplifier input stage supports adjustable peak output currents up to 4A, allowing fine-tuning of motor performance.

Users can select velocity control modes via armature voltage sensing or tacho feedback. The amplifier further includes options for torque or positional control with analogue positional feedback, enhancing its flexibility across various industrial automation tasks.

For improved motor start-up smoothness, the MSE421 features an automatic velocity ramp function that responds to stepped input signal changes. The integrated diagnostic LED display facilitates quick status checks and troubleshooting.

This servo drive is ideal for industrial, automation, manufacturing, and laboratory motor control applications, supporting high precision and reliability standards. Operates from a single rail supply for battery operation capability.

MOSFET linear output stage reduces electrical noise and motor wear. Adjustable peak current of up to 4A supports various motor sizes. Velocity control selectable via armature voltage or tacho feedback. Optional torque and positional control using analogue feedback.
