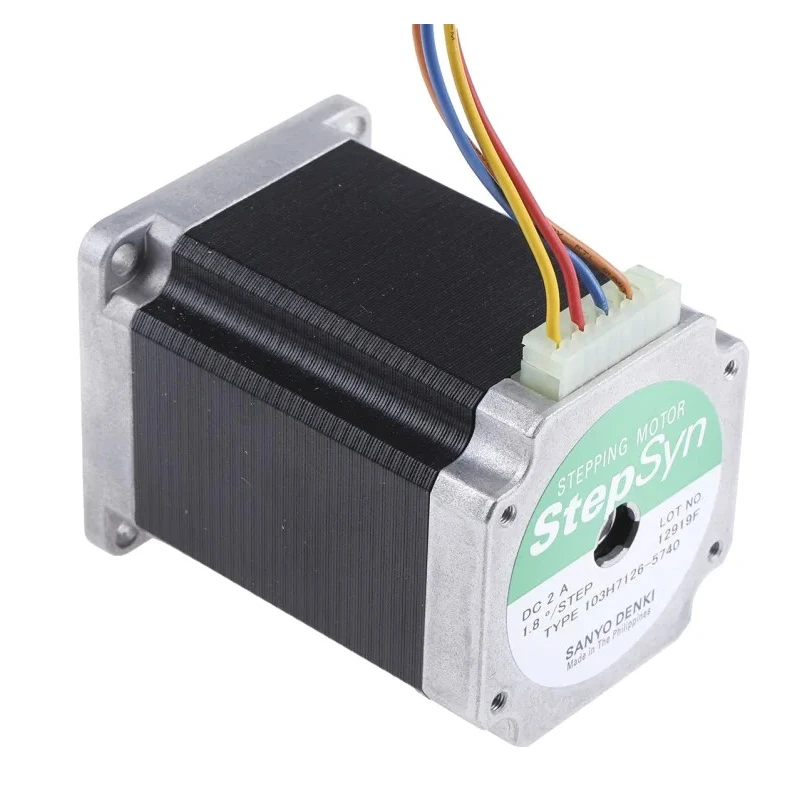

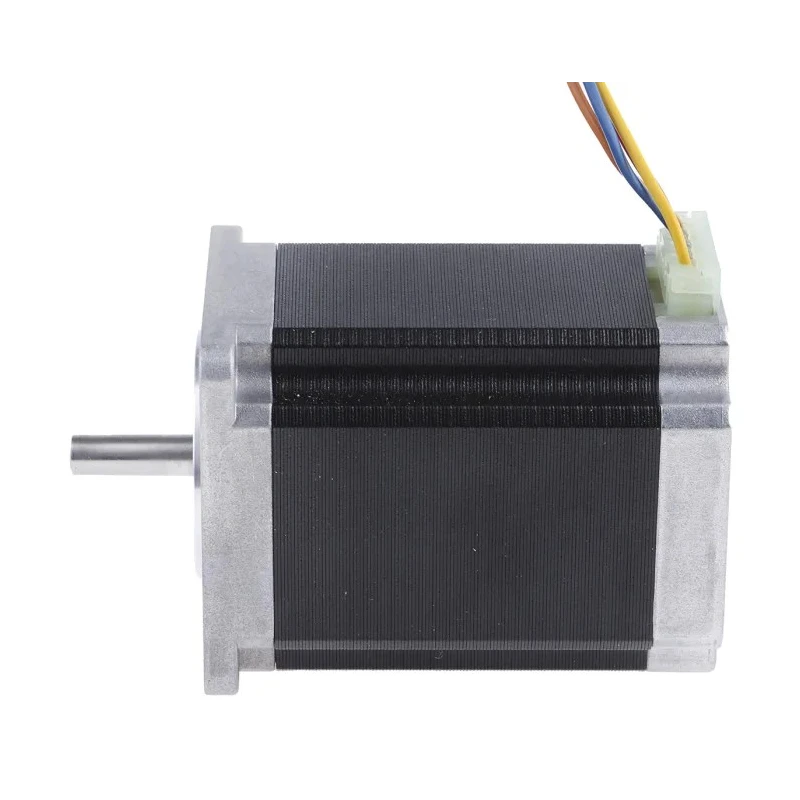

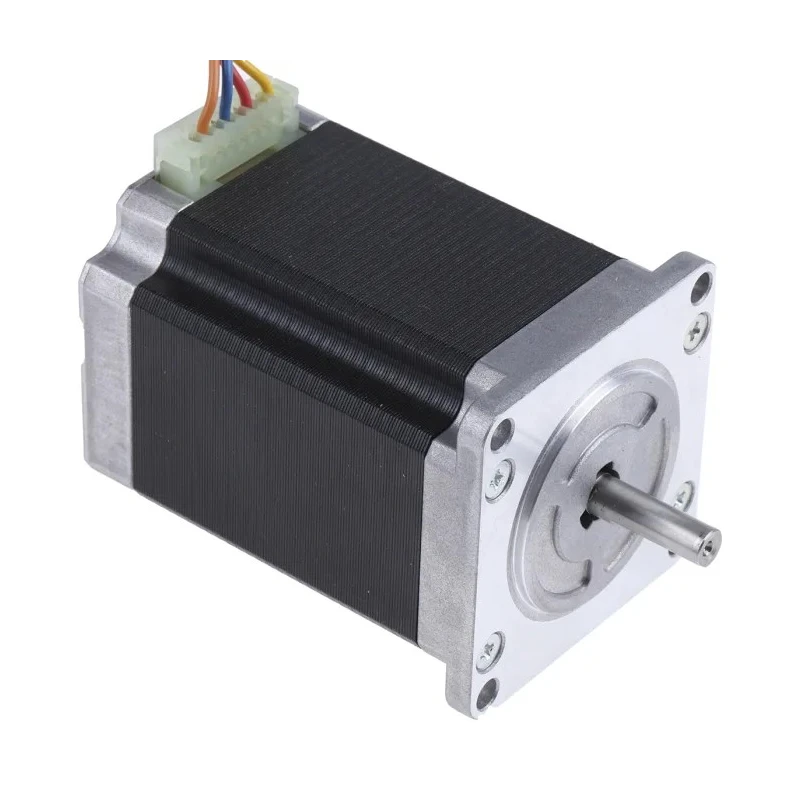

McLennan Servo Supplies 103H7 Series Stepper Motor 24V, 1.6Nm Holding Torque, 1.8° Step Angle, 56 x 56 mm 103H7126-5740
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 24V |
| Brand | McLennan Servo Supplies |
| Model | 103H7126-5740 |
| Depth | 77.3mm |
| IP Rating | IP43, IP40, IP65 |
| Current Rating | 2A |
| Series | 103H7 |
| Frame Size | 56 x 56 mm |
| Shaft Diameter | 6.35mm |
| Shaft Length | 20.6mm |
| Standards/Approvals | CE, RoHS Compliant, TUV, UL |
| Step Angle | 1.8° |
| Holding Torque | 1.6Nm |
| Winding Arrangement | Bipolar |
Key Features
- This model operates on 24V supply voltage for efficient performance.
- The bipolar winding arrangement ensures smooth and reliable operation.
- 56 x 56 mm frame size with a 6.35 mm diameter shaft supports versatile mounting.
- Shaft length of 20.6 mm enhances compatibility with various couplings.
- IP ratings provided include IP43, IP40, and IP65 for environmental protection.
- The motor depth is 77.3 mm, offering a compact design for space-constrained applications.
- Certified with CE, RoHS, TUV, and UL standards assuring quality and compliance.
- Manufactured in the Philippines, ensuring trusted production quality.
Product Description
Sanyo Denki 103H7126-5740 stepper motor is a high-precision electric motor designed for industrial automation and control applications. Operating at 24V with a 1.6Nm holding torque and a 1.8° step angle, it provides accurate and reliable positioning essential for robotics, CNC machinery, and manufacturing equipment.
This bipolar winding stepper motor features a compact 56 x 56 mm frame size and a 6.35 mm diameter shaft with a length of 20.6 mm, facilitating straightforward mechanical integration. The motor depth of 77.3 mm contributes to its suitability for applications with limited space.
Engineered to withstand various environmental conditions, it offers IP protection levels IP43, IP40, and IP65, making it adaptable for industrial, laboratory, and HVAC settings. The adherence to CE, RoHS, TUV, and UL standards ensures reliable performance and compliance with global safety and environmental regulations.
Made in the Philippines, this 103H7 Series Stepper Motor is part of a comprehensive product range that supports both unipolar and bipolar winding schemes, with single and double round shaft designs, aiming to cover diverse application requirements.
This motor operates on a 24V voltage providing sufficient power for precise control. Withholding torque of 1.6Nm, it can securely hold positions under load. The 1.8° step angle allows for fine motion steps and accurate positioning.
Bipolar winding enhances smooth torque delivery and control response. Multiple IP ratings enable protection in various operating environments. Dimensions and shaft specifications ensure compatibility with a wide range of mounting options.
Certified approvals guarantee product reliability and safety compliance. Ideal for use in industrial automation, manufacturing, robotics, and HVAC systems. Explore more Stepper Motors and related automation components at EnvMart for optimized performance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this model is 1.6Nm, providing secure positioning under load.
This stepper motor features a step angle of 1.8°, allowing for fine motion steps and accurate positioning.
The motor has a frame size of 56 x 56 mm and a depth of 77.3 mm, making it suitable for compact applications.
It operates on a supply voltage of 24V, providing efficient performance for various applications.
The shaft diameter is 6.35 mm with a shaft length of 20.6 mm, facilitating compatibility with various couplings.
This model is rated IP43, IP40, and IP65, ensuring adaptability for different environmental conditions.
It features a bipolar winding arrangement, which enhances smooth torque delivery and control response.
It is certified with CE, RoHS, TUV, and UL standards, ensuring quality and safety compliance.
This model is manufactured in the Philippines, ensuring trusted production quality.
The current rating for this stepper motor is 2A, which is necessary for its operation.
It is ideal for industrial automation, robotics, CNC machinery, and HVAC systems, supporting precise control.
The compact design, with a depth of 77.3 mm, allows for installation in space-constrained environments, enhancing versatility.
