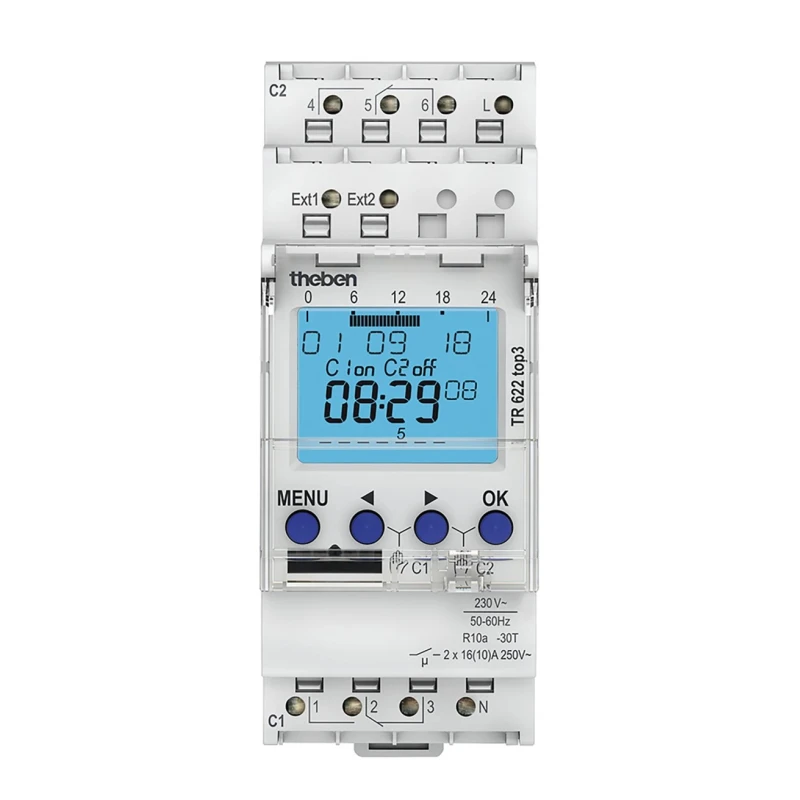

Theben Digital DIN Rail Time Switch 2-Channel 230V ac Top3

Theben TR622 TOP 3 is a digital DIN Rail time switch designed for industrial automation, electrical, and process control applications requiring reliable and programmable 2-channel switching at 230V ac supply voltage.

This device features a weekly programmable digital timer with 84 memory locations enabling complex on/off scheduling for lighting, heating, and other electrical load controls. The DuoFix spring terminal technology supports easy wiring with conductors ranging from 0.5 to 2.5 mm², ensuring secure, tool-less connections on DIN rails.

The SPDT contact configuration allows flexible switching schemes, compatible with a range of industrial load types. Equipped with a 10-year lithium battery power reserve, the switch maintains settings and operates independently of mains power, enhancing reliability during power interruptions.

The switch includes zero-cross switching functionality, significantly prolonging relay life and enabling high lamp load switching (except with 24V devices), essential for facility management and energy-saving systems.

Various switching programs are supported, including pulse, cycle, countdown timers, permanent on/off mode, and switching preselection, meeting broad industrial timing needs. An integrated operating hour counter and reset capabilities aid in maintenance scheduling and operational monitoring.

Certified to meet RoHS, VDE, and EN 60 730-1 standards, this time switch ensures compliance and safety in industrial environments. Its compact form factor with dimensions 128.2 mm height and 76.2 mm depth is optimized for standard DIN rail mounting systems.

This time switch is manufactured in Germany, reflecting high-quality engineering and durability for demanding industrial and commercial applications. Environmentally conscious users benefit from the long battery life and energy saving switching methods incorporated.

Explore Theben time switches category for advanced automation and control gear solutions suited to industrial, HVAC, water treatment, manufacturing, and commercial sectors. Features a weekly programmable digital timer with 84 memory spaces for versatile scheduling.

Equipped with DuoFix spring terminals supporting 0.5 to 2.5 mm² wire diameters. Utilizes SPDT contact configuration for reliable switching operations. Operates independently with a 10-year lithium battery life ensuring long-term reliability.

Incorporates zero-cross switching to reduce relay wear and support high lamp loads. Offers multiple switching modes including ON-OFF, pulse, cycle, countdown, and permanent switching. Includes an integrated operating hour counter and reset option for maintenance tracking.

Preset date and time with text-oriented user display guidance. Designed conforming to RoHS, VDE, and EN 60 730-1 standards for industrial safety and compliance. Compact dimensions of 128.2mm height and 76.2mm depth optimize DIN rail mounting space.

Browse EnvMart's Industrial Automation Systems category for Theben brand Time Switches to meet diverse process control requirements.
