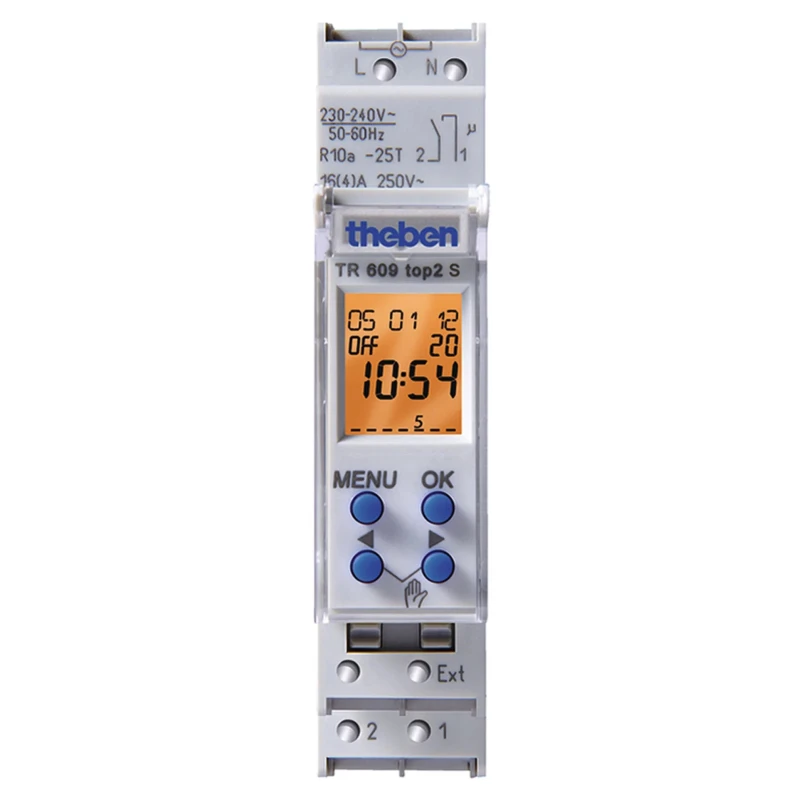

Theben Digital DIN Rail Time Switch 240V ac TR609

Theben TR609 Digital DIN Rail Time Switch is a precision device designed for automation and process control applications operating at 240V AC. Featuring a single channel and 84 memory slots, it supports a wide range of time-based functions including pulse programs, cycle programs, countdown timers, and random programs. The device can interface with external sensors and switches to expand operational flexibility.

Its robust DuoFix spring terminal design supports two conductors per terminal, allowing for secure wiring with or without wire end sleeves. The switch incorporates a text-oriented user guidance system displayed on an easy-to-read screen, enabling full operability without mains connection through preset date and time. An OBELISK top2 memory card interface allows PC-based programming for ease of use, program copying, and storage.

The built-in 10-year lithium battery ensures a long power reserve, maintaining function during supply interruptions. Features include switching preselection, permanent on/off switching, an integrated operating hour counter for monitoring maintenance cycles, holiday program, PIN coding for security, and automatic summer/winter time changeover with options to adapt data rules for different regions including Europe and the USA.

This DIN Rail time switch is compliant with international standards such as VDE, RoHS, and EN 60 730-1, reflecting its quality and reliability. The device is manufactured in Germany under the TR609 Top series.

Programmable digital time switch with weekly schedule functionality. Supports external sensors and selectors for flexible control. 84 programmable memory spaces enabling complex cycles and countdowns. 10-year lithium battery for reliable power reserve and uninterrupted operation.

DuoFix spring terminals accommodate dual conductors for secure wiring. Automatic summer/winter time adjustment with option to disable. Integrated operating hour counter for maintenance monitoring. PIN code security to prevent unauthorized access.

Text-guided user interface for easy configuration without mains power. Complies with VDE, RoHS, and EN 60 730-1 standards ensuring quality and safety.

This Time Switch is essential for industrial automation, process control, HVAC systems, and electrical installations requiring precise and reliable time management. Browse EnvMart for comprehensive automation and electrical system components.
