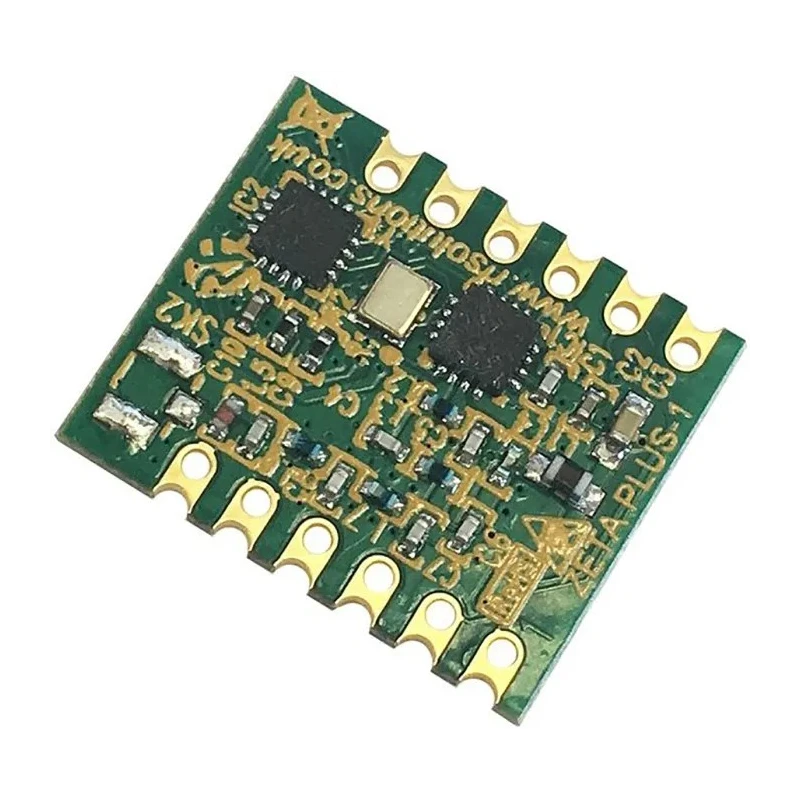

RF Solutions RF Module Transceiver FM 868 MHz 3.6V ZETAPLUS-868-SO

RF Solutions ZETAPLUS-868-SO RF Module Transceiver operates at FM 868 MHz with a supply voltage from 1.8V to 3.6V, providing efficient wireless communication solutions. This miniature smart RF transceiver module features an integrated battery voltage detector equipped with an 11-bit ADC to monitor power status accurately. Its low power consumption design allows 10 mA in receive mode, 18 mA in transmit mode, and 0.5 nA in standby mode, optimizing energy efficiency for battery-powered applications.

The module supports serial communication interfaces including SPI and UART, facilitating easy integration into various electronic projects and products. The RF matching network is highly tuned to achieve a communication range of up to 2 kilometers, making it suitable for industrial and commercial wireless systems. It features a 64-byte transmit/receive FIFO to streamline data handling.

Constructed on the Silicon Labs Si4455 transceiver platform, the ZETAPLUS-868-SO requires no external components or configuration, simplifying development and deployment. The module's compact size - 16.5 mm in length, 16 mm in width, and 1 mm in height - makes it ideal for space-constrained applications. Its through-hole mounting ensures reliable mechanical stability on circuit boards.

Operating reliably in harsh environments, it functions over a temperature range of -40°C to 85°C. Typical applications include industrial automation, remote controls, sensor networks, telemetry, security systems, and other wireless data communication tasks.

The module operates at 868 MHz frequency with FM modulation technique. It offers a maximum RF data rate of 500 kbps for efficient wireless communication. Power supply voltage ranges from 1.8 V to 3.6 V ensuring flexible operation.

Featuring a receiver sensitivity of -116 dBm for reliable signal reception. The compact module has dimensions of 16.5 mm length, 16 mm width, and 1 mm height. It supports through-hole mount type for easy PCB integration.

Operating temperature range is from -40°C to 85°C suitable for various environments. Includes SPI and UART serial interface for versatile connectivity options. Designed based on Silicon Labs Si4455 transceiver providing robust performance.

This RF module from RF Solutions is ideal for wireless telemetry, industrial communications, remote monitoring, and other applications requiring long range and low power consumption. For detailed technical guidance and integration assistance, browse related RF Modules and communication components in EnvMart.
