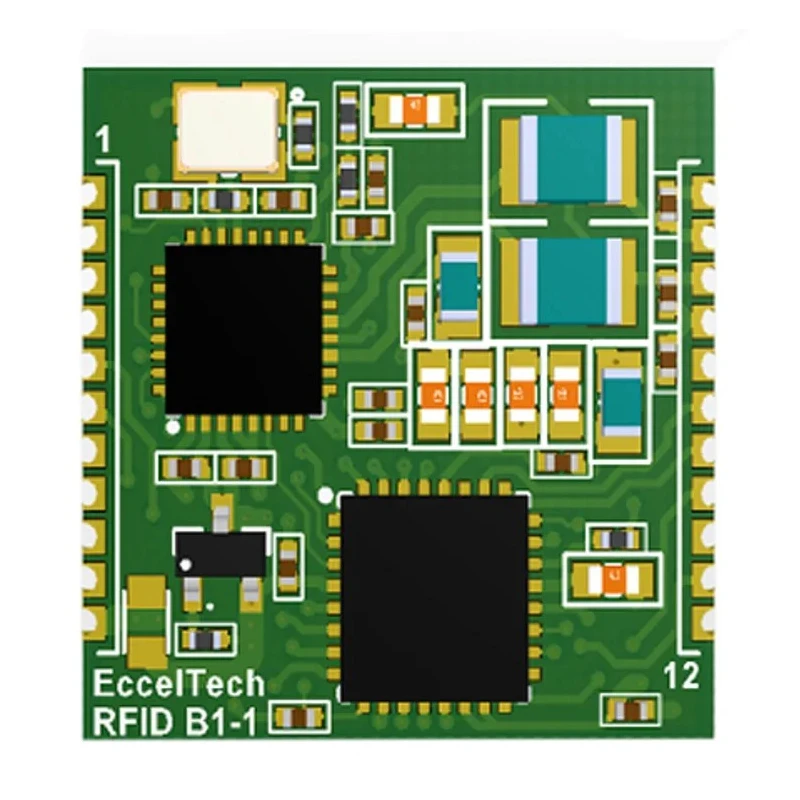

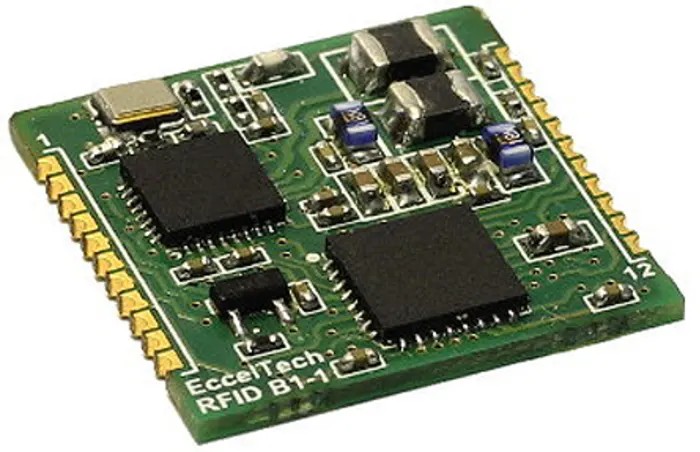

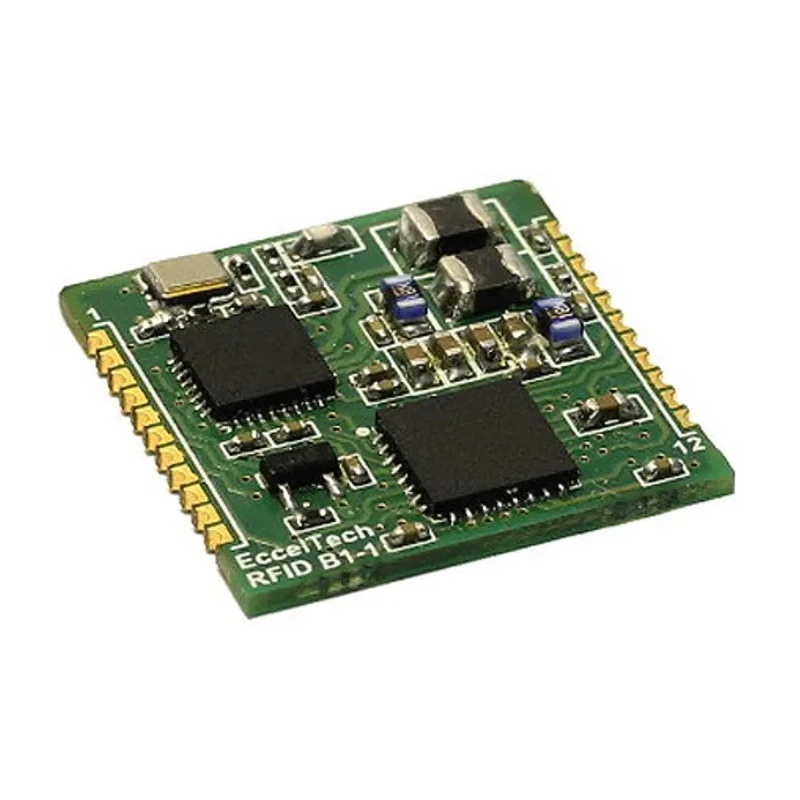

Eccel Technology Ltd RFID Module 13.56 MHz 3.6V RFID-B1(000323)

Eccel Technology Ltd RFID-B1(000323) RFID Module is a compact, high-performance 13.56 MHz RFID subassembly designed for embedded and computing platforms requiring RFID capabilities. Operating at 3.6 V, this surface mount module features a low-power ARM microcontroller that handles RFID configuration and provides a robust UART command interface with optional AES-128 encryption.

The module supports Mifare Classic, Ultralight, and NTAG2 transponders, delivering high read and write speeds ideal for demanding RFID applications. Its compact 20.32 mm x 20.06 mm form factor with castellated SMT pads allows easy and reliable PCB assembly. The design supports UART interface communication at baud rates up to 921600 bps, ensuring fast data transfer.

Outstanding thermal performance allows operation between -25°C and 85°C, suitable for various industrial environments. It integrates 4 configurable GPIO pins with interrupt capabilities, 3 PWM outputs, comparator, ADC, current output DAC, and multiple internal reference voltages. These features enable flexible application customization and integration.

The robust low-power design supports a supply voltage range from 2.5 V to a maximum of 3.6 V, making it efficient for battery-operated devices. The embedded AES-128 encryption engine ensures secure data transmission, protecting sensitive information against unauthorized access.

Key industrial use cases include access control systems, goods monitoring, consumable tracking and approval, pre-payment solutions, resource management, and connection-less data storage systems. This module is RoHS compliant, ensuring environmental and safety standards are met.

Operates at 13.56 MHz frequency with 921600 bps maximum RF data rate. UART interface with command set and optional AES-128 encryption. Compact surface mount design 20.32 mm length and 20.06 mm width. Low-power ARM microcontroller onboard for seamless configuration.

Wide operating temperature range from -25°C to 85°C. Multiple configurable GPIOs, PWMs, comparator, ADC, and DAC outputs. Single supply voltage range 2.5 V to 3.6 V for efficient power usage. Supports Mifare Classic, Ultralight, and NTAG2 transponders.

Applications include industrial access control, monitoring, and resource management. RoHS compliant ensuring regulatory compliance. Explore a wide range of RFID modules and related electronic components at EnvMart for advanced industrial and commercial applications.
