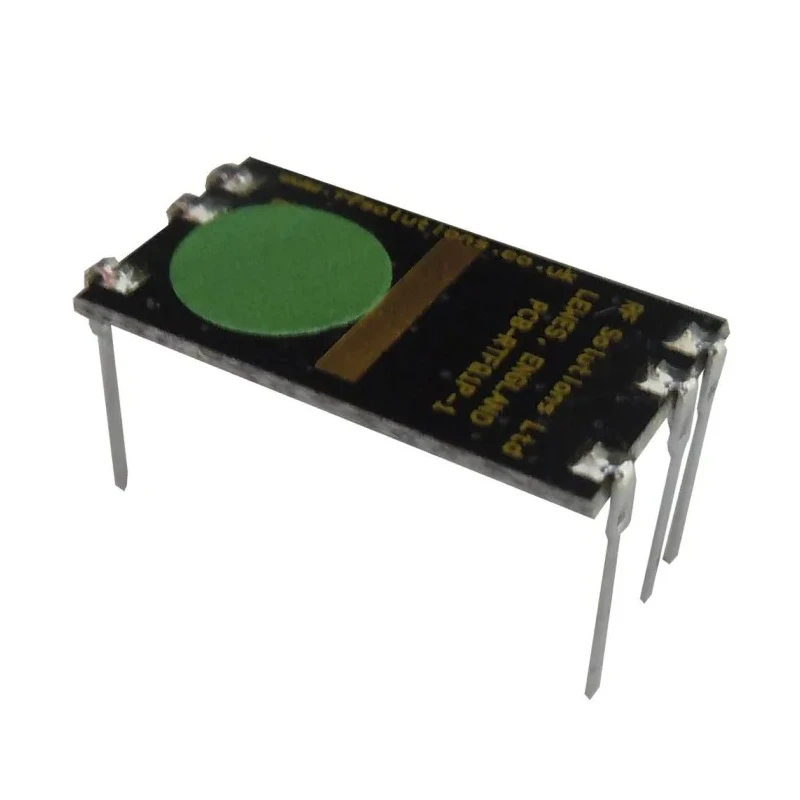

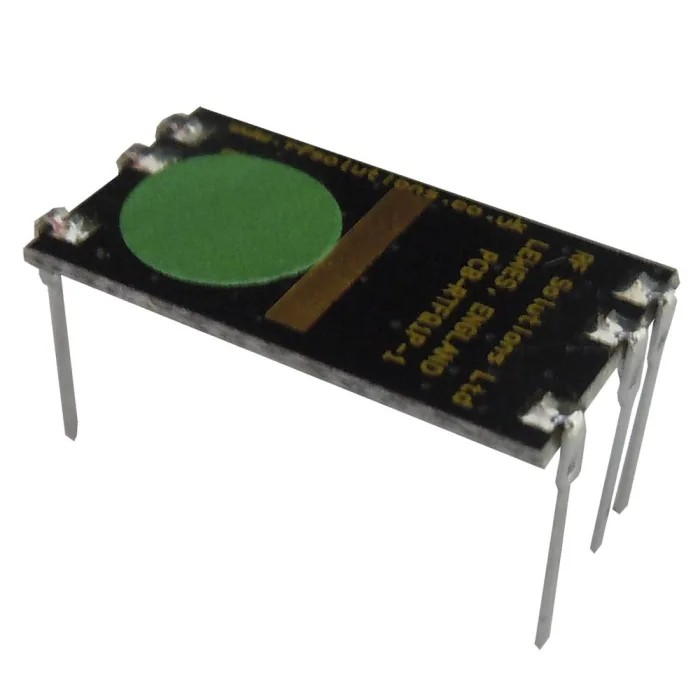

RF Solutions FM-RTFQ1A-433P FM Transceiver RF Module 433.92 MHz 4V Surface Mount FM-RTFQ1A-433P
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Frequency | 433.92MHz |
| Brand | RF Solutions |
| Height | 2mm |
| Length | 20.32mm |
| Model | FM-RTFQ1A-433P |
| Width | 11.43mm |
| Mount Type | Surface |
| Series | FM-RTFQ1A-433P |
| Maximum Operating Temperature | 85°C |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -20°C |
| Component Type | Module |
| Maximum Output Power | 50W |
| Maximum Supply Voltage | 4V |
| Minimum Supply Voltage | 2.1V |
| Modulation Technique | FM |
| Maximum RF Data Rate | 4.8kbps |
Key Features
- This surface mount module provides a stable and high performance FM radio data link.
- Maximum output power is 50W, supporting effective wireless communication.
- Maximum RF data rate capability is 4.8 kbps, suitable for low data rate applications.
- Operate reliably over an industrial temperature range from -20°C to 85°C.
- Compact module dimensions measure 20.32 mm length, 11.43 mm width, and 2 mm height.
- Manufactured using laser trimmed processes on thick film ceramic substrates for electronic stability.
- Ideal for applications such as car and building security, inventory tracking, and remote industrial process monitoring.
- Low power requirements make it suitable for portable battery-powered devices like hand-held terminals.
Product Description
RF Solutions FM-RTFQ1A-433P is a high performance FM transceiver RF module designed for wireless communication at 433.92 MHz frequency. This surface mount module operates at a supply voltage range of 2.1V to 4V, optimized for use in portable and battery-powered applications. It provides a reliable FM radio data link with a maximum output power of 50W and a maximum RF data rate of 4.8 kbps.
Manufactured using laser trimmed processes on thick film ceramic substrates, the module exhibits exceptionally stable electronic characteristics over a wide operating temperature range from -20°C to 85°C. The hybrid technology utilized ensures reliable operation without the need for adjustable components.
The compact form factor, measuring 20.32 mm in length, 11.43 mm in width, and 2 mm in height, makes the FM-RTFQ1A-433P suitable for integration into space-constrained electronic devices.
This module supports wireless communication distances up to 75 meters within buildings and up to 250 meters in open ground, making it ideal for applications such as car and building security systems, EPOS and inventory tracking, remote industrial process monitoring, and computer networking.
This module is suitable for industrial, commercial, and portable device applications requiring a cost-effective FM radio data link. Its low power consumption and compact size are well-suited for hand-held terminals and similar battery-powered devices.
The module’s laser trimmed thick film ceramic substrate construction ensures performance stability in varying environmental conditions. Country of origin for this module is the United Kingdom. It is delivered as a new product and meets no specific standards or approvals.
Explore more RF Modules and communication solutions within the Electronics & Electricals category at EnvMart for industrial automation and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FM-RTFQ1A-433P operates at a frequency of 433.92 MHz.
It has a maximum output power of 50W, enabling effective wireless communication.
The module supports a maximum RF data rate of 4.8 kbps, suitable for low data rate applications.
This model measures 20.32 mm in length, 11.43 mm in width, and 2 mm in height.
The FM-RTFQ1A-433P operates reliably over a temperature range from -20°C to 85°C.
It operates at a supply voltage range of 2.1V to 4V, making it suitable for battery-powered applications.
This module is designed for surface mounting.
It is ideal for applications such as car and building security, inventory tracking, and remote industrial process monitoring.
The module is manufactured using laser trimmed processes on thick film ceramic substrates, ensuring electronic stability.
This RF module utilizes frequency modulation (FM) for its communication.
The country of origin for this module is the United Kingdom.
