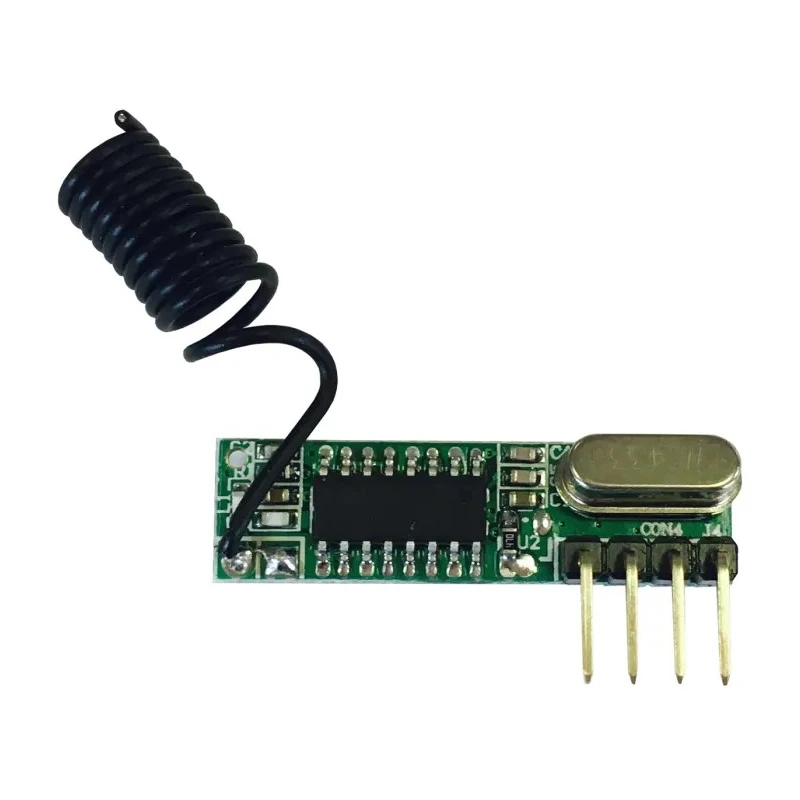

RF Solutions RF Module QAM-RX10-433 AM 433.92 MHz 5.5V

RF Solutions QAM-RX10-433 is a high-performance RF module designed for wireless communication operating at 433.92 MHz in the ISM band, featuring AM modulation and a maximum supply voltage of 5.5 V. It is a compact through-hole mount module intended for integration in security systems, remote gate controls, garage door controllers, and Internet of Things (IoT) short-range communication applications.

The module employs a Super Heterodyne Receiver with excellent receiver sensitivity of -123 dBm, enabling it to detect weak signals effectively within a range of up to 50 meters. The interface is CMOS/TTL, allowing straightforward serial communication with microcontrollers or codec chipsets such as the RF600 series for secure remote control implementations.

Operating performance is maintained across a wide temperature range from -25°C to 85°C making it suitable for industrial, home automation, and commercial environments. Its low power consumption design allows for efficient operation in battery-powered devices.

Its compact dimensions (3 mm length, 5 mm width, and 8.5 mm height) facilitate easy incorporation into various systems without adding bulk. The module supports data rates of up to 10 kbps, providing reliable and timely data transmission for telemetry and sensor data capture.

The module uses AM modulation technique for signal transmission. Operates in the 433.92 MHz ISM frequency band for short-range communication. Receiver sensitivity is -123 dBm, allowing reliable signal reception. Supports maximum RF data rate up to 10 kbps.

Interface type is CMOS/TTL compatible for easy microcontroller integration. Through hole mount type ensures robust mechanical connection. Range up to 50 meters suitable for remote controls and security systems. Operating temperature range from -25°C to 85°C ensures durable operation in various environments.

Compact size with length 3 mm, width 5 mm, and height 8.5 mm. Low power consumption suitable for battery-operated devices.

This module is widely used in RF remote controls, security alarms, IoT devices, data capture, and telemetry systems offering reliable performance in demanding industrial and commercial applications. Choose RF Solutions QAM-RX10-433 for effective wireless communication solutions.
