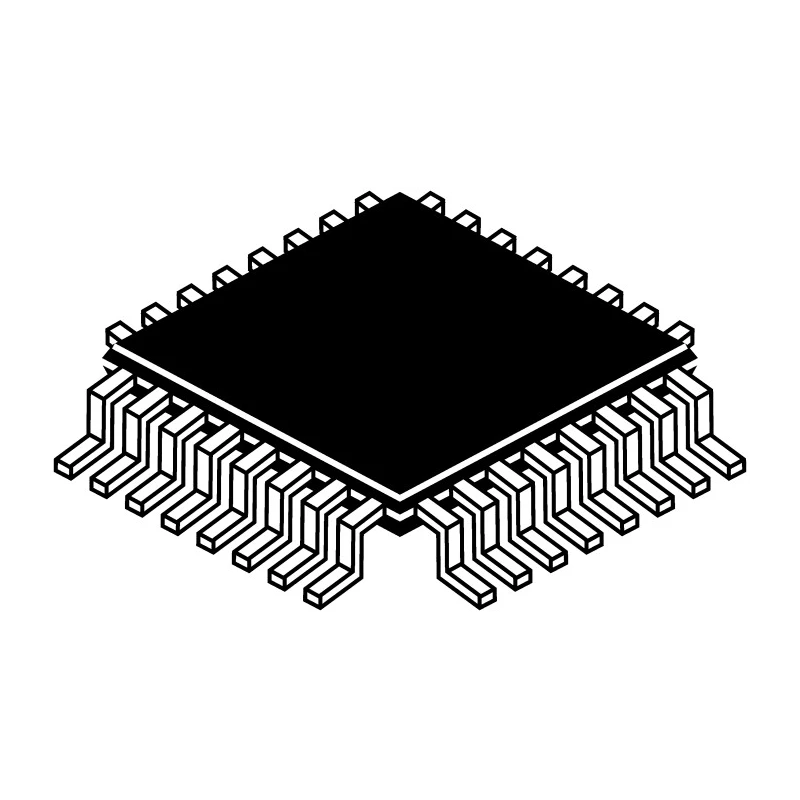

STMicroelectronics STM8L151K6 Surface Mount 32-Pin LQFP 8-Bit Microcontroller 16 MHz 32kB FLASH STM8L151K6T6 STM8
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 7.2mm |
| Model | STM8 |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM8L151K6 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 288mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | STM8 |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 41 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | CISC |
| ADCs | 22 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 12 Bit |
| STM8L101 | Lowest power mode 0.35μA, Dynamic run mode 150μA/MHz |
| STM8L151/152 | Lowest power mode 0.4μA, Dynamic run mode 192μA/MHz |
Key Features
- Ultra-low power consumption with lowest power mode of 0.4μA and dynamic run mode 192μA/MHz.
- Contains 2 kB RAM and 32 kB flash program memory.
- Equipped with 41 programmable I/O pins and 3 timers.
- Features 22 12-bit ADC channels and one 12-bit DAC.
- Operates over a voltage range of 1.8 V to 3.6 V with maximum power dissipation of 288 mW.
- Operating temperature range from -40°C to 85°C.
- Utilizes CISC instruction set architecture optimized for embedded applications.
Product Description
STMicroelectronics STM8L151K6T6 is an 8-bit microcontroller based on the STM8 core architecture equipped in a 32-pin LQFP surface mount package. It runs at a maximum clock frequency of 16 MHz and features 32 kB of Flash memory along with 2 kB of RAM, suitable for diverse embedded systems applications.
This microcontroller boasts ultra-low power consumption characteristics with a lowest power mode current of 0.4 μA and a dynamic run mode current of 192 μA per MHz, making it well suited for battery-powered and energy-sensitive designs.
The device includes 41 programmable input/output pins, 3 timers, 22 channels of 12-bit analogue-to-digital converters (ADCs), 2 analogue comparators, and a single 12-bit digital-to-analogue converter (DAC). It operates over a supply voltage range of 1.8 V to 3.6 V, with a maximum power dissipation of 288 mW, supporting robust performance within an operating temperature range of -40°C to +85°C.
Its compact package measures 7.2 mm x 7.2 mm x 1.45 mm, ideal for space-constrained applications. The microcontroller uses a Complex Instruction Set Computing (CISC) architecture optimized for embedded control tasks in various sectors including industrial automation, consumer electronics, and communication equipment.
Ultra-low power consumption with lowest power mode of 0.4 μA and dynamic run mode 192 μA/MHz. 32 kB Flash program memory and 2 kB RAM for efficient code and data storage. 41 programmable I/O pins allow flexible interfacing with peripherals.
Includes 22 channels of 12-bit ADCs and one 12-bit DAC for precise analogue signal processing. Operates across wide voltage range (1.8 V to 3.6 V) ensuring versatility. Compact 32-pin LQFP surface mount package for space-efficient assembly.
Supports operating temperatures from -40°C to 85°C suitable for harsh environments. CISC instruction set architecture enhances code efficiency and throughput.
This microcontroller is widely incorporated in embedded applications requiring low power consumption and efficient processing, such as IoT devices, consumer electronics, and automotive control systems.
Explore more Microcontrollers and semiconductor solutions at EnvMart for your next embedded system design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM8L151K6 microcontroller operates at a maximum clock frequency of 16 MHz.
It operates over a supply voltage range of 1.8 V to 3.6 V.
This model features 32 kB of Flash program memory.
The microcontroller is equipped with 2 kB of RAM.
It includes 41 programmable input/output pins.
The microcontroller features 22 channels of 12-bit analog-to-digital converters (ADCs).
The maximum power dissipation is 288 mW.
It operates within an environmental temperature range from -40°C to +85°C.
This microcontroller comes in a 32-pin LQFP surface mount package.
It includes 3 timers for various timing applications.
The STM8L151K6 utilizes a Complex Instruction Set Computing (CISC) architecture.
It includes 2 analog comparators and 1 12-bit digital-to-analog converter (DAC).
