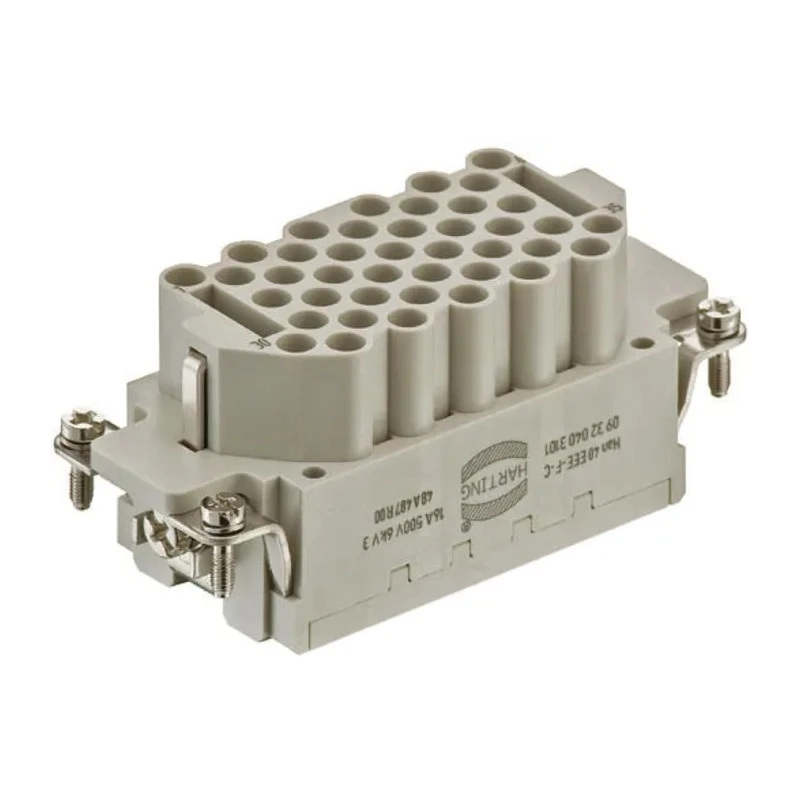

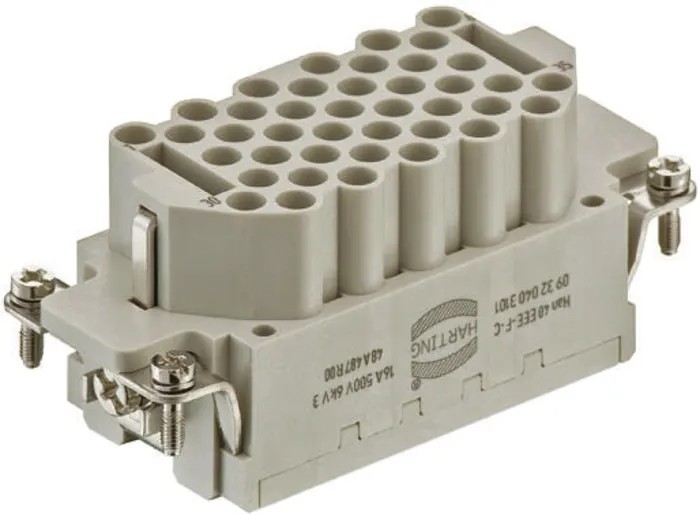

HARTING Heavy Duty Power Connector Insert 16A Han EEE Series Female 41 Contacts 09320403101

HARTING 09320403101 is a heavy duty power connector insert featuring 16A current rating and 500V voltage capacity, designed specifically for industrial applications requiring robust and reliable power connections. This female connector insert belongs to the Han EEE series and incorporates 41 contacts distributed across 5 rows for complex wiring configurations.

The connector is made using durable polycarbonate material, ensuring resistance against mechanical and environmental wear. Its IP65 rating guarantees protection against dust ingress and water jets, making it suitable for harsh and demanding environments in electrical engineering, manufacturing, and heavy machinery setups.

The design supports a cable mount type with straight orientation, facilitating straightforward assembly with the associated male connectors and housings, which are available in sizes 5 to 8 within the Han EE series. It accepts wire sizes from as small as 0.14 mm² to as large as 4 mm², allowing versatile applications across a range of electrical installations.

Safety precautions indicate that these connectors must not be mated or unmated under electrical load. The connector meets recognized approvals including UL, CSA, and SEV standards, reinforcing its suitability for industrial, commercial, and laboratory power distribution systems.

The product is compatible with a wide range of heavy duty power connectors and serves critical functions in power distribution panels, control cabinets, and automated machinery interfaces. It supports modular design by allowing contacts to be ordered separately for customized configurations.

Rated current capacity of 16 amperes for efficient power handling. 41 contact points organized in 5 rows for multi-contact wiring needs. 500V voltage rating and IP65 ingress protection for robust performance. Polycarbonate contact material ensures durability and electrical insulation.

Compatible with Han EE series hoods and housings sizes 5, 6, 7, and 8. Supports wire sizes ranging from 0.14 mm² to 4 mm². Installation requires connectors not to be mated/unmated under load for safety. Certified with UL, CSA, and SEV approvals for industrial compliance.

This Heavy Duty Power Connector Insert from HARTING is ideal for use in industrial, manufacturing, electrical distribution, and automation sectors. Explore more connectors and related accessories in the Electronics & Electricals category on EnvMart to complete your power connectivity solutions.
