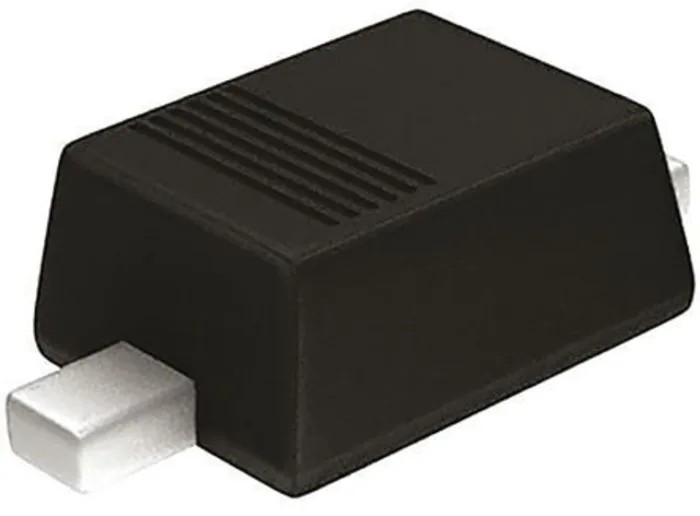

ROHM 30 V 10 mA Schottky Diode, Surface Mount, SOD-323FL Package RB510VM-30TE-17
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 1.8mm |
| Model | RB510VM-30TE-17 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | RB510VM |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323FL |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 10mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 0.3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 0.46V |
Key Features
- This diode features a low forward voltage (Vf) of 0.46 V ensuring energy efficient operation.
- It supports a maximum continuous forward current of 10 mA, suitable for low current applications.
- The peak reverse repetitive voltage rating is 30 V, providing robust reverse voltage protection.
- The construction includes a single-diode configuration with two pins for surface mounting.
- The package dimensions are compact with length 1.8 mm, width 1.35 mm, and height 0.9 mm, enabling space-saving PCB designs.
- It sustains a peak non-repetitive forward surge current of 500 mA, enhancing transient handling capability.
- The peak reverse current is very low at 0.3 μA, contributing to minimal leakage currents.
- Maximum operating temperature is rated at 150°C, allowing operation in demanding thermal environments.
Product Description
ROHM RB510VM-30TE-17 is a high reliability Schottky diode designed for surface mount applications, featuring a small mold package type SOD-323FL. It operates at 30 V peak reverse voltage and 10 mA continuous forward current, making it ideal for electronic circuits requiring efficient and reliable low-current rectification.
This diode provides a low forward voltage of 0.46 V, minimizing power loss and thermal output during operation. Its ultra-compact dimensions of 1.8 mm length, 1.35 mm width, and 0.9 mm height facilitate integration into compact electronic assemblies and densely packed PCBs.
The diode has a single-diode configuration with two pins arranged for surface mounting, easing automated assembly processes in modern electronics manufacturing. With a peak non-repetitive forward surge current rating of 500 mA, this diode can handle transient surges effectively, enhancing the durability and robustness of the circuits.
The maximum operating temperature of 150°C ensures stable performance under elevated thermal conditions typically encountered in industrial, telecommunications, automotive, and power supply applications.
While it does not carry specific automotive certifications, its small mold type (UMD2) design is suitable for many industrial and consumer electronic applications requiring high reliability and low voltage drop.
This diode's technical characteristics suit it for use in switching, rectifying, and clamping roles in electronic designs focusing on energy efficiency and compact form factors. Package contents typically include one piece of ROHM RB510VM-30TE-17 Schottky diode per unit unless otherwise specified by the distributor or bulk packaging.
Explore more semiconductor components in the Schottky Diodes & Rectifiers category on EnvMart for complementary devices and solutions to meet your electronic design requirements. This diode features a low forward voltage (Vf) of 0.46 V ensuring energy efficient operation.
It supports a maximum continuous forward current of 10 mA, suitable for low current applications. The peak reverse repetitive voltage rating is 30 V, providing robust reverse voltage protection. The construction includes a single-diode configuration with two pins for surface mounting.
The package dimensions are compact with length 1.8 mm, width 1.35 mm, and height 0.9 mm, enabling space-saving PCB designs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum continuous forward current of 10 mA, making it suitable for low current applications.
The package dimensions are compact, measuring 1.8 mm in length, 1.35 mm in width, and 0.9 mm in height.
It has a peak non-repetitive forward surge current rating of 500 mA, enhancing its capability to handle transient surges.
The maximum operating temperature is rated at 150°C, allowing it to perform in demanding thermal environments.
It features a low forward voltage drop of 0.46 V, which helps in minimizing power loss during operation.
This model has a single-diode configuration with two pins, designed for surface mounting.
It uses a surface mount type, which facilitates automated assembly processes in modern electronics manufacturing.
The country of origin for this model is India.
It is classified as a Schottky rectifier, known for its low forward voltage drop and fast switching capabilities.
