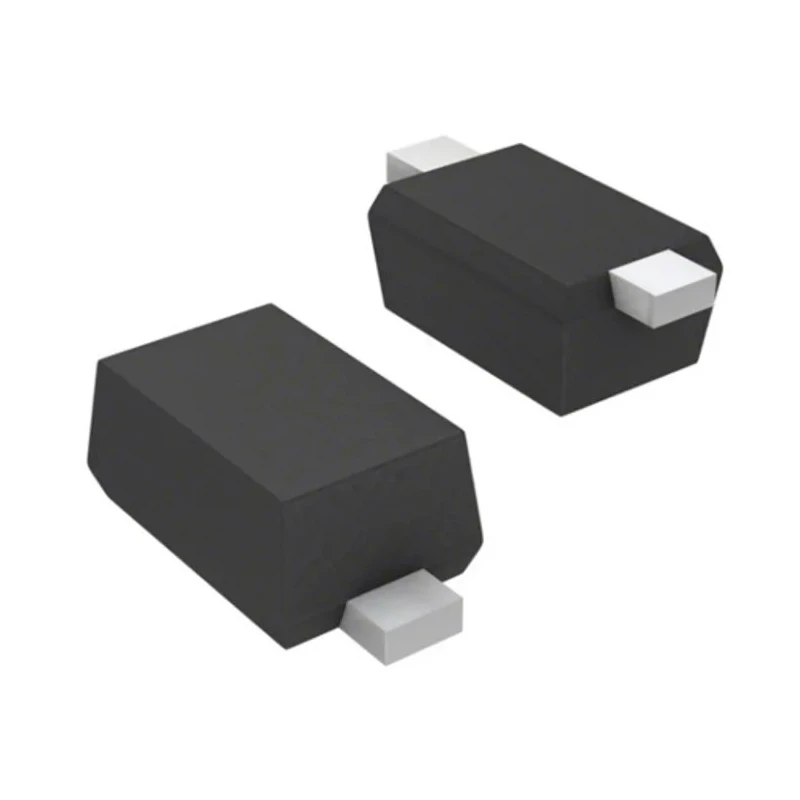

ROHM Zener Diode Single 8.36 V 150 mW Surface Mount SOD-523 EDZVT2R8.2B

ROHM EDZVT2R8.2B is a high-reliability single Zener diode designed for voltage regulation applications in electronic circuits. Featuring a nominal Zener voltage of 8.36 V and maximum power dissipation of 150 mW, this diode is engineered to maintain stable voltage under varying load conditions.

Its ultra-small 2-pin surface mount SOD-523 package allows for high-density PCB assembly, making it well-suited for compact electronic devices and modern electronics manufacturing techniques. The device is rated for maximum operating temperatures up to 150°C, ensuring durability in harsh thermal environments.

The device exhibits low maximum reverse leakage current of 500 nA and a maximum Zener impedance of 60 Ω, providing efficient voltage regulation with minimal power loss. The test current is set at 5 mA, confirming the diode's performance under standard operating currents.

ROHM EDZVT2R8.2B complies with RoHS directives, signifying adherence to environmental and safety standards. This makes it ideal for use in industrial, telecommunications, consumer electronics, and automotive controls where precise voltage regulation is essential.

Nominal Zener voltage of 8.36 V. Maximum power dissipation of 150 mW. Compact 2-pin SOD-523 surface mount package. High operating temperature tolerance of 150°C. Low reverse leakage current of 500 nA. Stable voltage regulation with 60 Ω maximum Zener impedance.

Test current of 5 mA ensures reliable performance. RoHS compliant for environmental safety.

This Zener diode is essential for applications requiring stable voltage supply and effective over-voltage protection. It is suitable for integration in industrial control systems, telecommunications equipment, and electronic instrumentation where precision components are critical. Browse more ROHM semiconductor components and Zener Diodes on EnvMart for comprehensive electronics solutions.
