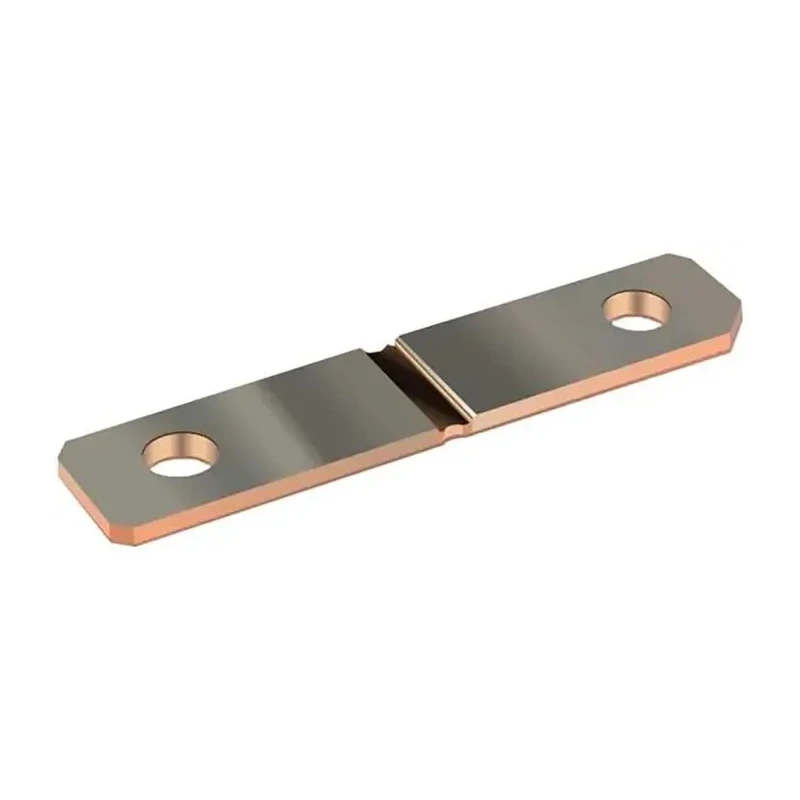

Bourns Plate Shunt 600 A Max 60mV ±5 % Accuracy CSM2F-8518-L100J01

Bourns CSM2F-8518-L100J01 Plate Shunt is an industrial-grade precision current sensing device designed to measure up to 600 amperes with a maximum output voltage of 60 millivolts and an accuracy of ±5%.

This plate shunt employs a metal foil resistive element mounted on a ceramic substrate that provides exceptional heat conductivity and ensures low noise and inductance characteristics suitable for demanding industrial and process control applications.

Capable of enduring continuous power dissipation up to 36 watts and capable of withstanding high pulse power ratings, this shunt is reliable under high load conditions. Its operating temperature range from -40°C to 170°C makes it adaptable to harsh environments.

The device features tinned terminals that assure strong, corrosion-resistant electrical connections, while a maximum fastening torque of 10 Nm supports secure mounting.

This shunt is used extensively in automation and control gear systems within electrical and industrial automation sectors for accurate current measurement, monitoring, and control.

Customized versions are available to meet specialized requirements, making it a flexible solution for various industrial power sensing needs. Bourns adherence to AEC-Q200 and RoHS compliance guarantees quality control and environmental safety standards, making it suitable for reliable and responsible industrial usage.

The shunt is a plate type construction optimized for low inductance and low noise. Operates reliably between -40°C and 170°C for broad environmental applications. Maximum fastening torque rating is 10 Nm ensuring secure installation.

The metal foil resistive element is mounted on ceramic substrate for excellent heat conductivity. Supports up to 36 W permanent power and high pulse power ratings. Tinned terminals improve corrosion resistance and reliable connections.

Customized versions are available to suit specific application needs. Compliance with AEC-Q200 and RoHS standards ensures quality and environmental safety. This product falls under the Automation & Control Gear category in Industrial Automation Systems for efficient process control and monitoring.
