Panasonic PCB Power Relay 24V DC Coil 30A Switching Current DPST HE2AN-S-DC24V

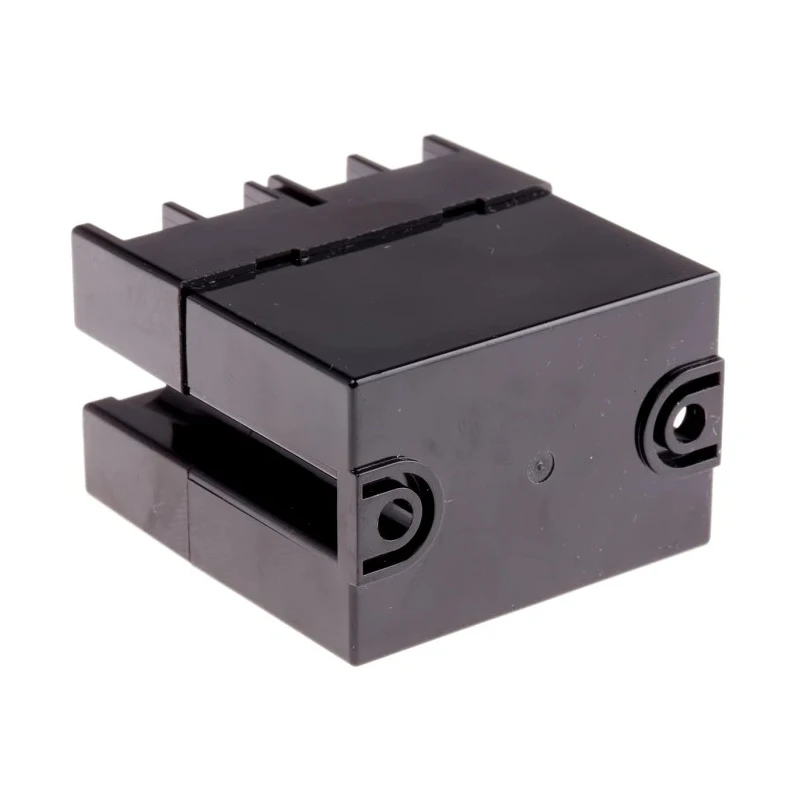

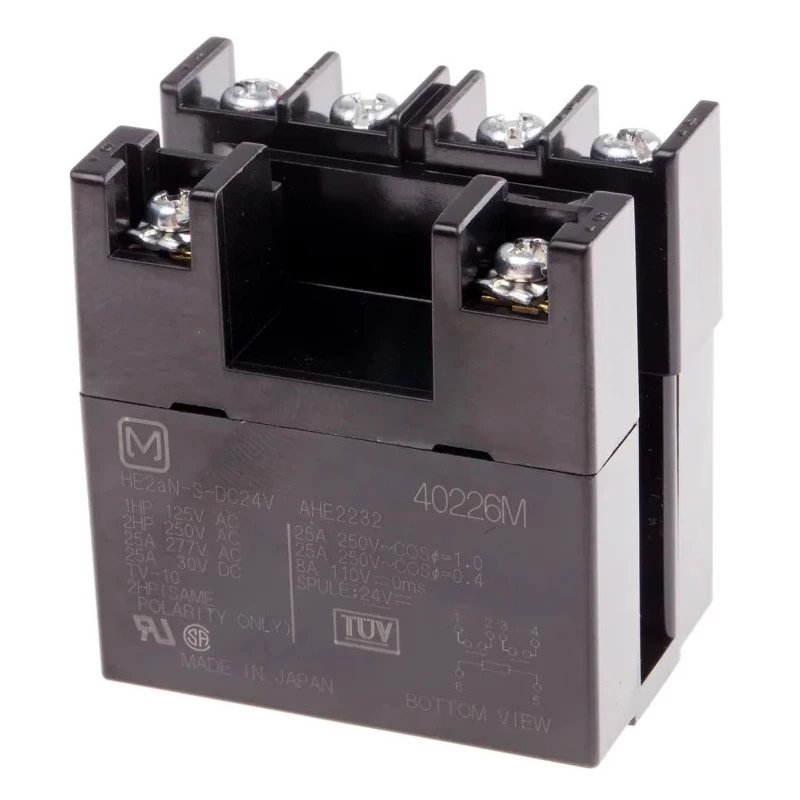

Panasonic HE2AN-S-DC24V PCB Power Relay is a high-capacity relay designed for PCB mounting with a 24V DC coil voltage and a 30A switching current. This power relay is engineered with a DPST (Double Pole Single Throw) contact configuration, providing effective switching capabilities for diverse applications.

The relay features silver alloy contacts that offer excellent conductivity and resistance to contact welding due to its pre-tension and kick-off mechanism. It operates efficiently with a coil power rating of 1.92W and a coil resistance of 300Ω, maintaining stable performance within a wide operating temperature range from -50°C to 55°C. Panasonic’s HE series relays are known for their long life and high surge resistance, capable of withstanding surge voltages exceeding 10,000V.

Compact in size with dimensions measuring 50mm in length, 44.5mm in height, and 16.5mm in width, this relay can be easily integrated into printed circuit boards using screw terminal mounting, ensuring reliable mechanical and electrical connection. It is suited for usage in industrial equipment, office machines, and home appliances, particularly in machine tools, moulding equipment, air conditioners, and heating equipment.

This relay meets multiple international standards including CSA, UL, VDE, TUV certifications, and RoHS compliance, affirming its quality and environmental friendliness. The product is manufactured in Japan, reflecting premium build quality and adherence to rigorous manufacturing processes.

Features a DPST contact configuration suitable for complex switching needs. Designed for PCB mounting with screw terminal type for secure connections. Operates within temperature ranges from -50°C to 55°C ensuring durability.

Utilizes silver alloy contact material for excellent conductivity and reduced resistance. Supports switching voltages of up to 30V DC and 277V AC for versatile use. Low coil power consumption of 1.92W enhances energy efficiency.

Compact dimensions facilitate easy PCB integration. Complies with multiple international safety and quality standards. Typical applications include machine tools, moulding equipment, air conditioners, and heating equipment.

Ideal for industrial, manufacturing, HVAC, and electronic assembly applications, the Panasonic HE2AN-S-DC24V offers both reliability and performance for demanding operational conditions. Explore more Power Relays and related components in the Electronics & Electricals category at EnvMart.
