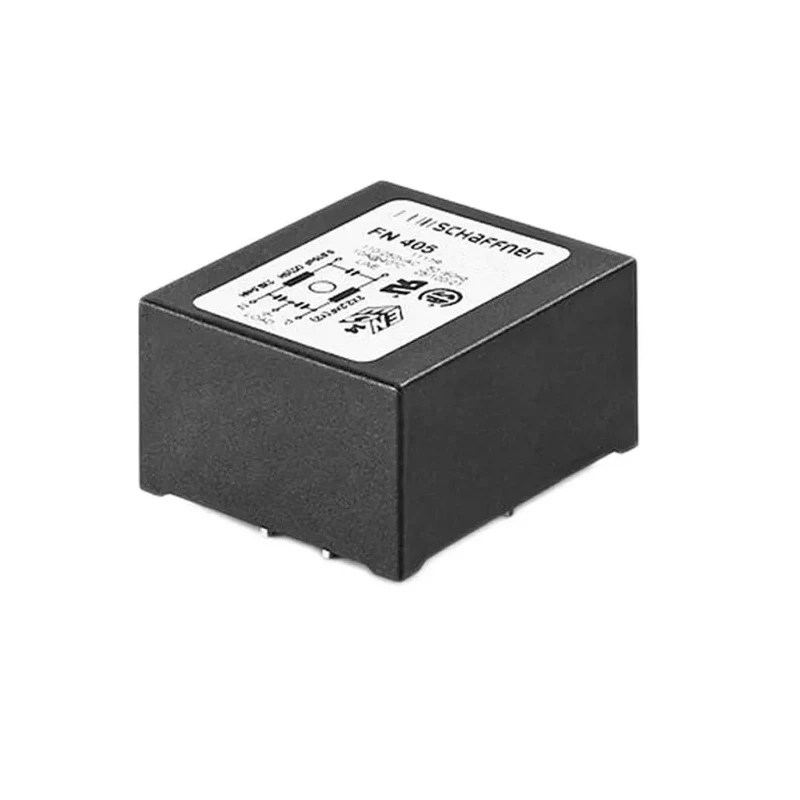

Schaffner PCB EMI Filter 3A 250V AC 400Hz Single Phase Pin Termination FN405

Schaffner FN405 is a single-phase PCB EMI filter designed for efficient electromagnetic interference suppression in electrical and electronic systems. Rated for a maximum current of 3A and a maximum voltage of 250V AC at 400Hz operating frequency, this filter ensures reliable performance in single phase power applications.

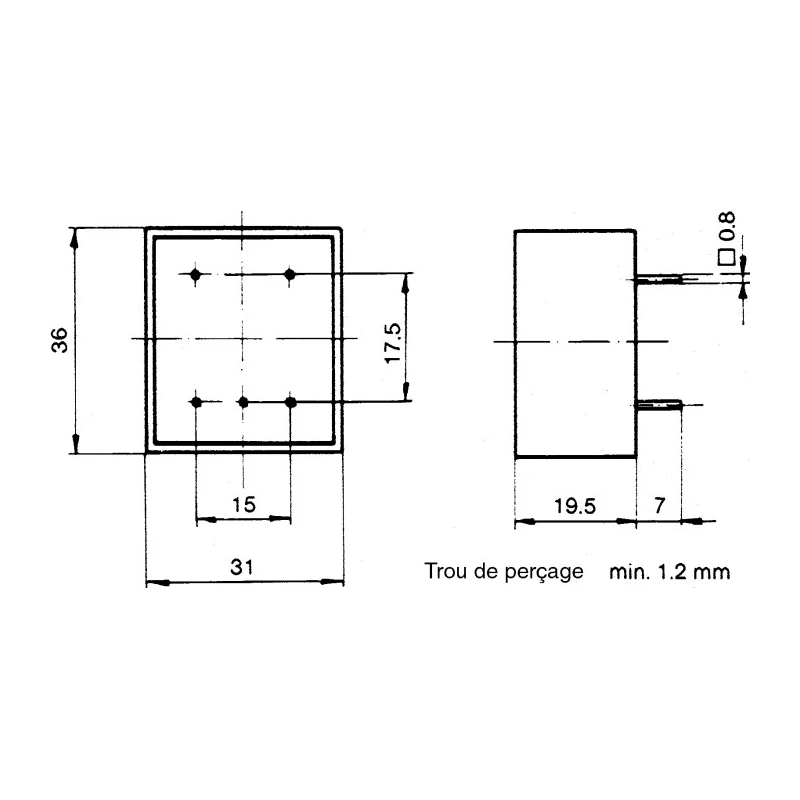

The filter features a pin termination style for easy and fast PCB through-hole mounting. Its compact plastic housing with low-profile design, measuring 36mm in length, 31mm in depth, and 19.5mm in height, makes it suitable for space-constrained applications.

With capacitance of 15nF and inductance of 2mH, the FN405 series provides effective EMI filtering, aided by chokes with high saturation resistance and excellent thermal behavior. Operating temperature ranges from minus 25°C to 100°C, allowing the filter to perform well in varied environmental conditions.

The leakage current is low at 373μA, promoting energy efficiency. The product is UL recognised, CSA Certified, and VDE approved, ensuring compliance with international safety standards.

This EMI filter is ideal for use in a broad range of industrial and commercial environments including electronic equipment, small to medium-sized machinery, household appliances, switch-mode power supplies, and test and measurement equipment, offering enhanced conducted attenuation performance.

Designed for single-phase operation with pin termination style for PCB mounting. Operates efficiently at up to 250V AC with a maximum current of 3 Amps. Features a low profile plastic housing with dimensions of 36mm length, 31mm depth, and 19.5mm height.

Includes a capacitance of 15nF and inductance of 2mH for effective EMI suppression. Functions reliably within an operating temperature range from -25°C to 100°C. Provides low leakage current of 373μA enabling energy-efficient operation.

Utilizes a choke design with high saturation resistance and excellent thermal behavior. Suitable for use in electrical and electronic equipment, household machines, and switch-mode power supplies. Offers good conducted attenuation performance and UL recognised, CSA Certified, and VDE approvals.
