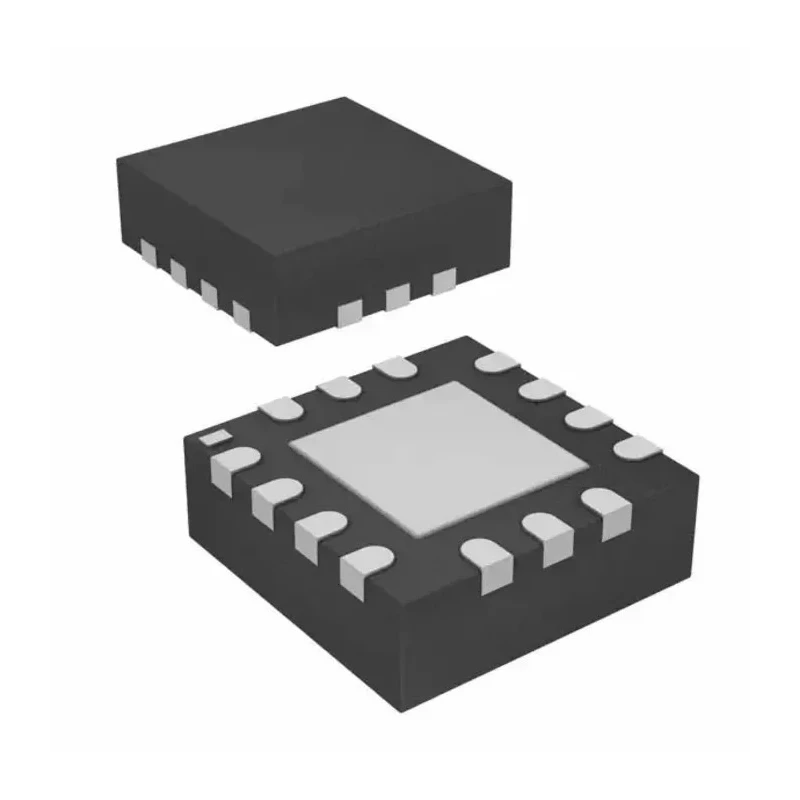

onsemi Controller IC USB Type C 5 Gbps Data Rate 2.8V–5.5V Dual Supply 5V 14-Pin MLP FUSB302MPX

Free Delivery in India | Lowest Global Shipping Charges

onsemi Controller IC USB Type C 5 Gbps Data Rate 2.8V - 5.5V Dual Supply 5V 14-Pin MLP FUSB302MPX

Name: onsemi Controller IC USB Type C 5 Gbps Data Rate 2.8V - 5.5V Dual Supply 5V 14-Pin MLP FUSB302MPX
Brand: onsemi
SKU: 213608
Price: 0.85 USD
Availability: InStock



Category USB Interface IC Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	730μm
Length	2.5mm
Model	FUSB302MPX
Mount Type	Surface
Series	FUSB302
Maximum Operating Temperature	85°C
Package Type	MLP
Sub Type	Controller
Minimum Operating Temperature	-40°C
Pin Count	14
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.8V
Maximum Data Rate	5Gbps
USB Specification	USB Type C
Supported Protocols	USB
Dual Supply Voltage	5V

Key Features

Supports USB Type-C standard and USB BMC power delivery protocol.
Enables detection of USB connection attach and orientation for Type-C connectors.
Integrates physical layer for up to 100 W power delivery and role swap functionality.
Suitable for system designers implementing DRP, SRC, or SNK USB Type-C connectors.
Operates within temperature range of -40°C to 85°C.
Surface mount package design ensures compatibility with modern PCB assembly.
Pin count of 14 provided in a compact MLP package type.
Supports protocols for audio accessory modes and debug accessory modes.

Product Description

onsemi FUSB302MPX Controller IC is a high-performance USB Type-C interface controller IC engineered for effective USB connectivity solutions. It supports a maximum data rate of 5 Gbps and operates with a dual supply voltage range from 2.8 V to 5.5 V, featuring a dedicated 5 V line. Packaged in a compact 14-Pin MLP surface mount format, it is optimized for space-constrained applications.

This controller IC enables robust USB Type-C detection, including connection attachment and orientation recognition. It incorporates the physical layer of the USB BMC power delivery protocol, supporting power delivery up to 100 W and role swap features, facilitating dynamic power roles between host and device.

With a temperature operating range from -40°C to 85°C, the FUSB302MPX is suited for reliable operation in harsh industrial and commercial environments. The integrated support for audio adapter accessory mode and debug accessory mode enhances its versatility in USB interface implementations.

The device facilitates system designers implementing Dual Role Power (DRP), Source (SRC), and Sink (SNK) USB Type-C connectors with minimal programmability requirements, streamlining integration efforts.

Supports USB Type-C and USB BMC power delivery protocol. Facilitates attach detection and orientation for Type-C connectors. Enables power delivery up to 100 W with role swap capability. Surface mount 14-Pin MLP package with compact dimensions.

Temperature rating from -40°C to 85°C for industrial applications. Incorporates audio and debug accessory mode support. Height 730 μm and length 2.5 mm for compact PCB integration. This product is widely applicable in industrial, consumer electronics, and computer hardware systems requiring efficient USB Type-C connectivity and power management.
