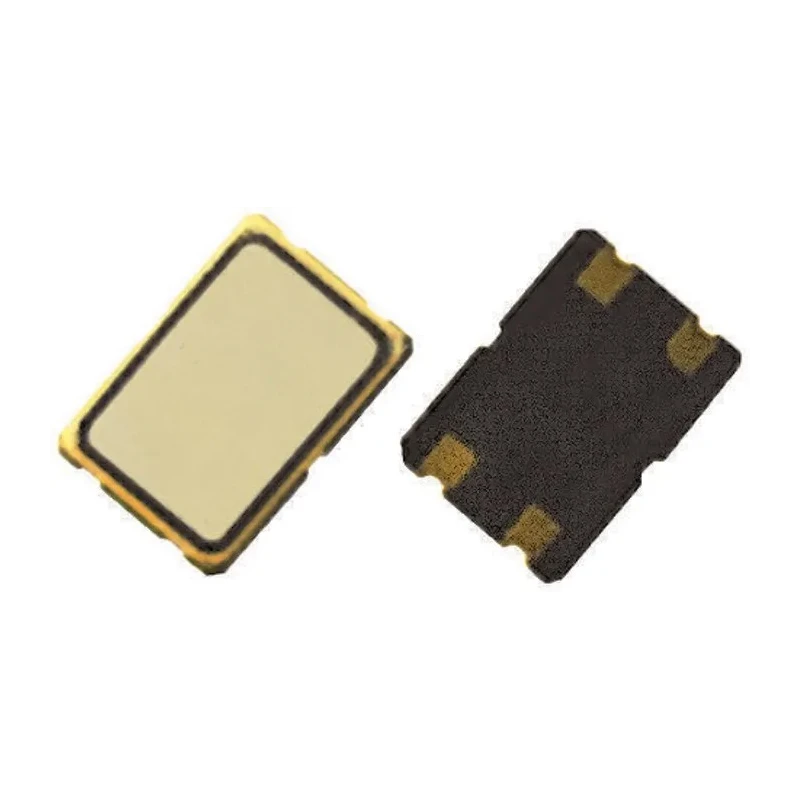

Euroquartz 50MHz XO Oscillator ±50 ppm HCMOS LSTTL 4-Pin Surface Mount XO91050UITA-50.000

Free Delivery in India | Lowest Global Shipping Charges

Euroquartz 50MHz XO Oscillator ±50 ppm HCMOS LSTTL 4-Pin Surface Mount XO91050UITA-50.000

Name: Euroquartz 50MHz XO Oscillator ±50 ppm HCMOS LSTTL 4-Pin Surface Mount XO91050UITA-50.000
Brand: Euroquartz
SKU: 213254
Price: 1.98 USD
Availability: InStock



Category Crystal Oscillator Brand Euroquartz Condition New

Specifications

Country of Origin	Taiwan
Brand	Euroquartz
Height	1.4mm
Length	7mm
Model	XO91050UITA-50.000
Width	5mm
Mount Type	Surface
Series	XO91
Maximum Operating Temperature	85°C
Output Frequency	50MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	MIL-STD-202F Method 213B, MIL-STD-202F Method 208E, MIL-STD-202F Method 204, RoHS
Pin Count	4
Maximum Supply Voltage	5V
Minimum Supply Voltage	1.8V
Load Capacitance	15pF
Oscillator Type	XO
Output Level	HCMOS, LSTTL

Key Features

The oscillator operates with a frequency of 50MHz, ensuring precise timing control.
Designed for surface mount applications with a compact 7mm x 5mm ceramic case.
Operates efficiently across a supply voltage range from 1.8V minimum to 5V maximum.
Supports a load capacitance of 15pF suitable for diverse circuit requirements.
Temperature tolerance ranges from -40°C to +85°C for reliable performance in varied environments.
Complies with MIL-STD-202F Methods 213B, 208E, 204, and RoHS standards for quality and environmental safety.
Compact dimensions make it suitable for high-density electronic assemblies.
Output level compatible with HCMOS and LSTTL logic families for flexible system integration.

Product Description

Euroquartz XO91050UITA-50.000 is a high-precision 50MHz XO Oscillator designed for critical timing applications in industrial, electronic, and communication equipment. Featuring a stable frequency deviation of ±50 ppm, it employs HCMOS and LSTTL compatible output levels making it ideal for integration into modern electronic circuits requiring accurate clock sources.

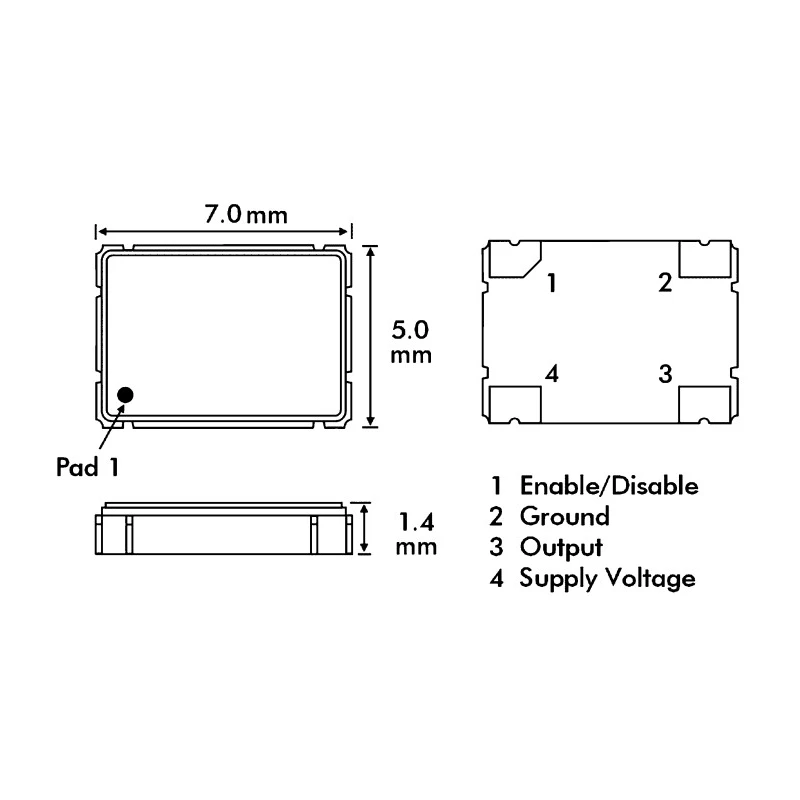

The oscillator is housed in a 7mm length by 5mm width by 1.4mm height ceramic surface mount package which supports compact PCB designs. It operates on a variable supply voltage from 1.8V up to 5V, ensuring adaptability across diverse power environments.

Load capacitance is rated at 15pF, optimized to minimize signal distortion while maintaining frequency stability. The device is qualified for operation in temperature ranges from -40°C to +85°C, allowing it to withstand harsh industrial and commercial environments.

Testing and quality compliance adhere to MIL-STD-202F Methods 213B, 208E, 204 along with RoHS standards, assuring reliability and environmental stewardship.

The 4-pin footprint facilitates surface mount technology assembly, boosting manufacturing efficiency and production rates in various sectors including telecommunications, instrumentation, and embedded systems design.

The oscillator provides a frequency of 50MHz with ±50 ppm stability. Compact 4-pin surface mount package fits dense PCB layouts. Wide operating voltage range from 1.8V to 5V. Load capacitance of 15pF ensures signal integrity.

Operates reliably in -40°C to +85°C temperature range. Compliance with MIL-STD-202F and RoHS standards guarantees quality. HCMOS and LSTTL compatible output logic levels. Ceramic case suitable for rugged electronic applications.

This Euroquartz oscillator is suitable for industrial, manufacturing, electronic component assembly, telecommunications, and other sectors requiring stable Crystal Oscillator sources. Explore our range of electronic components at EnvMart to select complementary parts and improve your system designs and reliability.
