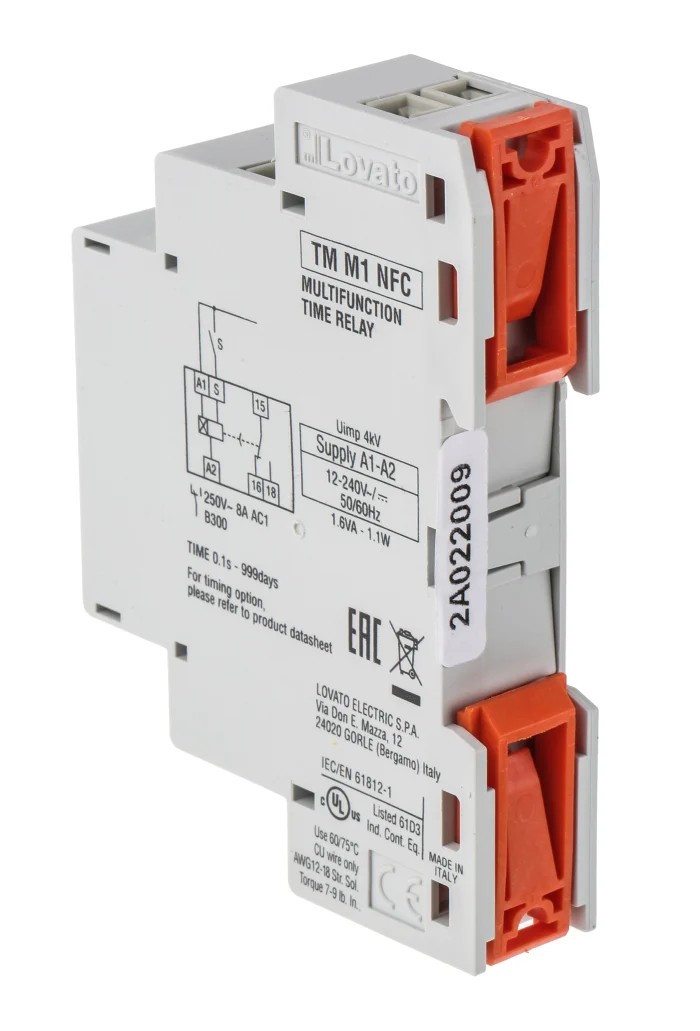

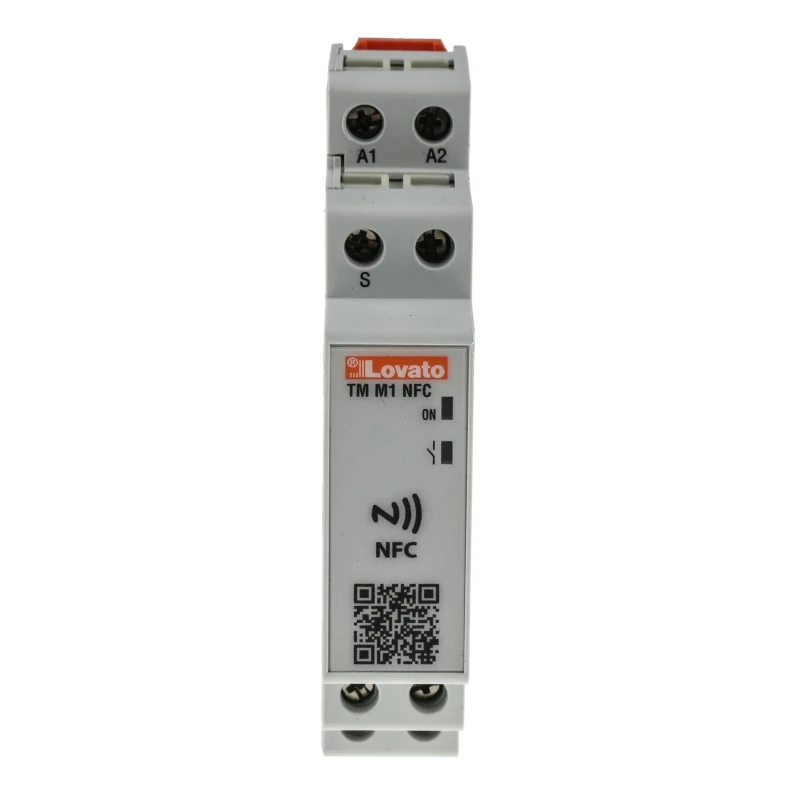

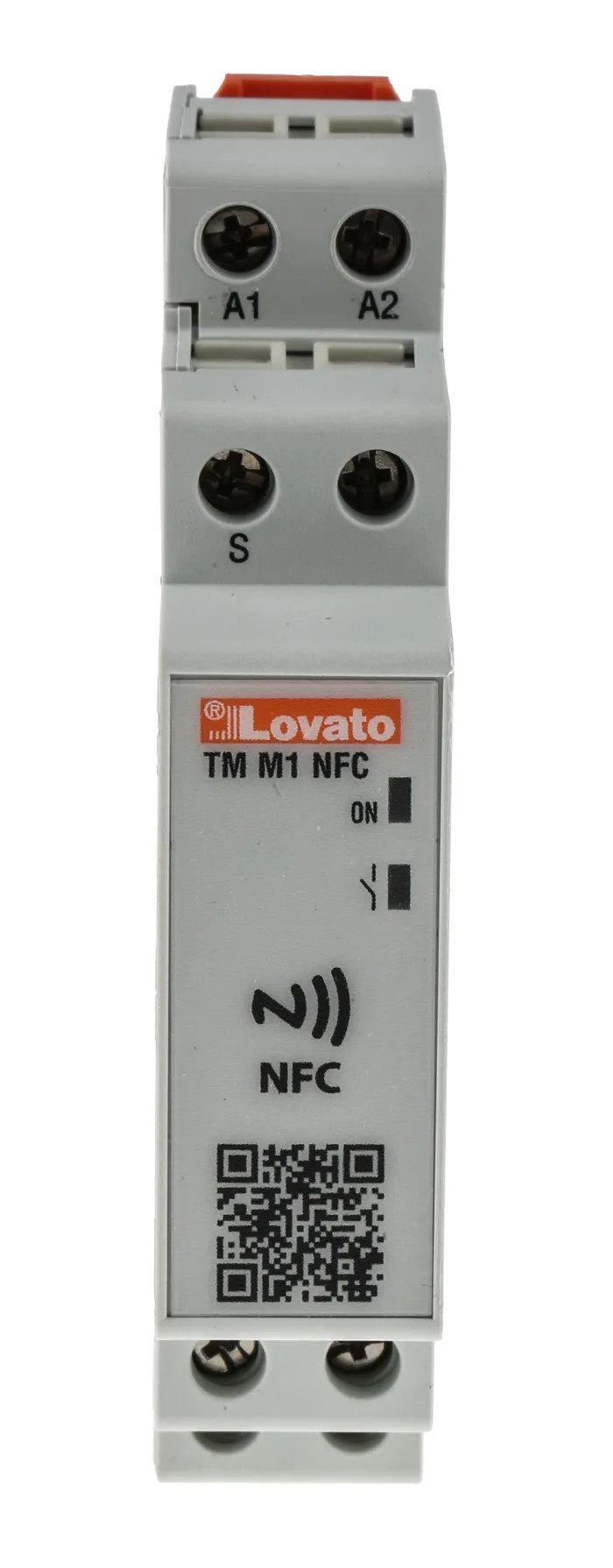

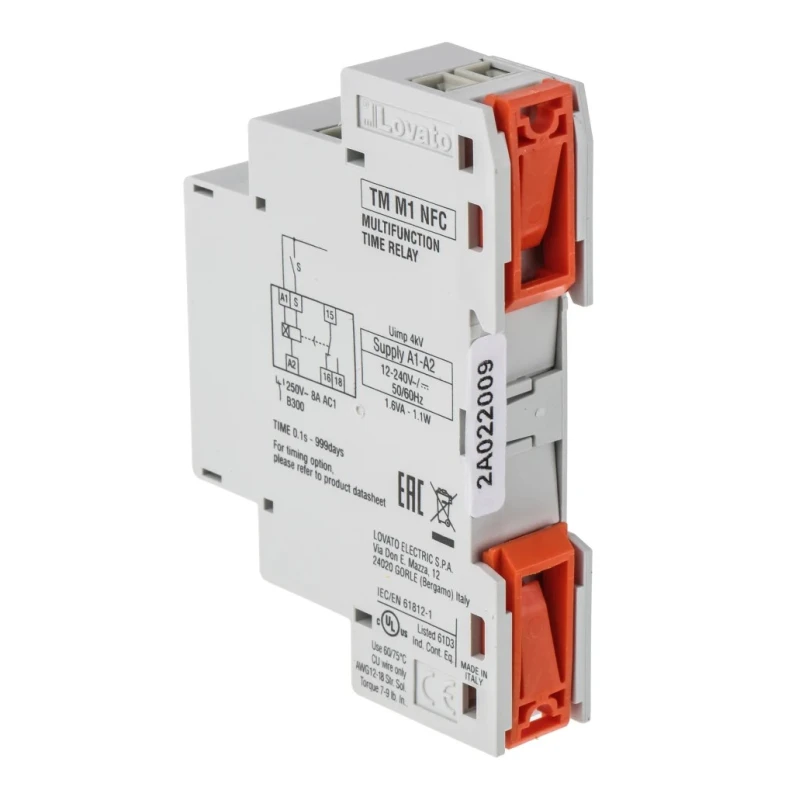

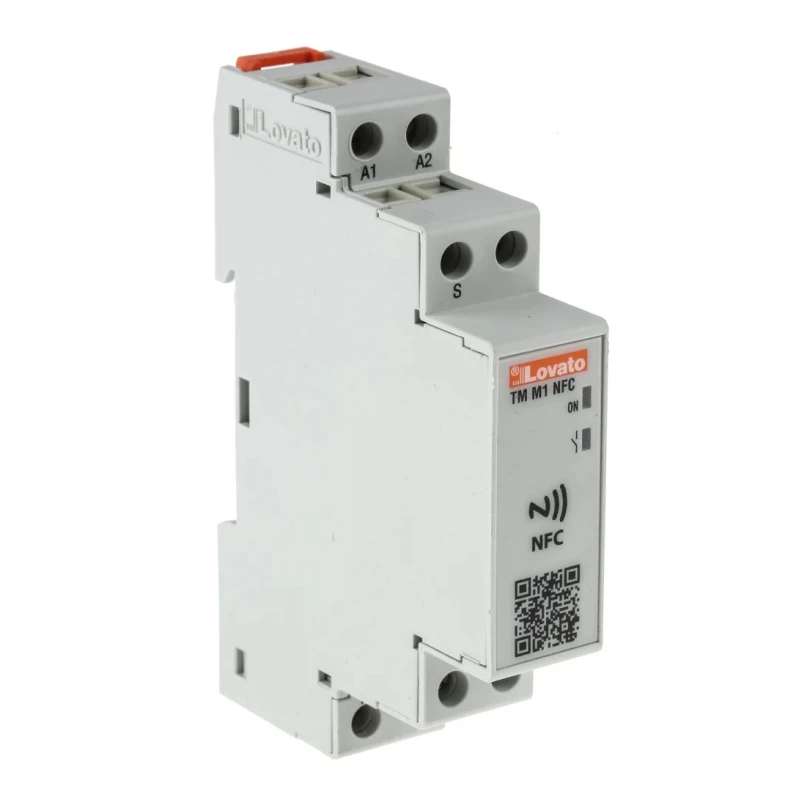

Lovato Electric Multifunction DIN Rail Timer Relay, 2-Contact, 12 to 240 V AC/DC, Time Range 0.1 s to 999 h TMM1NFC

Free Delivery in India | Lowest Global Shipping Charges

Lovato Electric Multifunction DIN Rail Timer Relay, 2-Contact, 12 to 240 V AC/DC, Time Range 0.1 s to 999 h TMM1NFC

Name: Lovato Electric Multifunction DIN Rail Timer Relay, 2-Contact, 12 to 240 V AC/DC, Time Range 0.1 s to 999 h TMM1NFC
Brand: LOVATO Electric
SKU: 153236
Price: 160.18 USD
Availability: InStock



Category Timer Relays Brand LOVATO Electric Condition New

Specifications

Country of Origin	Italy
Brand	Lovato Electric
Height	90mm
Function	Multifunction
Length	17.5mm
Model	TMM1NFC
IP Rating	IP40
Mode	ON/OFF Delay
Width	64.9mm
Mount Type	DIN Rail
Series	TMM 1
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	-20°C
Time Range	0.1 s to 999 h
Terminal type	Screw
Standards/Approvals	RoHS
Number of Contacts	2
Number of Timer Functions	Multifunction
Supply DC Voltage	12 to 240 V ac/dc
Supply AC Voltage	12, 240V ac

Key Features

Multifunction timer relay with 40 different timer functions.
Operates on supply voltage ranges between 12V and 240V AC/DC.
Equipped with 2 SPDT contacts for reliable switching.
Compact DIN rail mounting with a height of 90mm and width of 64.9mm.
IP40 rated enclosure ensuring protection against solid objects.
Programmable via NFC technology using smartphones or tablets.
High accuracy and repeatability with electronic ON/OFF delay modes.
Functions protected by password to prevent unauthorized changes.

Product Description

Lovato Electric TMM1NFC is a multifunction DIN rail timer relay combining versatility with precision for industrial control applications. It offers 40 timer functions covering electronic ON/OFF delays and various timing modes, controlled via two changeover SPDT contacts. The relay supports a wide supply voltage range of 12 to 240 V AC/DC and features an adjustable timing range of 0.1 seconds up to 999 hours, providing extensive flexibility for automation tasks.

The device comes mounted on a standard DIN rail, measuring 90mm in height, 64.9mm in width, and 17.5mm in length, suitable for compact panel installations. Its IP40 protection rating safeguards against solid objects while allowing ease of installation and maintenance with screw terminals. Additionally, the relay incorporates NFC technology enabling simple, fast programming via smartphones or tablets, with options to save and replicate configurations even when powered off.

Designed for applications including flashers, liquid level controls, timing controls, and vending machines, this timer relay ensures high accuracy and repeatability, critical for industrial process reliability. Settings can be secured with password protection, enhancing operational safety.

Multifunction timer relay with 40 available timer functions. Wide supply voltage compatibility from 12 V to 240 V AC/DC. Two SPDT contacts providing flexible switching options. Compact design with standard DIN rail mounting for easy integration.

IP40-rated housing offering adequate protection in industrial environments. NFC programmable for quick and convenient configuration. Password protection to secure timer settings against unauthorized changes. High precision and reliable timing suitable for diverse automation tasks.

Ideal for industrial, laboratory, and commercial timing applications. This timer relay is made in Italy, adhering to RoHS standards. It is the ideal solution for electrical and automation systems requiring dependable time-based control.
