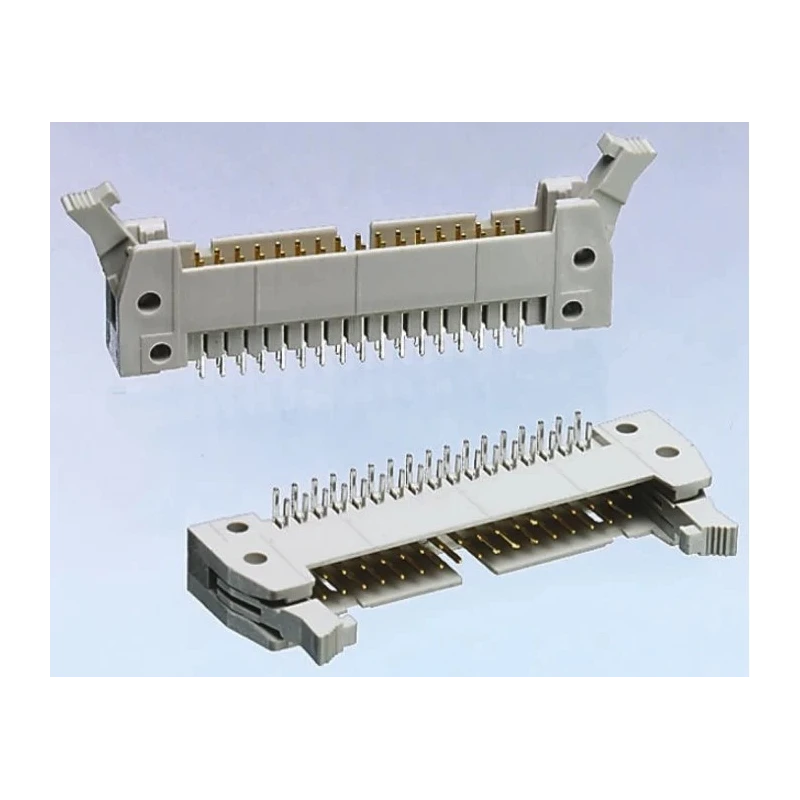

HARTING PCB Header SEK 18 Series Straight Through Hole, 60 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185606904
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a shrouded design for enhanced protection and durability.
- Manufactured with copper alloy contacts plated in gold for excellent conductivity.
- Suitable for through-hole mounting on PCBs with a straight orientation.
- Operates reliably within a temperature range from -55°C to 125°C.
- Supports a maximum voltage rating of 1 kV and current rating of 1 A.
- Constructed with polybutylene terephthalate housing for chemical and thermal resistance.
- Complies with standards including UL, CSA, IEC 603-13, and MIL-C 83503.
- Ideal for electronic and electrical industrial applications requiring robust PCB connectors.
Product Description
HARTING 09185606904 PCB Header SEK 18 Series is a high-performance connector designed for industrial and electronic applications demanding reliable wire-to-board connections. This PCB header features 60 male contacts arranged in two rows with a 2.54 mm pitch, ensuring precision and stability during PCB mounting.
The housing is made from durable polybutylene terephthalate, known for its excellent chemical and thermal resistance properties. Its shrouded design protects contacts from misalignment and damage, enhancing connector longevity. Contacts are composed of copper alloy with gold plating to guarantee excellent conductivity and corrosion resistance.
With a current rating of 1 A and voltage rating of 1 kV, this PCB Header meets stringent electrical performance standards. It operates efficiently within a wide temperature range from -55°C to 125°C, making it suitable for harsh environments.
The straight through-hole mount style simplifies PCB integration, promoting reliable mechanical and electrical connections. It complies with multiple approvals and standards such as UL, CSA, IEC 603-13, MIL-C 83503, and DIN EN 60603-13, ensuring compliance with industry requirements.
Shrouded design for contact protection and alignment. Copper alloy contacts with gold plating for optimal electrical performance. Polybutylene terephthalate housing for durability and resistance. Suitable for through-hole PCB mounting with straight orientation.
Reliable operation over wide temperature range (-55°C to 125°C). Rated for 1 A current and 1 kV voltage. Meets recognized international standards and approvals. Designed for use in industrial, electronics manufacturing, and PCB assembly applications.
This connector is ideal for enhancing production efficiency in electronic equipment, communications devices, and other industrial products requiring dependable PCB connections. Designed by HARTING, a globally recognized brand known for quality and innovation in connector technology.
Explore further to find comprehensive components and accessories suitable for your electronic design projects and industrial automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this PCB header is 1 kV.
This model has a current rating of 1 A.
The pitch size of the contacts is 2.54 mm.
It features 60 male contacts arranged in two rows.
The housing is constructed from polybutylene terephthalate, which offers chemical and thermal resistance.
This unit operates reliably within a temperature range from -55°C to 125°C.
It supports through-hole mounting with a straight orientation.
The contacts are made from copper alloy and are plated in gold for excellent conductivity.
It complies with UL, CSA, IEC 603-13, and MIL-C 83503 standards.
This connector uses solder termination type.
This model features a shrouded design for enhanced protection and alignment of contacts.
The country of origin for this PCB header is India.
