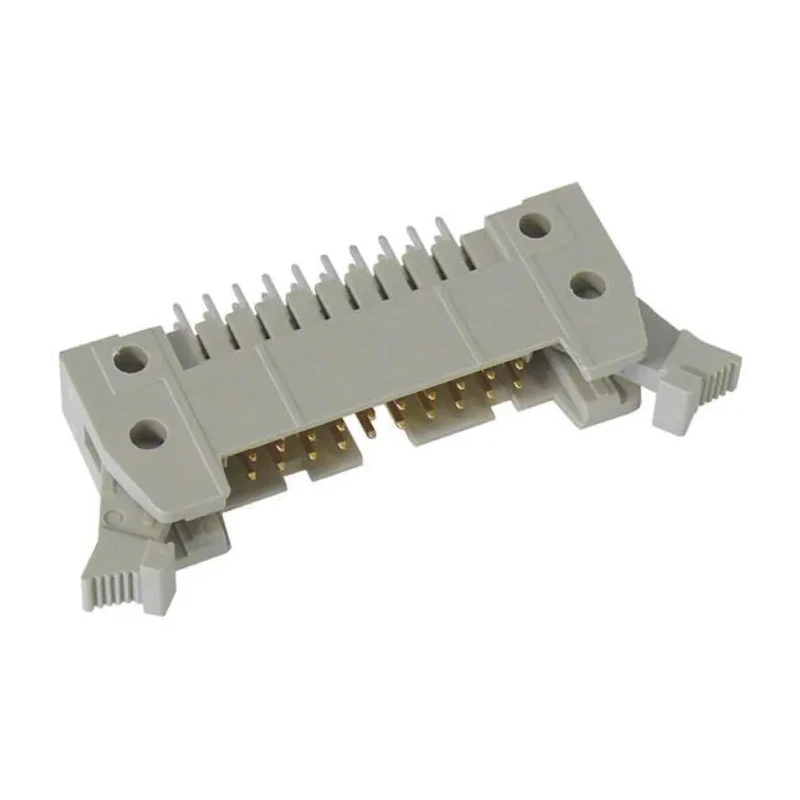

HARTING SEK 18 Series Straight Through Hole 64 Contact PCB Header 2.54 mm Pitch 2 Row Shrouded 09185646914
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Durable housing made from polybutylene terephthalate ensuring long service life.
- Gold plated copper alloy contacts providing excellent conductivity and corrosion resistance.
- Designed for through-hole mounting with straight orientation and solder termination.
- Rated for operating temperatures from -55°C to 125°C suitable for diverse environments.
- Supports 1A current and 1kV voltage rating for robust performance.
- Compact 2.54 mm pitch with 2 rows and 64 contacts to accommodate dense PCB layouts.
- Shrouded connector system enhances protection and mechanical stability.
- Manufactured in Switzerland guaranteeing high quality standards.
Product Description
HARTING 09185646914 SEK 18 Series Straight Through Hole PCB Header features 64 gold-plated copper alloy contacts arranged in two rows with a 2.54 mm pitch, making it ideal for compact and high-density PCB applications. The housing is constructed from polybutylene terephthalate, providing excellent durability and thermal resistance. Designed for through-hole mounting with straight solder pins 2.9 mm long, it ensures secure mechanical and electrical connections.
This shrouded header supports a current rating of 1 ampere and voltage up to 1kV, with operational temperature ranging from -55°C to 125°C, making it suitable for demanding industrial, electronic, and manufacturing environments. The gold plating on contacts ensures reliable signal integrity and resistance to corrosion over time.
The standard pitch and row configuration facilitate easy integration into wire-to-board connector systems, widely used in electronic components and control systems manufacturing. It complies with typical industry expectations though without specific approval certifications.
Constructed with precision in Switzerland, this part is compatible with locking levers (available separately) to enhance mechanical hold if required. It is distributed in bags prepared for immediate insertion into machinery, improving production efficiency.
Durable polybutylene terephthalate housing supports harsh conditions. Gold plated copper alloy contacts give superior conductivity. Through-hole mount with straight orientation for secure PCB integration. Operating temperature range from -55°C to 125°C for versatile use.
1A current and 1kV voltage rating safe for standard applications. Compact 2 row design with 64 contacts for high-density wiring. Shrouded connector system protects contacts and improves safety. Manufactured in Switzerland adhering to quality standards.
This HARTING SEK 18 Series PCB Header is perfect for industrial electronics, assembly line manufacturing, power distribution, and control system applications where reliable connectivity and durability are critical. Explore the entire catalog for complete PCB connector solutions and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 1kV.
This model supports a current rating of 1 ampere.
The operating temperature range for this connector is from -55°C to 125°C.
This PCB header features 64 contacts arranged in two rows.
The housing is made from polybutylene terephthalate, and the contacts are made from gold-plated copper alloy.
It is designed for through-hole mounting with straight solder pins.
The product complies with typical industry expectations but does not have specific approval certifications mentioned.
The pitch size of this PCB header is 2.54 mm.
This header is a shrouded connector, which enhances protection and mechanical stability.
This model uses solder termination for secure connections.
This product is manufactured in Switzerland, adhering to high quality standards.
This header is suitable for industrial electronics, assembly line manufacturing, power distribution, and control systems.
