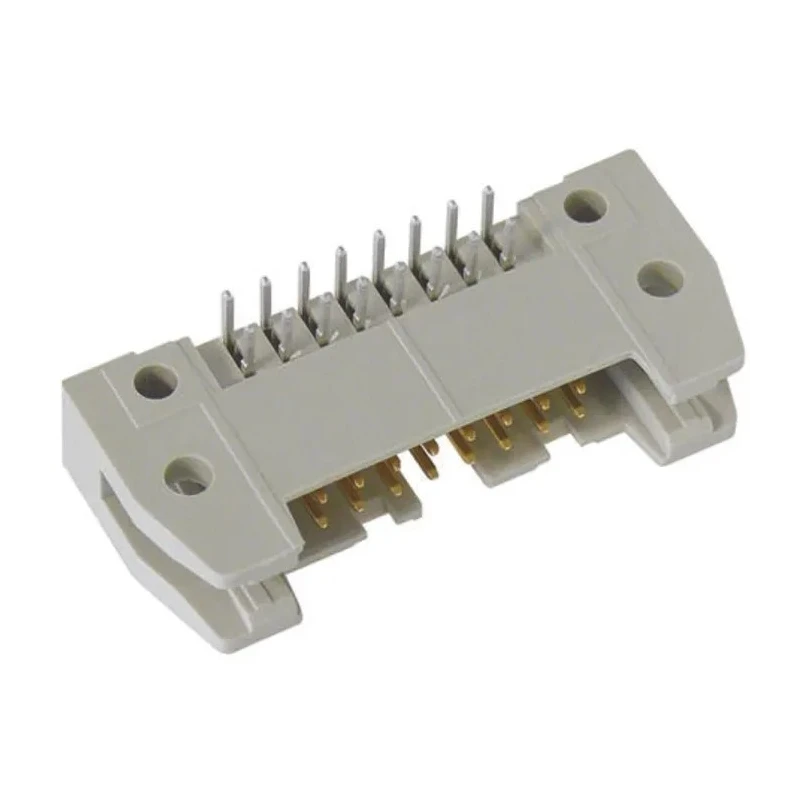

HARTING SEK 18 Series Right Angle Through Hole Shrouded PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row 09185206913
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with a polybutylene terephthalate housing for structural integrity.
- Rated for 1A current carrying capacity suitable for various PCB applications.
- Gold-plated copper alloy contacts provide reliable connectivity and corrosion resistance.
- Operating temperature range from -55°C to 125°C ensuring performance in extreme conditions.
- Meets IEC 60603-13 standards with 1kV voltage rating for safety and performance.
- Right angle orientation for efficient board layout and wiring.
- Shrouded design protects contacts and enhances durability.
- Termination via solder ensures secure installation on PCB assemblies.
Product Description
HARTING 09185206913 is a shrouded PCB header from the SEK 18 Series designed for mounting onto printed circuit boards using through hole technology. It features 20 gold-plated male contacts arranged in 2 rows with a pitch of 2.54 mm and a right angle orientation to optimize space on PCBs.
The housing is made from durable polybutylene terephthalate material, providing mechanical strength and electrical insulation, suitable for industrial, electronics manufacturing, automation, and control systems.
This PCB Header supports a current rating of 1 ampere and a voltage rating of 1kV, ensuring reliable signal integrity and power handling. It operates safely across temperatures ranging from -55°C to 125°C, allowing usage in harsh environmental conditions.
The shrouded design offers additional protection to the contacts, minimizing the risk of accidental short circuits and physical damage. The solder termination type facilitates secure and lasting connections during PCB assembly processes.
Compliant with IEC 60603-13 standards but without additional certifications, this connector is suitable for use in electronics assembly lines, telecommunications equipment, and commercial electronic devices requiring robust and compact wire-to-board connections.
Constructed with a polybutylene terephthalate housing for structural integrity. Rated for 1A current carrying capacity suitable for various PCB applications. Gold-plated copper alloy contacts provide reliable connectivity and corrosion resistance.
Operating temperature range from -55°C to 125°C ensuring performance in extreme conditions. Meets IEC 60603-13 standards with 1kV voltage rating for safety and performance. Right angle orientation for efficient board layout and wiring.
Shrouded design protects contacts and enhances durability. Termination via solder ensures secure installation on PCB assemblies.
This product originates from Switzerland and is part of HARTING's SEK 18 series known for quality PCB connector solutions. It is ideal for use in industrial electronics, automation, and manufacturing sectors requiring reliable wire-to-board connectors.
Explore more PCB connectors at EnvMart for your electronics applications and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current carrying capacity of 1 ampere, making it suitable for various PCB applications.
It has a voltage rating of 1kV, ensuring safety and performance in electrical applications.
The operating temperature range is from -55°C to 125°C, allowing it to perform in extreme conditions.
This unit features 20 male contacts arranged in 2 rows, with a pitch of 2.54 mm.
It uses solder termination, which ensures secure installation on PCB assemblies.
The housing is constructed from polybutylene terephthalate, providing mechanical strength and electrical insulation.
This model has a right angle orientation, which optimizes space on printed circuit boards.
Yes, it meets IEC 60603-13 standards, ensuring compatibility and performance in electronic applications.
It utilizes a wire-to-board connector system, suitable for various electronic applications.
This PCB header originates from Switzerland, known for its quality manufacturing standards.
The contacts are made of gold-plated copper alloy, which provides reliable connectivity and corrosion resistance.
