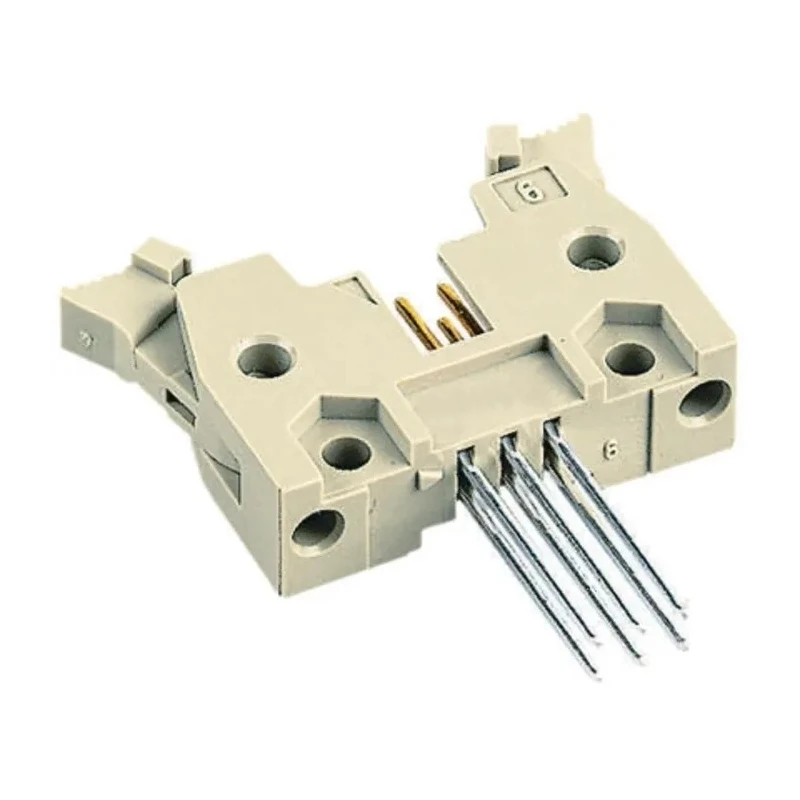

HARTING SEK 18 Series Straight Through Hole PCB Header, 34 Contact, 2.54 mm Pitch, 2 Row, Shrouded 09185346927

Free Delivery in India | Lowest Global Shipping Charges

HARTING SEK 18 Series Straight Through Hole PCB Header, 34 Contact, 2.54 mm Pitch, 2 Row, Shrouded 09185346927

Name: HARTING SEK 18 Series Straight Through Hole PCB Header, 34 Contact, 2.54 mm Pitch, 2 Row, Shrouded 09185346927
Brand: HARTING
SKU: 213174
Price: 17.07 USD
Availability: InStock



Category PCB Header Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Voltage	1kV
Brand	HARTING
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	34
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features 34 contacts arranged in 2 rows with a 2.54 mm pitch for precise pin spacing.
Constructed with a polybutylene terephthalate housing for durability and electrical insulation.
Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
Suitable for operating temperatures from -55°C to 125°C.
Designed as a straight orientation with shrouded protection for enhanced mechanical safety.
Termination is via solder type with a contact length of 15 mm and wrap post configuration.
Rated for current up to 1A and voltage withstand of 1 kV.
Manufactured in Switzerland adhering to IEC 60 603-13 standards.

Product Description

HARTING 09185346927 PCB Header from SEK 18 Series is a male, straight through-hole connector featuring 34 contacts arranged in 2 rows with a 2.54 mm pitch. This shrouded header is designed to provide reliable wire-to-board connectivity for demanding electronic applications.

Constructed with a polybutylene terephthalate housing, it offers excellent durability and electrical insulation. The contacts are made of copper alloy with gold plating to ensure superior conductivity and corrosion resistance, enhancing the longevity of the connection.

The header supports operating temperatures ranging from -55°C to 125°C, making it suitable for harsh industrial environments. It is terminated using soldering with contacts 15 mm in length and features wrap post connectors for strong mechanical fixation.

Rated for a 1A current and up to 1 kV voltage, it meets IEC 60 603-13 standards, underlining its compliance with industry norms.

This connector finds extensive use in manufacturing, electronics assembly, automation equipment, and other industrial sectors where secure and efficient PCB interconnections are critical.

Features 34 contacts arranged in 2 rows with a 2.54 mm pitch for precise pin spacing. Constructed with a polybutylene terephthalate housing for durability and electrical insulation. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.

Operates reliably within temperature ranges from -55°C to 125°C. Straight orientation with shrouded design provides additional mechanical protection. Solder termination type with wrap post connectors and 15 mm contact length.

Rated for 1A current and withstands voltage up to 1 kV. Manufactured in Switzerland and compliant with IEC 60 603-13 standards. Ideal for PCB assembly in electronic and industrial applications. Explore a wide range of connectors and PCB Headers in the Electronics & Electricals category at EnvMart for professional industrial solutions.
