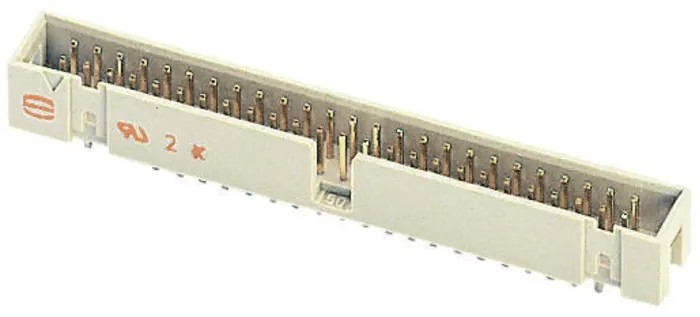

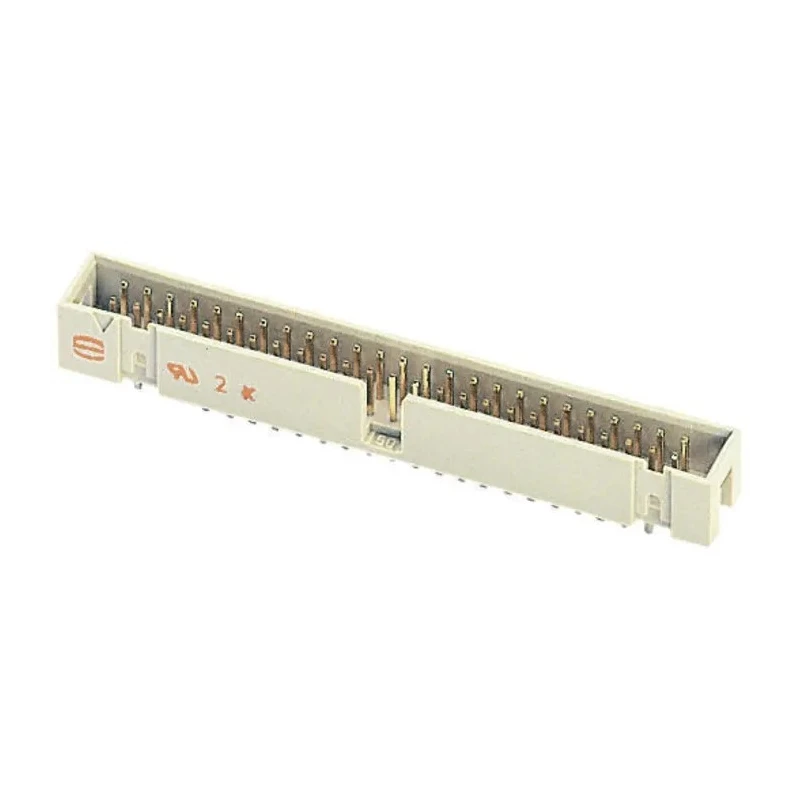

HARTING SEK 18 Series Straight Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185406324

Free Delivery in India | Lowest Global Shipping Charges

HARTING SEK 18 Series Straight Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185406324

Name: HARTING SEK 18 Series Straight Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185406324
Brand: HARTING
SKU: 213136
Price: 5.4 USD
Availability: InStock



Category PCB Header Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Voltage	1kV
Brand	HARTING
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Offers a current rating of 1 ampere suitable for low power applications.
Constructed with a durable polybutylene terephthalate housing material.
Features gold-plated copper alloy male contacts for reliable conductivity.
Designed for through-hole mounting with a straight orientation.
Operates reliably within -55°C to 125°C temperature range.
Rated for 1 kV voltage withstand capability.
Complies with IEC 60 603-13 standards for PCB connectors.
Shrouded design enhances protection and connection reliability.

Product Description

HARTING 09185406324 is a high-quality PCB header from the SEK 18 Series, featuring 40 contacts arranged in 2 rows with a 2.54 mm pitch. This shrouded header is designed for straight through-hole mounting, making it ideal for reliable wire-to-board connections in electronic assemblies.

Constructed with a polybutylene terephthalate housing, this connector ensures excellent insulation and mechanical stability. The male contacts are manufactured from copper alloy and plated with gold for superior conductivity and corrosion resistance, ensuring long-term operation under harsh conditions.

This PCB Header supports a current rating of 1 ampere and can operate within a temperature range of -55°C to 125°C, suitable for a wide range of industrial and commercial electronic applications. It withstands a voltage of up to 1 kV, providing safety for sensitive circuits.

The shrouded design provides added protection for contact points, reducing the risk of accidental shorts and improving connection security. It complies with the IEC 60 603-13 standard, assuring compatibility and reliability in various electronic systems.

Manufactured in Switzerland, this connector meets stringent quality and performance criteria suitable for industrial, laboratory, manufacturing, and automation use. It is supplied individually and designed to enhance production efficiency in PCB assembly processes.

Current rating of 1A for low power electronic circuits. Polybutylene terephthalate housing providing durability and insulation. Gold-plated copper alloy male contacts for excellent conductivity. Straight orientation with through-hole mounting for secure PCB installation.

Operating temperature range from -55°C to 125°C suitable for various environments. Voltage rating of 1 kV supporting a wide range of applications. Complies with IEC 60 603-13 standards ensuring quality and compatibility.

Shrouded design enhances safety and connection reliability. Made in Switzerland ensuring high manufacturing standards. Explore more PCB connectors and related electronic components on EnvMart for your industrial and technical application needs.
