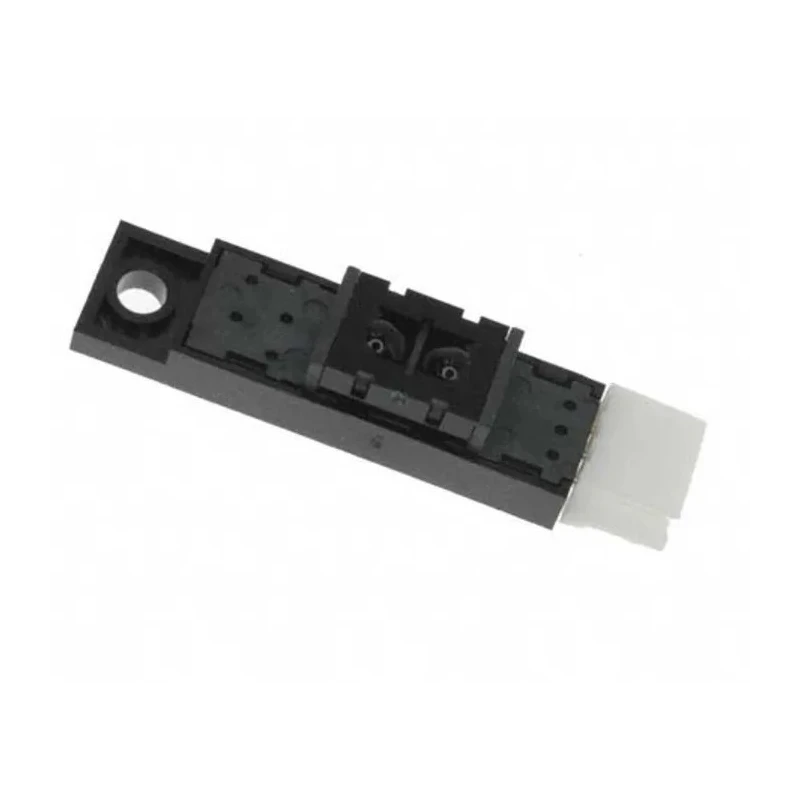

Sharp Surface Reflective Optical Sensor with Photointerrupter Output GP2A25J0000F

Sharp GP2A25J0000F is a robust surface reflective optical sensor with photointerrupter output designed for precise, non-contact sensing applications. Featuring a 3-pin surface mount configuration, it supports remote mounting or off-board designs offering flexibility in integration within electronic and industrial systems.

This sensor includes an emitter and detector aligned in the same direction, using light modulation to minimize ambient light disturbances and providing a long focal distance for enhanced sensing accuracy. It operates efficiently within a peak sensor distance of 27.9 mm and is highly responsive, with a typical rise time of 1 ms and fall time of 1 μs.

Constructed to function in temperatures ranging from -10°C to 60°C, the GP2A25J0000F is suitable for a broad range of industrial, electronic, and automation tasks requiring reliable position detection or presence sensing.

Its compact dimensions (39.8 mm length, 9 mm width, and 8.65 mm height) allow integration into space-constrained assemblies. Certified compliant with RoHS standards, it ensures minimal environmental impact. The sensor’s design includes additional screw fixing holes and a position pin to prevent misalignment during installation.

The analogue output signal type contributes to accurate and stable sensor response making it ideal for manufacturing, robotics, instrumentation, and process control environments. Features a peak sensor distance of 27.9 mm for reliable detection.

Employs photointerrupter output device technology for effective signal processing. Compact surface mount type measuring 39.8 mm length, 9 mm width, and 8.65 mm height. Delivers fast response with 1 ms typical rise time and 1 μs fall time.

Operates within temperature range of -10°C to 60°C ensuring durability. RoHS directive compliant, supporting environmental safety standards. Includes 3 pins for electrical connectivity in designs requiring remote or off-board configurations.

Optimized for reduced impact of ambient light through light modulation technique.

This sensor is widely used in applications including industrial automation, safety equipment, electronic instrumentation, and manufacturing systems where precise detection reliability is crucial. Explore premier sensor selections like the Sharp GP2A25J0000F in EnvMart’s Reflective Optical Sensors category.
