Sharp Snap-in Slotted Optical Switch Phototransistor Output GP1S173LCS2F

Free Delivery in India | Lowest Global Shipping Charges

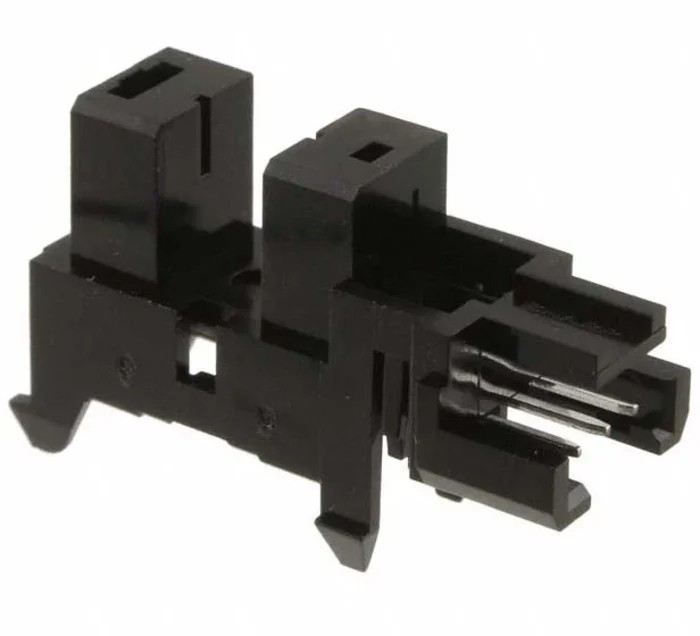

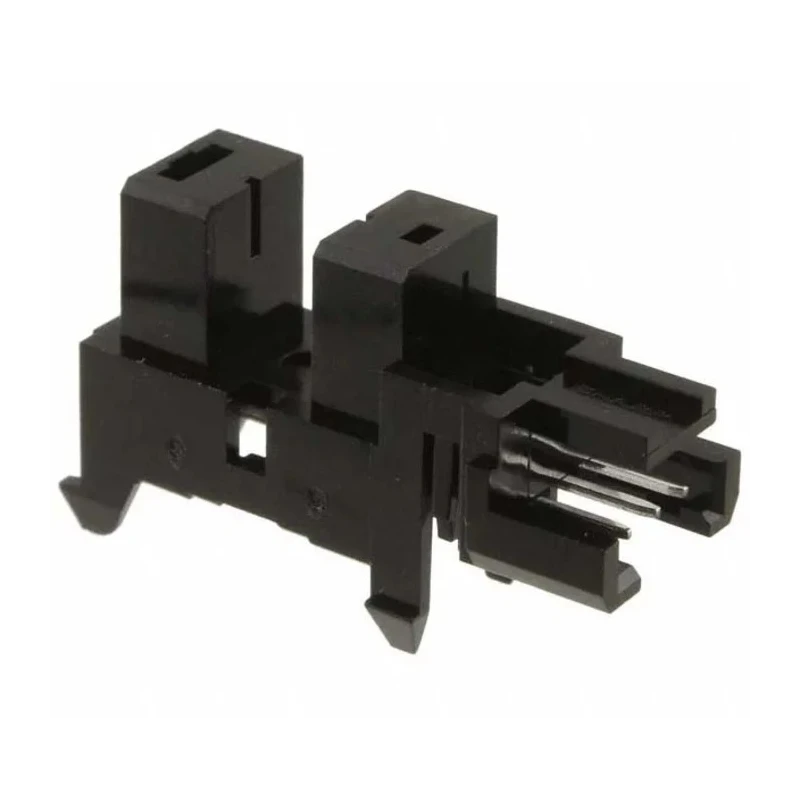

Sharp Snap-in Slotted Optical Switch Phototransistor Output GP1S173LCS2F

Name: Sharp Snap-in Slotted Optical Switch Phototransistor Output GP1S173LCS2F
Brand: Sharp
SKU: 213084
Price: 0.9 USD
Availability: InStock



Category Slotted Optical Switch Brand Sharp Condition New

Specifications

Country of Origin	China
Brand	Sharp
Height	16.3mm
Length	27.1mm
Model	GP1S173LCS2F
Width	9.8mm
Mount Type	Snap-in
Series	GP1S173L
Maximum Operating Temperature	95°C
Package Type	Pin
Minimum Operating Temperature	-30°C
Slot Width	4.3mm
Number Of Channels	1
Output Device	Phototransistor
Standards/Approvals	RoHS
Number of Pins	5
Typical Rise Time	3μs
Typical Fall Time	4μs
Output Signal Type	Analogue
Key Parameters Gap Width	5mm, Slit Width (detector side) : 0.5mm, Package : 17 x 12.8 x 8mm (without connector and hooks), Connector : Tyco Electronics JAPAN G.K. (173977-3 and 179228-3)

Key Features

Equipped with phototransistor output for analogue signal detection.
Snap-in mount type suitable for easy installation.
Compact size with dimensions 27.1mm length, 16.3mm height, and 9.8mm width.
Operating temperature range from -30°C to 95°C ensuring reliability in diverse environments.
Includes special position hooks compatible with plate thicknesses of 1.0, 1.2, and 1.6mm.
Slot width designed at 4.3mm for accurate optical sensing.
Fast response with typical rise time of 3 microseconds and fall time of 4 microseconds.
Compliant with RoHS directive ensuring no hazardous substances.

Product Description

Sharp GP1S173LCS2F Snap-in Slotted Optical Switch with phototransistor output is a high precision transmissive photointerrupter designed for non-contact sensing applications. It features opposing emitter and detector housed in a compact case, suitable for remote-mount or off-board designs with a three-pin connector. The device's snap-in mounting mechanism offers easy integration into various electronic and industrial equipment.

Its compact dimensions of 27.1mm length, 16.3mm height, and 9.8mm width allow use in constrained spaces. The slot width is 4.3mm, providing accurate position detection capabilities. Operating from temperatures as low as -30°C up to 95°C, it ensures stable performance even in challenging thermal conditions.

This optical switch is manufactured with compliance to RoHS standards ensuring environmental safety. The phototransistor output provides an analog signal type suitable for precise switching applications. It includes special position hooks compatible for plate thicknesses of 1.0mm, 1.2mm, and 1.6mm improving mounting flexibility.

Typical rise and fall times of 3 microseconds and 4 microseconds respectively enable fast and accurate detection. Ideal uses include industrial automation, electronic controls, optical sensing systems, and various commercial and manufacturing equipment requiring precise position detection.

Equipped with phototransistor output for analogue signal detection. Snap-in mount type suitable for easy installation. Compact size with dimensions 27.1mm length, 16.3mm height, and 9.8mm width. Operating temperature range from -30°C to 95°C ensuring reliability in diverse environments.

Includes special position hooks compatible with plate thicknesses of 1.0, 1.2, and 1.6mm. Slot width designed at 4.3mm for accurate optical sensing. Fast response with typical rise time of 3 microseconds and fall time of 4 microseconds.

Compliant with RoHS directive ensuring no hazardous substances. Connector type: Tyco Electronics JAPAN G.K. Manufactured in China and belongs to the GP1S173LC series. Explore more sensor solutions and optical switches at EnvMart for your industrial and electronic design needs.
