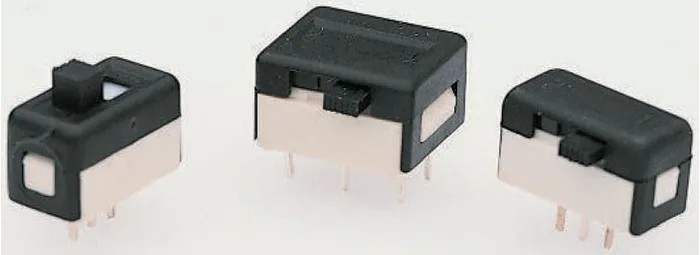

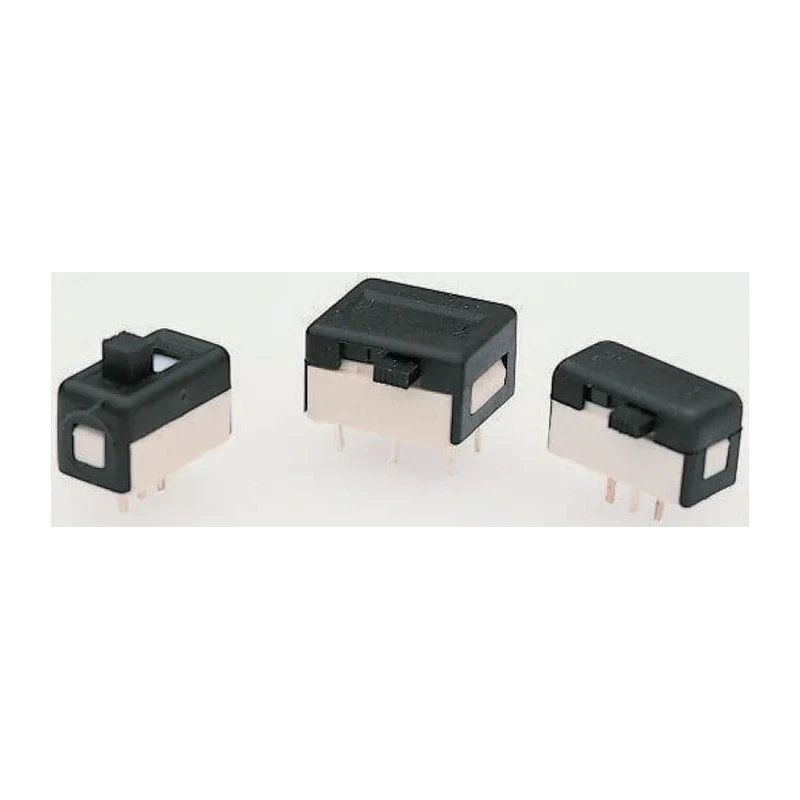

APEM PCB Slide Switch DPDT Latching 1A 30V DC Polyamide Actuator 25000N Series 25346NA
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Length | 14.1mm |
| Model | 25346NA |
| Depth | 8.1mm |
| Width | 14.1mm |
| Mount Type | PCB |
| Series | 25000N |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | UL |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 1A |
| Mechanical Life | 20000Operations |
| Electrical Life | 10000 cycles |
| Actuator Material | Polyamide |
Key Features
- Double Pole Double Throw (DPDT) contact configuration supports versatile circuit control.
- Robust latching switch operation ensures reliable state retention after actuation.
- Constructed with glass-filled polyamide actuator and high-temperature PBT thermoplastic case for durability.
- Mechanical life rated at 20000 operations and electrical life of 10000 cycles for long-term use.
- Through-hole terminal type allows secure mounting and soldering on PCB.
- Operates reliably in temperature range from -40°C to 85°C for varied environments.
- Complies with UL standards ensuring quality and safety.
- Non-illuminated switch designed for industrial and automation applications.
Product Description
APEM 25346NA PCB Slide Switch DPDT Latching is a miniature slide switch from the 25000N Series, engineered for precise industrial and electronic applications. It operates with a double pole double throw (DPDT) contact configuration and includes a latching mechanism to maintain switch position until deliberately toggled. Designed for through-hole PCB mounting, this switch features a durable glass-filled polyamide actuator coupled with a PBT high temperature thermoplastic case, offering resilience under demanding conditions.
The switch supports a contact current of 1 ampere and a DC voltage rating of 30V, making it suitable for low-voltage electronic controls. Measuring 14.1mm in length and width with an 8.1mm depth, it fits compact PCB designs. Its operating temperature range extends from -40°C to 85°C, ensuring reliable performance across a variety of industrial environments. The mechanical life expectancy of up to 20000 operations and electrical life of 10000 cycles offer long-term operational reliability.
This switch is non-illuminated and meets UL safety standards, adhering to rigorous quality controls. The sealed terminals help prevent flux ingress during soldering, enhancing durability. Originating from France, this APEM Slide Switch is ideal for use in industrial automation, electronic equipment manufacturing, and control systems where precise, dependable switching is essential.
Double Pole Double Throw (DPDT) configuration supports complex switching requirements. Solid latching mechanism provides stable and reliable state maintenance. Durable polyamide actuator and thermoplastic housing resist high temperatures.
Compact dimensions suitable for space-constrained PCB applications. Through-hole terminals ensure secure mounting and electrical connection. Wide temperature range operation from -40°C to 85°C adapts to harsh environments.
UL approved ensuring compliance with international safety standards. Sealed terminals protect against solder flux damage. Mechanical and electrical longevity ensures lasting performance. Manufactured in France to high quality standards.
Explore more in the Electronics & Electricals category for advanced switch solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this unit is 85°C, making it suitable for various industrial environments.
It has an electrical life rating of 10,000 cycles, ensuring reliable performance over time.
The actuator is made from glass-filled polyamide, while the case is constructed from high-temperature PBT thermoplastic.
It features through-hole terminals that allow for secure mounting and soldering on printed circuit boards (PCBs).
The contact current rating for this switch is 1 ampere, suitable for low-voltage electronic controls.
The mechanical life expectancy is rated at 20,000 operations, providing long-term operational reliability.
This unit measures 14.1mm in length and width, with a depth of 8.1mm, making it compact for PCB designs.
It complies with UL standards, ensuring quality and safety in its operation.
The minimum operating temperature is -40°C, allowing it to function in harsh conditions.
It utilizes a latching switch operation, which maintains its position until deliberately toggled.
This slide switch is manufactured in France, adhering to high quality standards.
