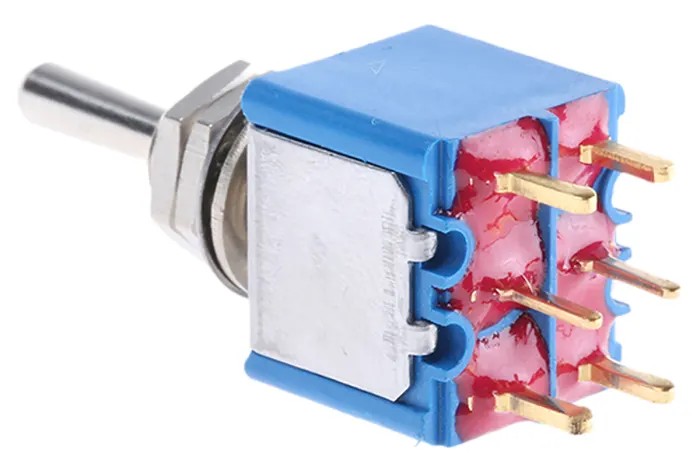

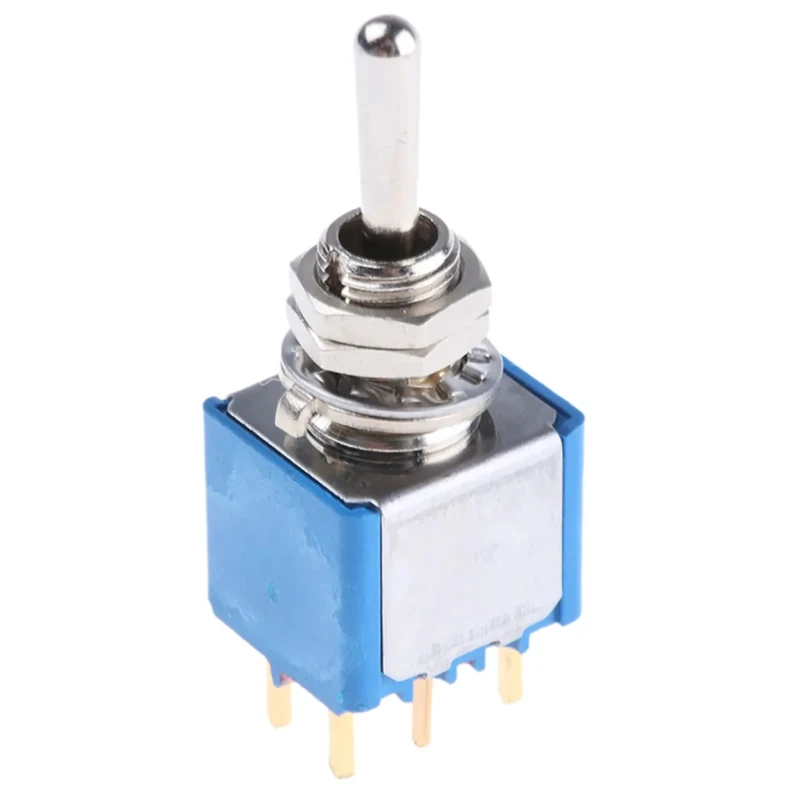

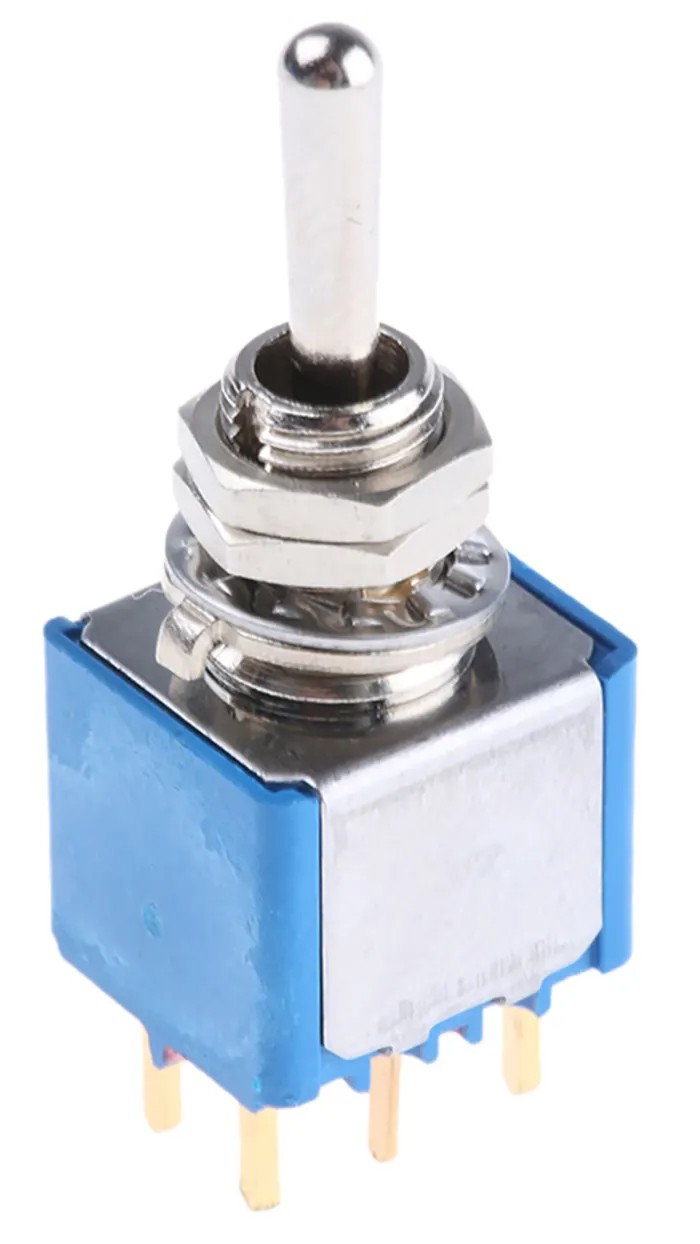

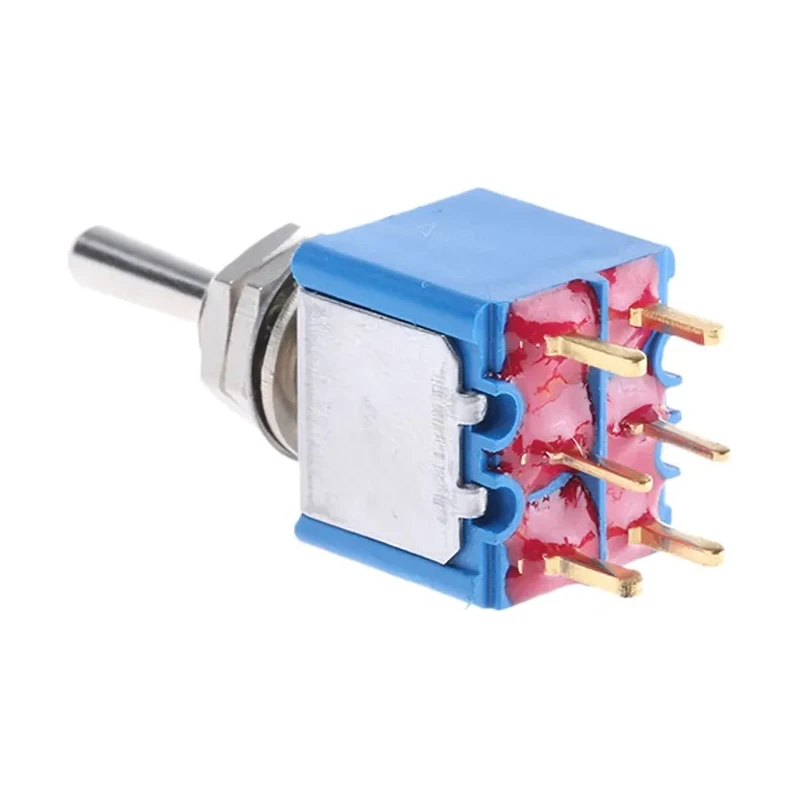

APEM Toggle Switch, PCB Mount, On-Off-On DPST, PC Terminal, 24 V dc, 250 V ac, Nickel Plated Brass Actuator 5249CDB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 5249CDB |
| Width | 12mm |
| Mount Type | PCB |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | PC Terminal |
| Standards/Approvals | UL, RoHS, NFVDE, CSA, CECC |
| Switch Operation | On-Off-On |
| Actuator Length | 10.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nickel Plated Brass |
| RS PRO Toggle Switch, PCB Mount, On-Off-On, DPDT, Through Hole TerminalBrand | RS PRO |
Key Features
- Designed for PCB mounting with a 6.5 mm panel cutout size.
- Switch operation is On-Off-On enabling dual switching positions with a center off.
- Contact configuration is DPST supporting two circuits.
- Electrical rating includes 400mA contact current capacity.
- Made with nickel plated brass actuator for durability and corrosion resistance.
- Mechanical life rating of 100000 operations ensures long-lasting performance.
- Operational temperature range from -40°C to 85°C suits various environments.
- Terminals are PC type for reliable connection to printed circuit boards.
Product Description
APEM 5249CDB toggle switch is a high-quality PCB-mounted On-Off-On DPST switch designed for industrial and electronic applications requiring reliable dual circuit control. Rated for 24 V dc and 250 V ac, it supports moderate current switching with a contact current of 400mA. The nickel plated brass actuator provides durability and corrosion resistance, ensuring a long service life.
This switch features a compact design with dimensions of 36mm height, 14mm length, and 12mm width, making it suitable for compact PCB layouts. Its 6.5 mm panel cutout size enables easy installation in tight enclosures. The PC terminal type connections ensure secure and stable mounting on printed circuit boards.
Capable of withstanding temperatures from -40°C up to 85°C, this switch is suitable for a variety of operating environments in industrial, manufacturing, automation, and electrical control systems. The mechanical life rating of 100000 operations guarantees durability and longevity.
The product meets various international standards including UL, RoHS, NFVDE, CSA, and CECC, assuring compliance with global regulatory requirements for safety and environmental impact.
PCB mount compatible with reliable PC terminal connections. On-Off-On operation with DPST contact configuration. Nickel plated brass actuator for enhanced durability. Suitable for electrical control circuits at 24 V dc and 250 V ac.
Compact size and robust construction for diverse industrial applications. Wide operating temperature range from -40°C to 85°C. High mechanical endurance with 100000 operations rated life. Conforms to multiple international quality and safety standards.
This toggle switch is ideal for integration into electrical equipment, industrial machinery, automation systems, and other environments demanding dependable and precise switching functions. Available with detailed technical documentation and support for PCB and 3D mechanical design integration, it facilitates seamless inclusion in new or replacement applications.
Explore more Toggle Switches and similar components in the Electronics & Electricals category at EnvMart to find suitable complementary products for your projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 24 V dc and 250 V ac, with a contact current capacity of 400 mA.
The mechanical life rating is 100,000 operations, ensuring long-lasting performance.
The dimensions are 36 mm in height, 14 mm in length, and 12 mm in width.
It is designed for PCB mounting with a PC terminal type connection for reliable installation.
The operational temperature range is from -40°C to 85°C, suitable for various environments.
The switch features a DPST (Double Pole Single Throw) contact configuration, allowing for dual circuit control.
The required panel cutout size for this model is 6.5 mm.
It complies with several international standards including UL, RoHS, NFVDE, CSA, and CECC.
The actuator is made of nickel plated brass, providing durability and corrosion resistance.
This switch operates in an On-Off-On configuration, allowing for dual switching positions with a center off.
It is suitable for integration into electrical equipment, industrial machinery, automation systems, and other environments requiring reliable switching functions.
The actuator length is 10.5 mm, which is designed for ease of operation.
