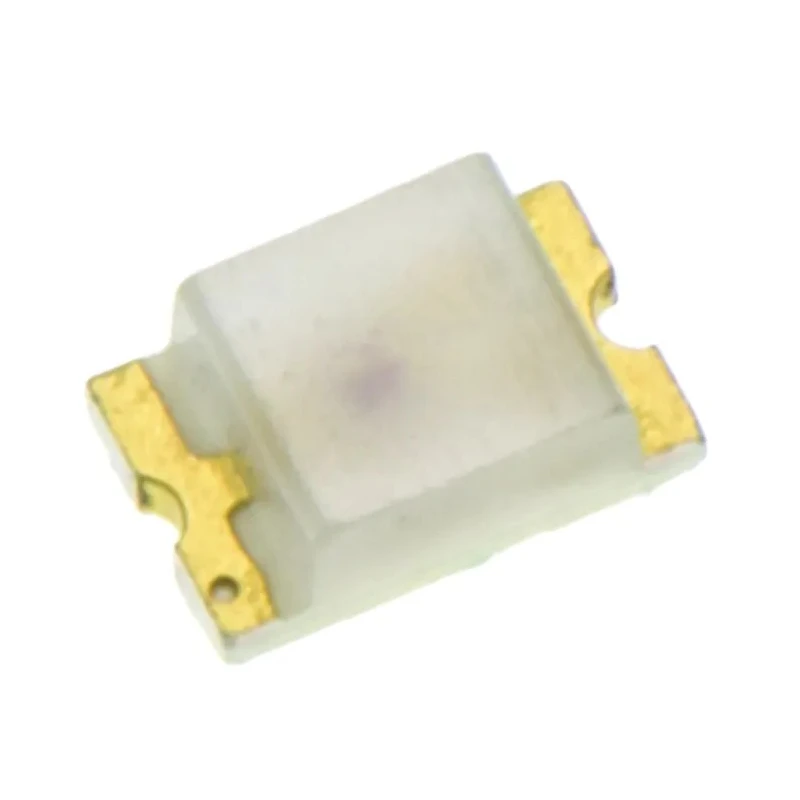

Broadcom 1.9 V Red LED 2012 Surface Chip LED HSMC-C170

Broadcom HSMC-C170 is a high-quality red LED designed as a 2012 surface mount chip LED with a 1.9 V forward voltage and 25 mA maximum forward current. It is engineered for efficient brightness with a luminosity of 90 mcd and a dominant wavelength of 626 nm, producing vivid red light suitable for indicator and display applications.

This chip LED conforms to the widely accepted 2.0 x 1.25 mm footprint with a low profile height of 0.8 mm, enabling compact and reliable assembly in electronic devices. Its wide 170° viewing angle and clear rectangular lens provide broad light dispersion ideal for keypad backlighting, push-button illumination, LCD backlights, symbol lighting, and front panel indicators across various electronic equipment.

The device operates within an extended temperature range from -40°C to +85°C, ensuring durability in various industrial and commercial environments. The package is supplied on tape and reel, facilitating automated insertion processes for mass production efficiency. The HSMC-C170 series LEDs comply with RoHS environmental regulations, underscoring their quality and compliance for modern electronic manufacturing.

Compact 2012 package with industry-standard footprint. Surface mount technology for easy PCB placement. Maximum power dissipation of 60 mW supporting efficient energy use. Wide viewing angle of 170° for enhanced visibility.

Clear rectangular lens design with 2 x 1.25 x 0.8 mm dimensions. Environmental compliance with RoHS directive. Robust operating temperature range from -40°C to +85°C. Packaged in tape and reel for manufacturing automation.

This Broadcom red LED is suitable for industrial, electronic component assembly, consumer electronics, and display applications. Browse EnvMart's extensive selection of LEDs and electronic components for compatible products and accessories.
