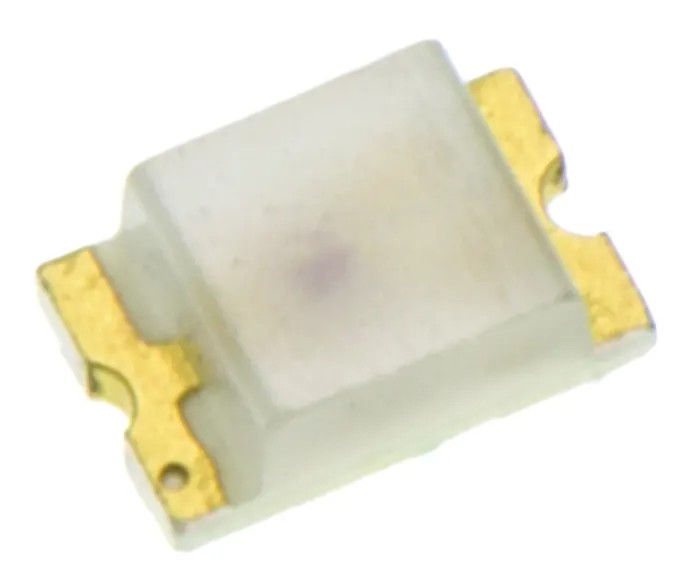

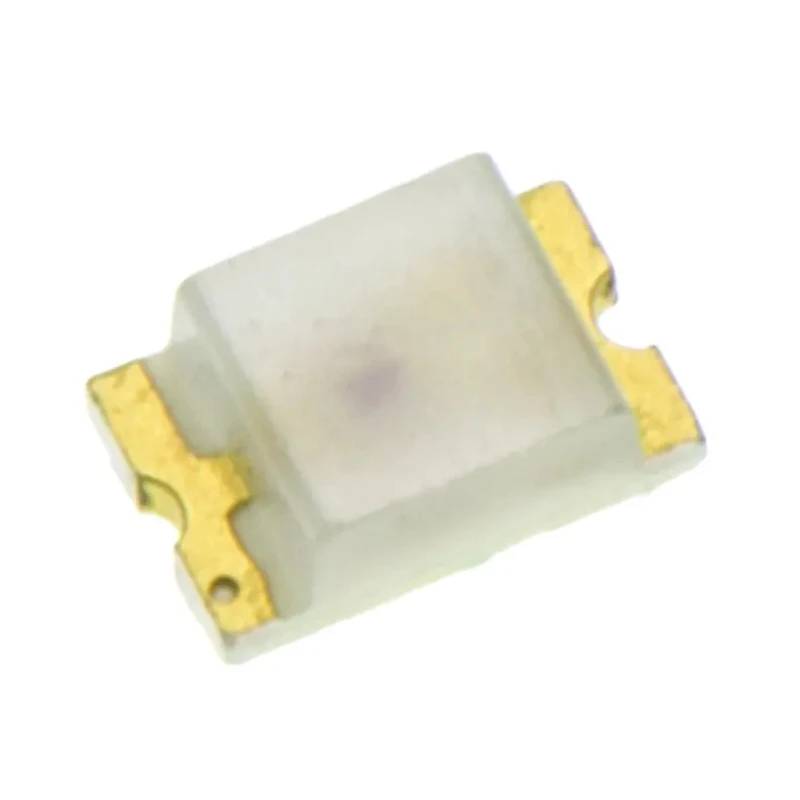

Broadcom 1.9 V 60 mW 25 mA Amber Surface Mount Chip LED 2012 Package HSMA-C170

Broadcom HSMA-C170 is a high-quality amber surface mount chip LED engineered for precise illumination in electronic components and displays. It operates at a forward voltage of 1.9 V with a maximum power dissipation of 60 mW and maximum forward current of 25 mA, ensuring reliable performance.

This LED is housed in a compact 2012 package measuring 2 x 1.25 x 0.8 mm with a rectangular, clear lens delivering uniform light output and a wide viewing angle of 170°. The LED provides a luminous intensity of 90 mcd and has a dominant wavelength of 592 nm, producing vibrant amber light suitable for indicator and backlighting applications.

The surface mount design with tape and reel packaging enables efficient automated assembly and integration in electronic devices. It complies with RoHS standards, ensuring environmental safety and reduced hazardous materials. The device is engineered to operate in a temperature range of -40°C to +85°C to accommodate harsh industrial or commercial environments.

Broadcom HSMA-C170 LEDs are ideal for industrial, electronic, and commercial applications such as keypad backlighting, push button backlighting, LCD backlighting, symbol illumination, and front panel indicators. Their compact footprint and bright amber light output make them preferred components in modern electronic assemblies and device displays.

Compact 2012 package suitable for surface mounting. Amber LED with 90 mcd brightness and 592 nm wavelength. Wide viewing angle of 170° for uniform lighting. Maximum forward current of 25 mA. Maximum power dissipation 60 mW.

Tape and reel packaging for efficient manufacturing. RoHS compliant with industrial temperature operation range. Applications include keypad, push button, LCD backlighting, and front panel indicators. Explore our Electronics Components and LED category at EnvMart for more advanced and reliable LED solutions suitable for diverse industrial and commercial needs.
