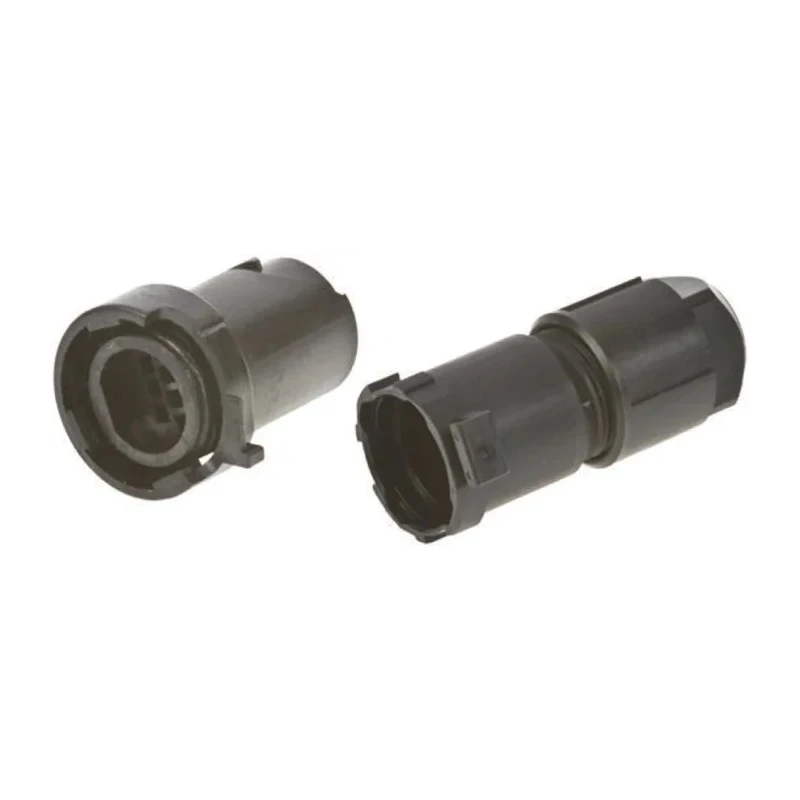

JAE Circular Connector 4 Contacts Cable Mount 20 mm Socket Male IP67 200V 5A Synthetic Resin Housing JN1HS04MK2-R

Free Delivery in India | Lowest Global Shipping Charges

JAE Circular Connector 4 Contacts Cable Mount 20 mm Socket Male IP67 200V 5A Synthetic Resin Housing JN1HS04MK2-R



Category Industrial Circular Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	200V
Brand	JAE
Orientation	Straight
Current	5A
Model	JN1HS04MK2-R
IP Rating	IP67
Mount Type	Cable
Housing Material	Synthetic Resin
Contact Material	Copper
Series	JN1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-20°C
Pole Format	4
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Male
Shell Size	20.3 mm
Mating Type	Push Lock
Connector Size	20 mm
Plug/Socket	Socket

Key Features

Constructed with synthetic resin housing for robust durability.
Rated for 200V voltage and 5A current capacity.
Features push lock mating type with a straight orientation.
Silver plated copper contacts ensure reliable conductivity.
Temperature range from -20°C to 125°C for versatile operation.
Terminated via solder type suitable for cable mounting.
Designed with a 20.3 mm shell size and 4 poles format.
IP67 rated for waterproof and dustproof performance.

Product Description

JAE JN1HS04MK2-R is a high-quality circular connector designed for industrial use demanding reliable cable connections. This 4-contact male socket features a 20 mm connector size with a secure push lock mechanism, ensuring easy and durable mating with industrial equipment.

The connector body is molded from synthetic resin that provides excellent insulation and mechanical protection. It supports a voltage rating of 200V and a current of 5A suitable for moderate power transmission needs.

Its silver-plated copper contacts enhance electrical connectivity and minimize resistance. The connector offers an IP67 ingress protection rating, making it completely dust-tight and water-resistant, ideal for harsh manufacturing, automation, and outdoor environments.

Operating temperature ranges from -20°C to 125°C, catering to applications requiring thermal stability. The termination is solder type designed for cable mounting, making installation straightforward.

The series JN1 provides a push and twist type one-touch lock mechanism to enhance connection reliability. The straight orientation and compact size (shell size 20.3 mm) add to its versatile usability.

Constructed with synthetic resin housing for robust durability. Rated for 200V voltage and 5A current capacity. Features push lock mating type with a straight orientation. Silver plated copper contacts ensure reliable conductivity.

Temperature range from -20°C to 125°C for versatile operation. Terminated via solder type suitable for cable mounting. Designed with a 20.3 mm shell size and 4 poles format. IP67 rated for waterproof and dustproof performance.

This circular connector is widely applicable in industrial electronic components, power and connectors sectors, delivering efficient and secure connections in machinery and equipment installations. It is suitable for use in automation, manufacturing, and electrical power systems where durability and reliable connection are essential.
