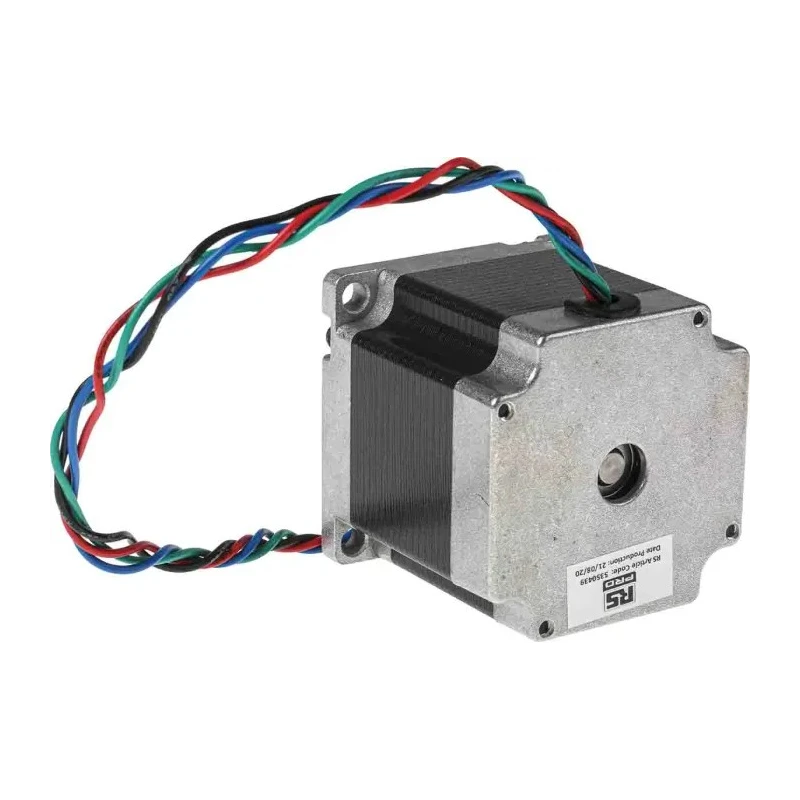

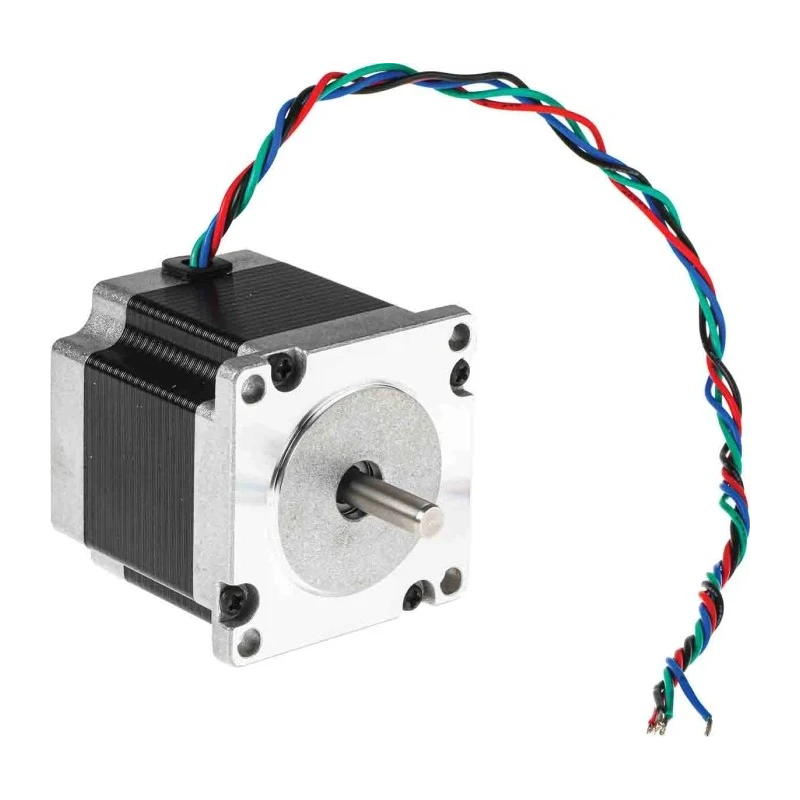

RND RS PRO Stepper Motor 2.5V, 1.26 Nm Holding Torque, 1.8° Step Angle, 56.4 x 56.4 mm Frame, 6.35 mm Shaft 535-0439

Free Delivery in India | Lowest Global Shipping Charges

RND RS PRO Stepper Motor 2.5V, 1.26 Nm Holding Torque, 1.8° Step Angle, 56.4 x 56.4 mm Frame, 6.35 mm Shaft 535-0439



Category Stepper Motors Brand RND Condition New

Specifications

Country of Origin	China
Voltage	2.5V
Brand	RND
Model	535-0439
Depth	56mm
IP Rating	IP54, IP65
Current Rating	2.8A
Frame Size	56.4 x 56.4 mm
Output Speed	186rpm
Shaft Diameter	6.35mm
Shaft Length	22mm
Standards/Approvals	RoHS Compliant
Step Angle	1.8°
Holding Torque	1.26Nm
Winding Arrangement	Unipolar, Bipolar
Number of Pole Pairs	1
Detent Torque	42mNm
RND RND 420 Series Stepper Motor, 1.26Nm Torque, 1.8 °, 6.3 mm ShaftBrand	RND
RS PRO Hybrid Stepper Motor, 7.4 V, 1.8°, 56.4 x 56.4mm Frame, 6.35mm ShaftBrand	RS PRO

Key Features

Stepper motor offers a high holding torque of 1.26 Nm for stable positioning.
1.8° step angle enables fine resolution and smooth operation.
Frame size is 56.4 x 56.4 mm, suitable for compact device integration.
Shaft diameter measures 6.35 mm, with a shaft length of 22 mm for versatile mounting.
Winding arrangement supports unipolar and bipolar configurations for flexibility.
Current rating is 2.8 A with resistance per phase at 0.9 Ω ensuring efficiency.
Rated output speed is 186 rpm, optimal for various industrial applications.
IP rating of IP54 and IP65 provides protection against dust and water ingress.

Product Description

RND 535-0439 is a high-precision RS PRO hybrid stepper motor with a step angle of 1.8°, delivering 1.26 Nm holding torque at a voltage rating of 2.5 V. The motor features a frame size of 56.4 x 56.4 mm and a shaft diameter of 6.35 mm, with a shaft length of 22 mm.

This brushless hybrid stepper motor combines permanent magnet and variable reluctance technologies, enabling exact and controlled movements essential in automation, robotics, and instrumentation. It is designed for applications requiring precise stepping and positioning, including 3D printers, optical devices, and CNC machinery.

The motor is capable of both unipolar and bipolar winding arrangements, supporting a current rating of 2.8 A and resistance of 0.9 Ω per phase, facilitating efficient power usage. The output speed of up to 186 rpm alongside a detent torque of 42 mNm ensures smooth, stable operation even in power-off conditions.

Designed with ruggedness in mind, this motor carries IP54 and IP65 ratings for protection against dust and water ingress, making it suitable for harsh industrial environments. It conforms to RoHS standards, ensuring it is free from hazardous substances.

High holding torque of 1.26 Nm for reliable positioning. 1.8° step angle enhances precision and efficiency. Compact 56.4 x 56.4 mm frame suitable for tight spaces. 6.35 mm shaft diameter with 22 mm shaft length for flexible mounting options.

Supports unipolar and bipolar winding arrangements to match system requirements. IP54 and IP65 rated for robust performance in industrial settings. RoHS compliant ensuring eco-friendly manufacturing. Applications include industrial automation, robotics, and precision instruments.

Explore the RS PRO range for quality industrial electric motors and related automation components suitable for laboratory, manufacturing, and control systems applications on EnvMart.
