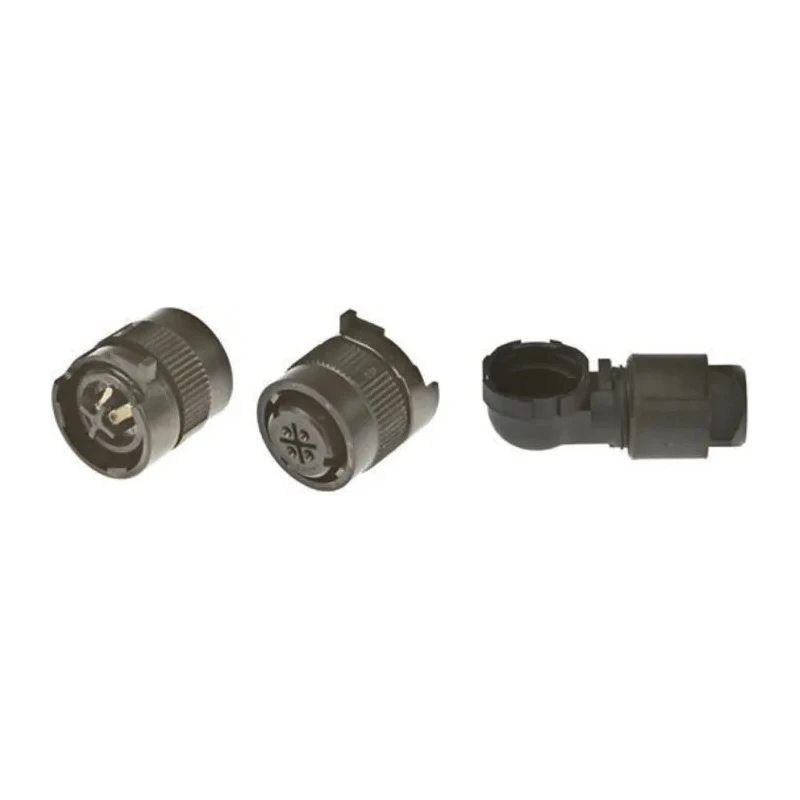

JAE Circular Connector 4 Contacts 20 mm Cable Mount Plug Female IP67 200V 5A JN1FS04FK2

Free Delivery in India | Lowest Global Shipping Charges

JAE Circular Connector 4 Contacts 20 mm Cable Mount Plug Female IP67 200V 5A JN1FS04FK2



Category Industrial Circular Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	200V
Brand	JAE
Orientation	Right Angle
Current	5A
Model	JN1FS04FK2
IP Rating	IP67
Mount Type	Cable
Housing Material	Synthetic Resin
Contact Material	Copper
Series	JN1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-20°C
Pole Format	4
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Female
Shell Size	19 mm
Mating Type	Push Lock
Connector Size	20 mm
Plug/Socket	Plug
JAE Connector, 4 Contacts, Cable Mount, Plug, Female, IP67, JN1 SeriesBrand	JAE

Key Features

Features 4 contact points ensuring stable electrical transmission.
Cable mount type with a 20 mm connector size and 19 mm shell size for compact installation.
Supports a nominal current of 5A and voltage rating of 200V.
IP67 rated housing provides waterproof and dustproof protection.
Connector uses silver-plated copper contacts for durable conductivity.
Right angle orientation with push lock mating type for secure connection.
Operating temperature range from -20°C to 125°C suitable for varied industrial conditions.
Constructed with synthetic resin housing for robust mechanical protection.

Product Description

JAE JN1FS04FK2 is an Industrial Circular Connector offering 4 female contacts designed for cable mounting applications. This plug connector features a 20 mm size and 19 mm shell diameter, suitable for space-constrained environments requiring dependable electrical connections.

Rated for 200V and 5A current, the JN1FS04FK2 provides secure and stable connectivity with its silver-plated copper contacts and push-lock mating mechanism. The right-angle orientation of the plug facilitates flexible cable routing in assemblies.

This model is built to withstand demanding industrial conditions with an IP67 rating, ensuring complete protection against dust ingress and water immersion. Its synthetic resin housing delivers mechanical durability along with temperature tolerance from -20°C to 125°C, making it ideal for applications in automation, manufacturing equipment, and control systems.

The solder termination type allows for high-integrity wire connections, essential in industrial environments requiring vibration resistance and reliability. Features 4 contact points ensuring stable electrical transmission.

Cable mount type with a 20 mm connector size and 19 mm shell size for compact installation. Supports a nominal current of 5A and voltage rating of 200V. IP67 rated housing provides waterproof and dustproof protection. Connector uses silver-plated copper contacts for durable conductivity.

Right angle orientation with push lock mating type for secure connection. Operating temperature range from -20°C to 125°C suitable for varied industrial conditions. Constructed with synthetic resin housing for robust mechanical protection.

Termination type is solder, ensuring strong and reliable wire connections.

This JAE circular connector JN1 series is widely used in industrial automation, laboratory instrumentation, manufacturing, and electronic assemblies where secure, waterproof connections are critical. Its robust design supports demanding electrical and environmental conditions, ensuring long service life and minimal maintenance.
