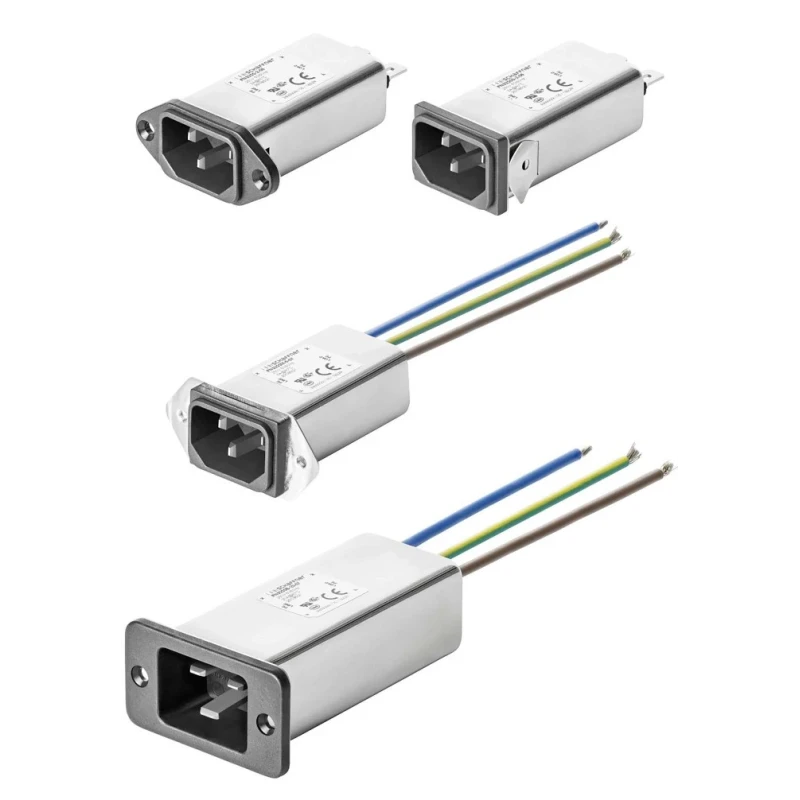

Schaffner IEC Filter 250V AC 20A Front Mount Male 2 Pole Wire FN9255-20-07

Schaffner FN9255-20-07 IEC Filter is a specialized component designed to provide efficient electromagnetic compatibility (EMC) filtering in electronic and electrical systems. Rated at 250V AC and 20A current, this front mount filter features a male IEC connector with a 2 pole switch type and wire termination, delivering reliable performance in compact applications.

The dual-stage design provides exceptional attenuation from 150kHz up to 300MHz, making it highly effective in reducing electromagnetic interference across a wide frequency range. Its compact dimensions of 30mm height, 53mm width, and 99.9mm depth allow easy integration into various equipment front panels or chassis.

Designed for industrial, medical, computing, and household electronic applications, the FN9255-20-07 ensures superior thermal behavior with an operating temperature range from -25°C to 85°C. The IEC Connector is type C20 with male contacts, facilitating secure and standard-compliant connections. The filter is manufactured in Thailand, emphasizing quality control standards.

The dual-stage filter design ensures exceptional attenuation performance from 150kHz to 300MHz. Compact housing offers optimized integration at IEC inlet point of entry. Suitable for mounting with rear, front flange, or snap-in options.

Operates reliably between -25°C and 85°C, ensuring high saturation resistance and thermal stability. IEC Connector type C20, male contact gender, and wire termination type for easy installation. Typical applications include medical devices, computing equipment, and household electronics.

Dimensions: 30mm height, 53mm width, and 99.9mm depth for compact form factor. Manufactured in Thailand, ensuring quality and reliability.

This IEC filter is ideal for use in medical devices (including MDD and IVDD), computing accessories, LCD/OLED displays, test and measurement equipment, and various single-phase power supplies such as switch-mode power supplies (SMPS). Its effective noise suppression and durability make it an essential component for product designs requiring EMI filtering.
