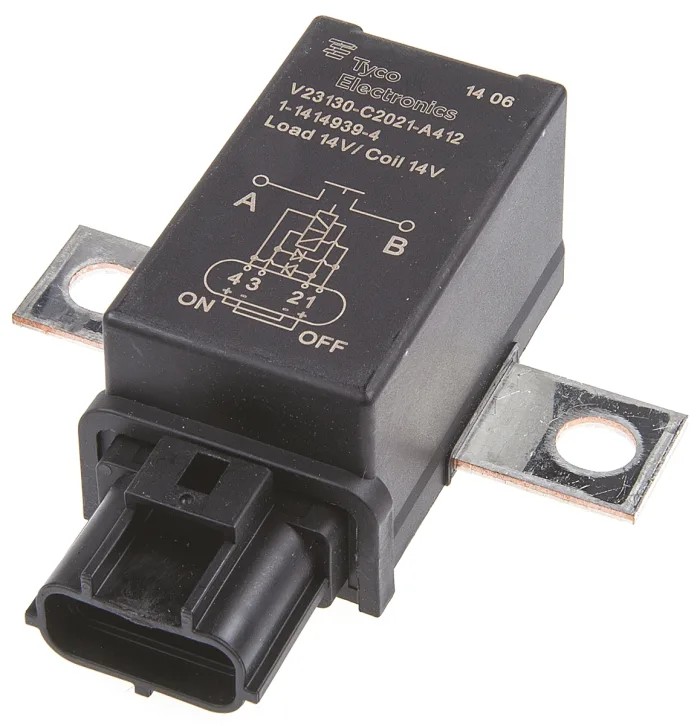

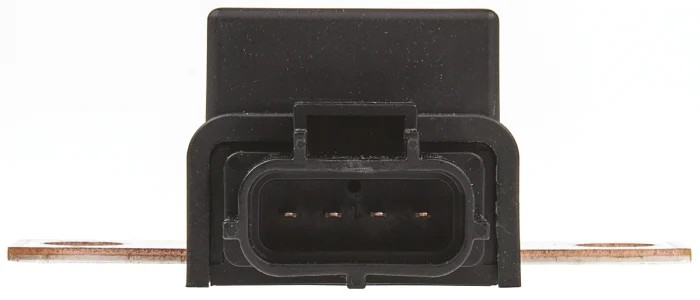

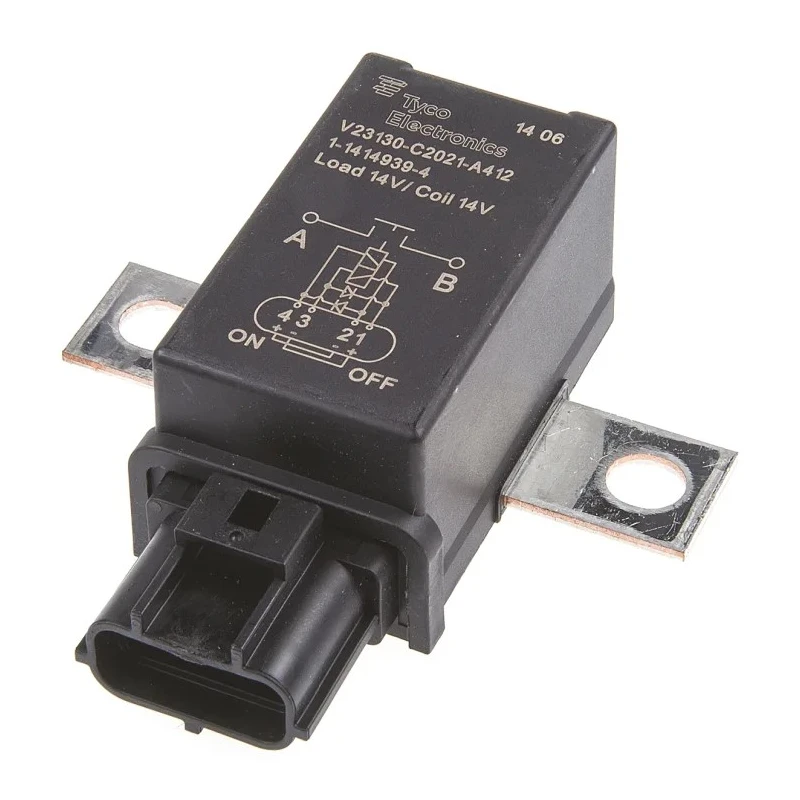

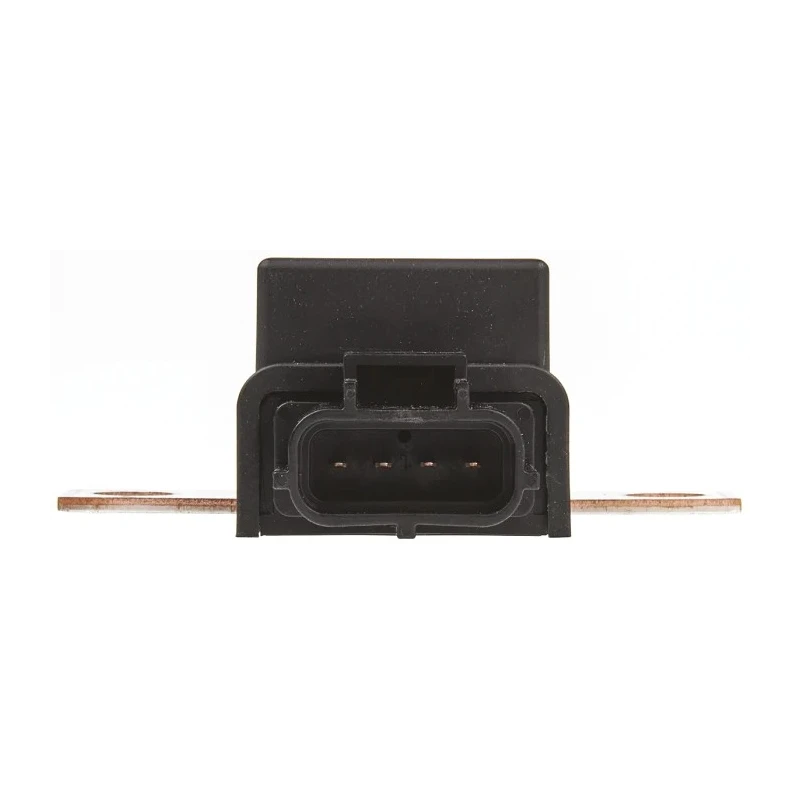

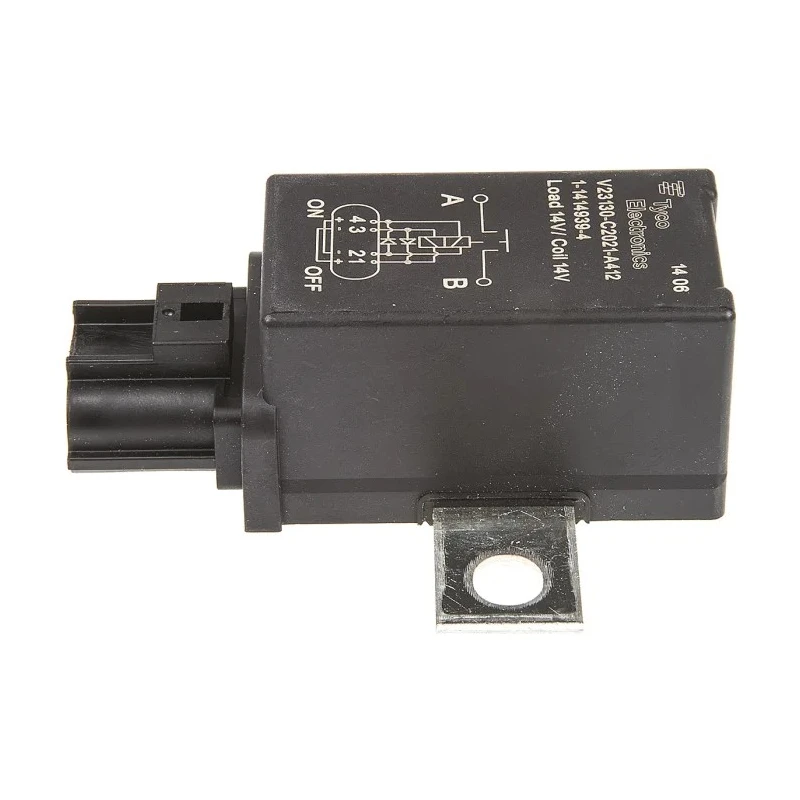

TE Connectivity Automotive Relay 12V DC Coil Voltage 190A Switching Current SPST V23130C2021A412 1-1414939-4

TE Connectivity V23130C2021A412 1-1414939-4 is a high-performance automotive relay designed with a 12V DC coil voltage and rated to handle a switching current of 190A. This SPST (Single Pole Single Throw) non-latching relay in the BDS-A series offers robust electrical characteristics and mechanical durability, suitable for demanding automotive environments.

The relay coil consumes 7 watts of power with a coil resistance of 4.7 ohms, providing predictable electromagnetic performance. It features a screw terminal type for reliable electrical connections and easy installation. The physical dimensions of 83mm length, 86mm depth, and 33mm height enable versatile mounting options including flange mounting configurations.

Engineered to operate within extreme temperature ranges from -40°C up to 120°C, this relay maintains stable performance across diverse operating conditions. The isolation rating between coil and contact is 500Vrms, ensuring high insulation and safety margins in automotive electrical systems.

The contacts utilize high-quality silver alloy material to provide excellent conductivity and durability, supporting high peak current capabilities up to 1500A momentarily, with a continuous current limit of 190A at 85°C. This makes the relay ideal for critical automotive applications such as coil suppression circuits, cooling fan control, and wiper motor circuits.

Certified to meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, the product delivers compliance assurance for electrostatic discharge protection and safety. Manufactured in Portugal, the relay reflects TE Connectivity’s commitment to quality and reliability in automotive electrical components.

The coil power rating is 7 watts providing efficient operation at 12V DC. Coil resistance is precisely 4.7 ohms ensuring reliable coil activation. The relay features a single pole single throw (SPST) contact configuration with one pole.

Constructed with screw terminal type for secure and easy mounting. Operates reliably within a wide temperature range from -40°C to 120°C. Compact flange mount design with dimensions 83mm (L) x 86mm (D) x 33mm (H). Isolation voltage between coil and contacts is rated at 500Vrms for safety compliance.

Contact material made from silver alloy ensuring high conductivity and longevity. Designed for automotive applications including coil suppression, cooling fan, and wiper circuits. Manufactured in Portugal and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.

This automotive relay is essential for reliable switching in automotive electronics, supporting industrial, automotive, and manufacturing applications for load control and signal conditioning. Explore related Automotive Relays and components at EnvMart for comprehensive industrial sourcing needs.
