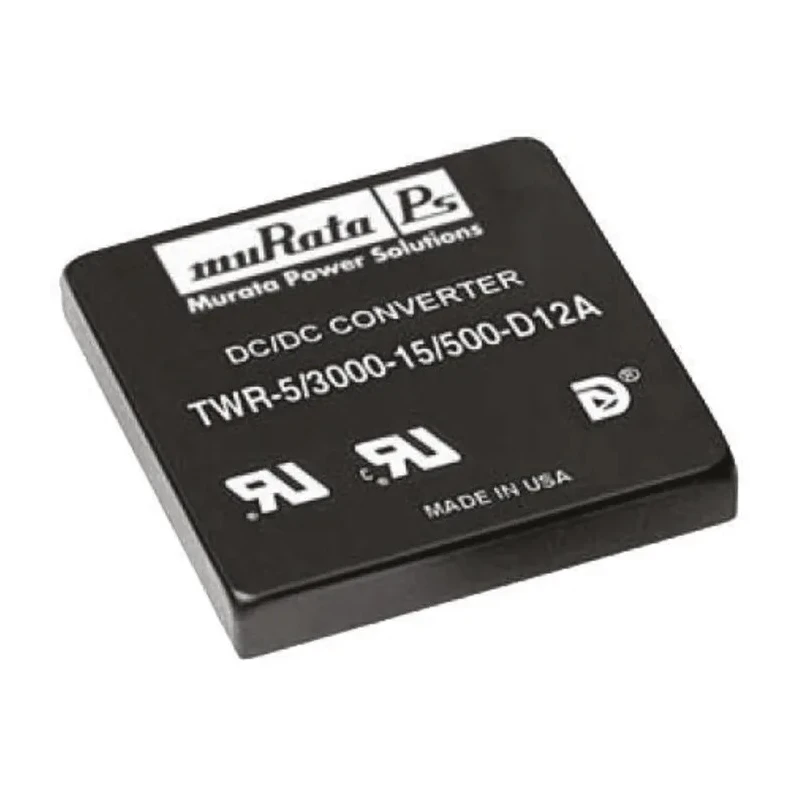

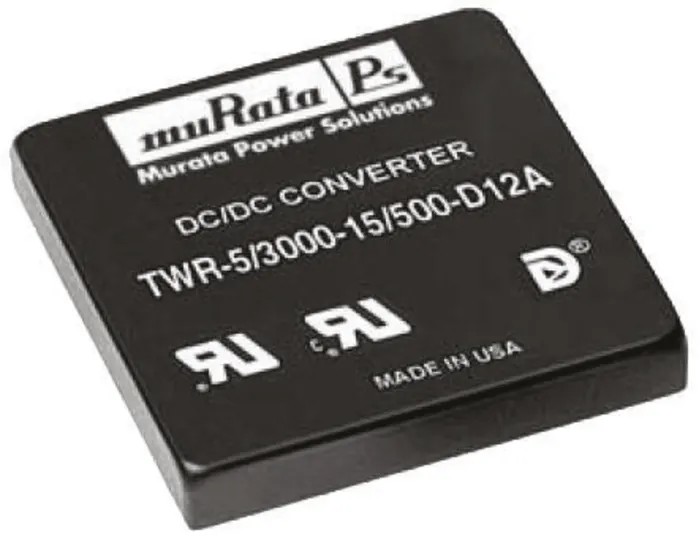

Murata Power Solutions DC/DC Converter, 5V dc Output, 3 A, 36V dc Maximum Input, 9V Minimum Input TWR-5/3000-15/500-D12A-C
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions TWR DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 82% |
| Length | 50.8mm |
| Model | TWR-5/3000-15/500-D12A-C |
| Depth | 11.43mm |
| Gross Weight | 77g |
| Width | 50.8mm |
| Mount Type | Through Hole |
| Series | TWR |
| Maximum Operating Temperature | +100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 3 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 1.5kV dc |
| Output Current 2 | 0.5A |
| Output Voltage 2 | 15V dc |
Key Features
- Compact DIP package with through-hole mounting for easy PCB integration.
- Provides three isolated outputs with output voltages at 5V and 15V.
- Operates efficiently with 82% efficiency, minimizing power loss.
- Wide operating temperature range from -40°C to +100°C for harsh environments.
- High isolation voltage of 1.5kV dc ensures safety and noise reduction.
- Low ripple and noise of 150 mV peak-to-peak for stable output performance.
- 8-pin design with 50.8 mm length and width, and 11.43 mm depth.
- RoHS compliant, supporting environmentally responsible designs.
Product Description
Murata Power Solutions model TWR-5/3000-15/500-D12A-C is a high-performance DC/DC converter designed for industrial and electronic applications requiring reliable power conversion. The converter delivers a regulated 5V dc output at 3 A, supporting up to 20W maximum output power. It accepts a broad input voltage range from 9V to 36V dc, accommodating flexible power sources.
This series features a fully isolated design with 1.5kV dc isolation voltage, enhancing safety and noise immunity in complex electrical environments. Its through-hole DIP package with an 8-pin configuration enables easy mounting on printed circuit boards. The unit operates efficiently at 82%, reducing thermal load and energy waste during continuous use.
Operating under temperatures from -40°C up to +100°C, this converter suits demanding environmental conditions in industrial, manufacturing, and automation settings. The product is RoHS compliant, supporting eco-friendly manufacturing processes and product lifecycles.
The converter provides three outputs, with primary voltages at 5V and 15V dc, featuring low ripple and noise characteristics (150 mV pk-pk) for precision electronics requiring stable power delivery. It is encased in a fully encapsulated metal case with UL 94V-0 rated package material, ensuring durability and flame retardance.
Typical applications include embedded systems, communication devices, instrumentation, and control systems where isolated, efficient DC/DC voltage conversion is crucial. The compact form factor (50.8 mm x 50.8 mm x 11.43 mm) facilitates use in space-constrained setups.
Compact DIP package with through-hole mounting for easy PCB integration. Three isolated outputs with voltages of 5V and 15V. High efficiency of 82%, minimizing power dissipation. Wide operating temperature range from -40°C to +100°C.
1.5kV dc isolation voltage for safety and noise reduction. Low ripple and noise at 150 mV peak-to-peak for stable output. Robust fully encapsulated metal case with UL 94V-0 material. RoHS compliant for environmentally safe manufacturing.
Explore more Murata Power Solutions DC/DC Converters and related power management components for diverse industrial and electronic design requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 20W.
It accepts a broad input voltage range from 9V to 36V dc.
This converter provides three isolated outputs with voltages of 5V and 15V dc.
It operates with an efficiency of 82%, minimizing power loss.
The isolation voltage is 1.5kV dc, enhancing safety and noise immunity.
The operating temperature range is from -40°C to +100°C.
The dimensions of this model are 50.8 mm in length, 50.8 mm in width, and 11.43 mm in depth.
This model features three outputs.
The ripple and noise is specified at 150 mV peak-to-peak.
It uses a through-hole mounting type for easy PCB integration.
Yes, this converter is RoHS compliant, supporting environmentally responsible designs.
The gross weight of this unit is 77 grams.
