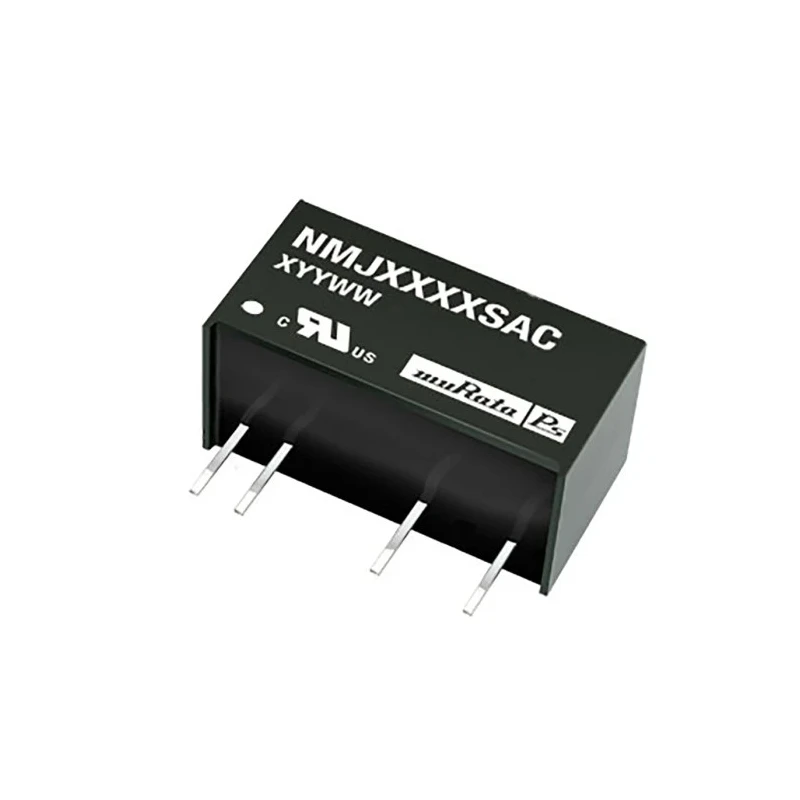

Murata Power Solutions 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter 15V DC Output 66mA 5.5V DC NMJ0515SAC

Murata Power Solutions NMJ0515SAC is a 1 watt SIP style DC-DC converter offering a single or dual output with 15V DC output voltage at 66mA output current. The device operates with input voltages ranging from 4.5V to 5.5V DC, packaged in a 7-pin SIP footprint suitable for through hole mounting. The converter is fully encapsulated, utilizing toroidal magnetics and internal surface mount device (SMD) construction to ensure robust durability and long operational life. It supports wide temperature operation from -40°C up to 85°C, ideal for demanding industrial and electronic environments.

This DC/DC converter series provides 5.2kV DC isolation voltage enhancing electrical safety by isolating input and output. The converter achieves a power efficiency of 71%, balancing performance and thermal management effectively. With a compact package size measuring 19.5mm length, 19.5mm width, and 12.5mm depth, the device facilitates space-efficient design integration. It’s recognized under UL60950 standards, confirming suitability for applications requiring safety compliance and miniaturization.

The NMJ series is pin compatible with the NMV series SIP DC/DC Converters, offering ease of upgrade and replacement. The product’s mean time before failure (MTBF) rating is an impressive 9,980,000 hours, supporting reliable, long-term usage in industrial power supplies, electronic components, and embedded systems.

The converter features a maximum output power of 1 watt for efficient power delivery. It supports input voltages from 4.5V to 5.5V DC for versatile compatibility. The 7-pin SIP package allows through hole mounting for secure and stable installation.

Offers 5.2kV DC isolation ensuring safety in sensitive applications. Designed to operate from -40°C to 85°C for reliable performance in harsh environments. Achieves an efficiency of 71% helping to reduce power loss and heat.

Compact dimensions of 19.5mm length, 19.5mm width, and 12.5mm depth facilitate space-saving integration. Fully encapsulated with toroidal magnetics and internal SMD construction for durability. Ideal for industrial, electronic, and power supply applications requiring isolated DC voltage conversion.

UL60950 recognized ensuring compliance for safety and miniaturization.

This converter is well-suited for industrial tools, electronics manufacturing, embedded systems, and power supply modules demanding compact, reliable isolated DC/DC voltage sources. The highly reliable design and extended temperature range allow use in HVAC, manufacturing, and laboratory environments.
