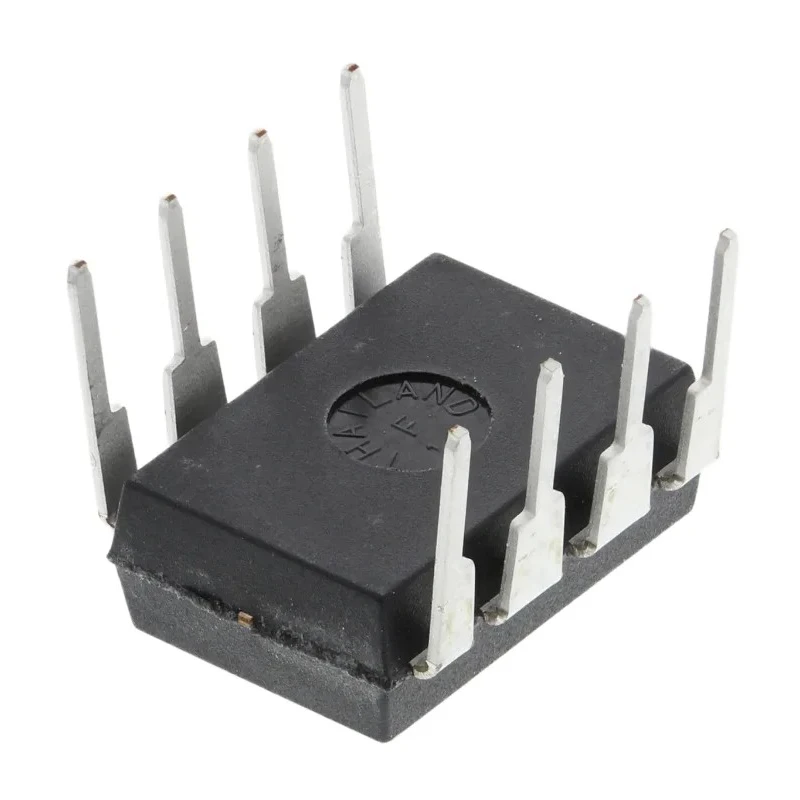

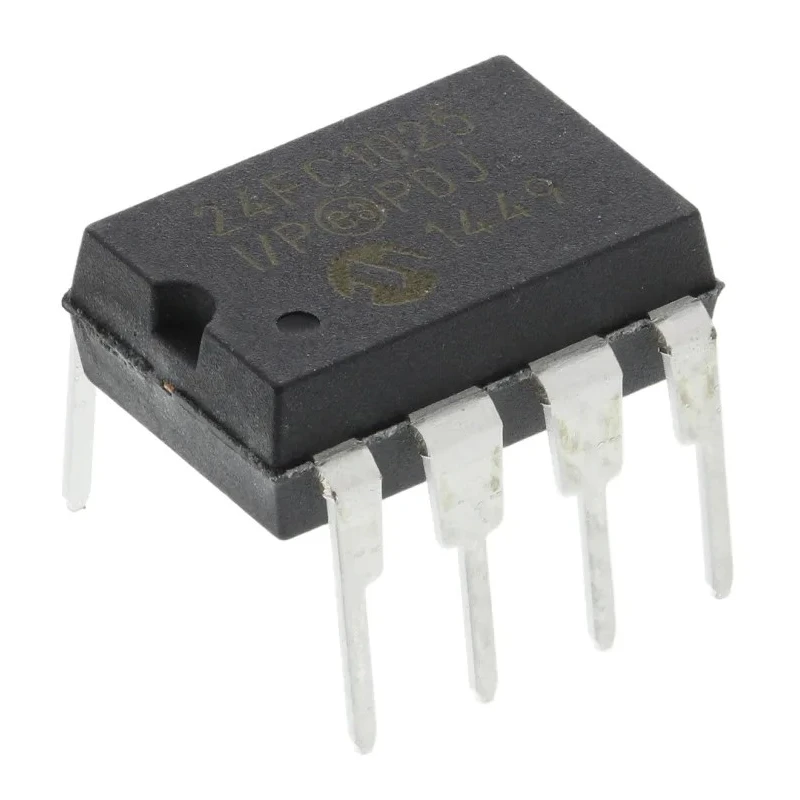

Microchip 1 MB Serial EEPROM, 400 ns, 8-Pin PDIP, Serial-I2C 24FC1025-I/P

Microchip 24FC1025-I/P is a 1 MB Serial EEPROM designed for reliable high-density non-volatile memory applications. Featuring an 8-pin PDIP Through Hole package and a serial I2C interface, it suits a wide range of electronics and semiconductor uses in industrial, automotive, and embedded systems.

This EEPROM device operates at a maximum clock frequency of 1 MHz, ensuring efficient data access. It supports supply voltages from 1.7V to 5.5V, making it compatible with various power configurations.

The component maintains stable performance under an operating temperature range from -40°C to 85°C, making it suitable for demanding temperature conditions. It conforms to automotive standard AEC-Q100, highlighting its robustness for automotive-grade applications.

Rapid data access is enabled with a maximum random access time of only 400 ns, while the supply current of 450 µA aids in energy-efficient design. The memory organization of 128K x 8 bit and data retention of 200 years offer long-term data reliability.

1 MB memory capacity for large data storage. 8-pin PDIP Through Hole packaging for easy integration. Serial I2C communication interface for versatile connectivity. Wide operating voltage of 1.7V to 5.5V for flexibility. Automotive standard AEC-Q100 compliant for durability.

Temperature tolerance from -40°C to 85°C for rugged environments. Maximum access time of 400 ns for fast read/write operations. Low 450 µA supply current to minimize energy usage. Data retention up to 200 years ensuring data stability.

This EEPROM memory component is ideal for applications in industrial controls, automotive electronics, communication systems, and any embedded system requiring persistent data storage with high reliability and speed.
