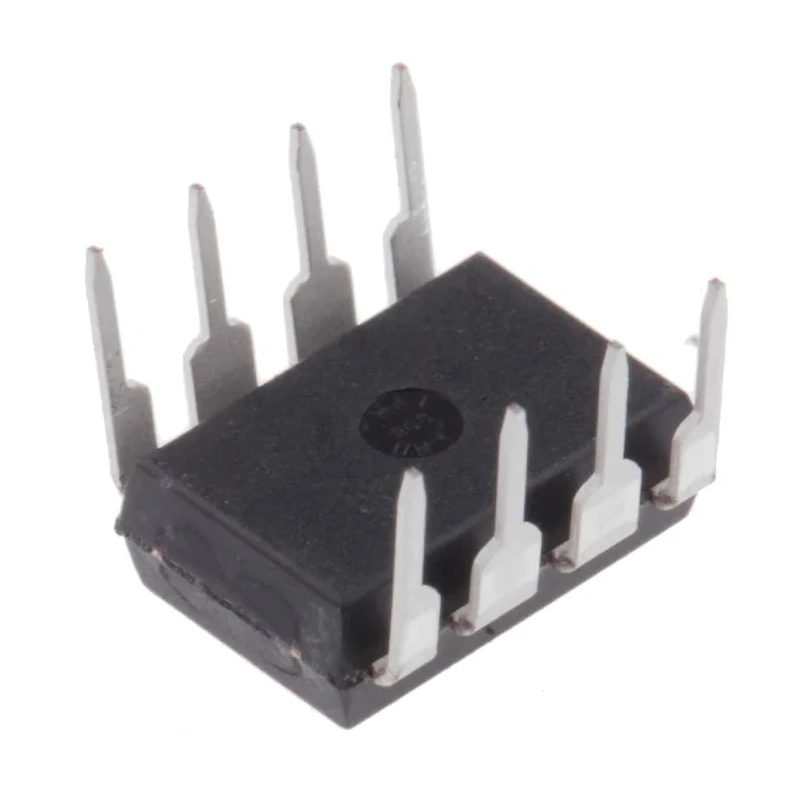

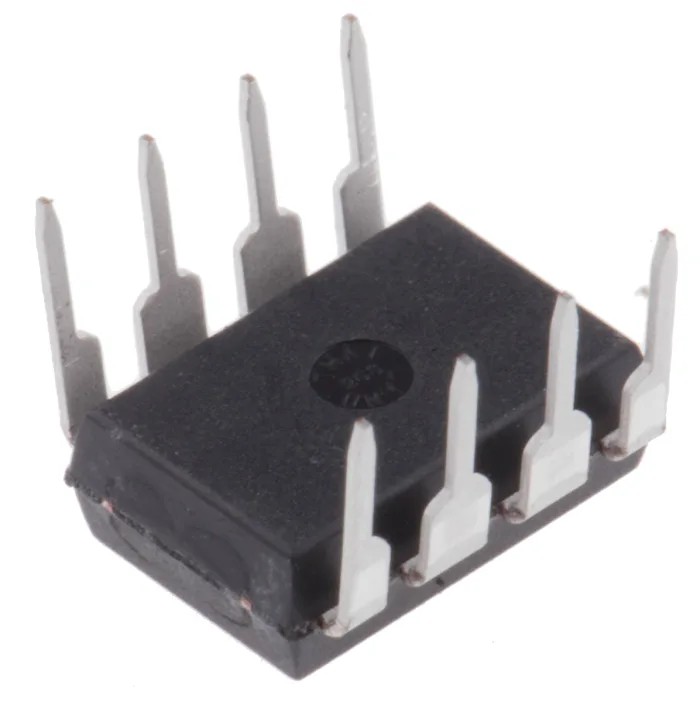

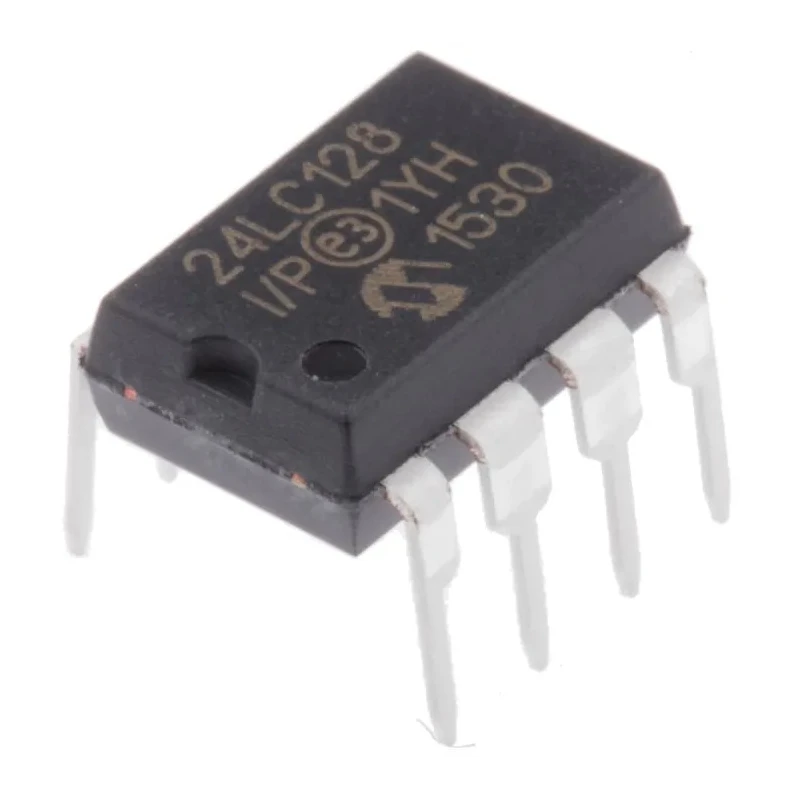

Microchip 128 kB Serial EEPROM 8-Pin PDIP 900 ns Access Time Serial-I2C Interface 24LC128-I/P

Microchip 24LC128-I/P is a high-performance 128 kB Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed with an 8-Pin PDIP package and advanced Serial-I2C interface. It provides a maximum random access time of 900 ns, enabling fast data retrieval for embedded systems and industrial applications.

This EEPROM supports a wide operating voltage range from 2.5 V to 5.5 V and maintains reliable operation between -40°C and 85°C, making it suitable for automotive and harsh environment uses. The device conforms to the AEC-Q100 automotive standard, assuring stringent quality and reliability requirements for critical applications.

The 24LC128-I/P is organized as 16k x 8 bits, with 8 bits per word, providing flexible memory management for various electronic devices. Its compact PDIP form factor measures 9.4 mm in length and 6.35 mm in width, facilitating easy through-hole mounting in circuit boards. The device draws a nominal supply current of 3 mA, which ensures efficient power usage in battery-operated equipment.

It assures a data retention period of 200 years, suitable for applications demanding long-term data preservation such as industrial controls, automotive systems, and consumer electronics. The serial interface supports a maximum clock frequency of 400 kHz enabling effective communication speed for microcontroller interfacing.

Common applications for this memory chip include data logging, configuration storage, and embedded system memory expansion in industrial, automotive, medical, and consumer electronics domains.

Offers 128 kB memory size suitable for various data storage applications. Equipped with an 8-pin PDIP through-hole mounting package for easy hardware integration. Supports Serial-I2C interface with a maximum clock frequency of 400 kHz for efficient data communication.

Operates over a wide voltage range from 2.5 V to 5.5 V ensuring compatibility with diverse systems. Features a data retention time of 200 years for long-term reliable storage. Complies with AEC-Q100 automotive standard ensuring high quality and reliability.

Functions reliably in temperature range from -40°C to 85°C for industrial applications. Physical dimensions include a length of 9.4 mm and width of 6.35 mm for compact circuit design. Has a supply current of 3 mA contributing to low power consumption in embedded systems.

Organisation of 16k x 8 Bit with 8 bits per word enables precise data storage architecture. Explore more Microchip EEPROM and semiconductor products on EnvMart for industrial, automotive, and electronic application needs.
