STMicroelectronics Thyristor SCR 1000 V 12 A 15 mA Gate Current TO-263 Package TN1215-600G-TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Thyristor SCR 1000 V 12 A 15 mA Gate Current TO-263 Package TN1215-600G-TR

Name: STMicroelectronics Thyristor SCR 1000 V 12 A 15 mA Gate Current TO-263 Package TN1215-600G-TR
Brand: STMicroelectronics
SKU: 211866
Price: 0.87 USD
Availability: InStock



Category Thyristor Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	TN1215-600G-TR
Mount Type	Surface, Through Hole
Maximum Operating Temperature	125°C
Package Type	TO-263
Minimum Operating Temperature	-40°C
Standards/Approvals	V0, Epoxy meets UL94
Pin Count	3
Rated Average On-State Current Irms	12A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1000V
Surge Current Rating	145A
Maximum Gate Trigger Current Igt	15mA
Maximum Holding Current Ih	40mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.6V
Repetitive Peak Off-State Current	0.005mA

Key Features

The thyristor features a repetitive peak reverse voltage of 1000 V for robust operation.
It supports surge current ratings up to 145 A for transient overload protection.
Designed for surface and through-hole mounting applications.
Gate trigger voltage is maximum 1.3 V, enabling sensitive gate control.
Operating temperature range extends from -40°C to 125°C for diverse environments.
Peak on-state voltage drop is 1.6 V, ensuring efficient conduction.
Meets V0 epoxy UL94 standard ensuring flame retardant properties.
Ideal for general purpose power switching and control applications.

Product Description

STMicroelectronics TN1215-600G-TR thyristor is a silicon controlled rectifier (SCR) designed for rugged and efficient power switching in industrial, electronic, and control systems. This device operates with a repetitive peak reverse voltage of 1000 V and a rated average on-state current of 12 A. Its surge current capacity of 145 A supports transient load conditions, ensuring reliability in demanding applications.

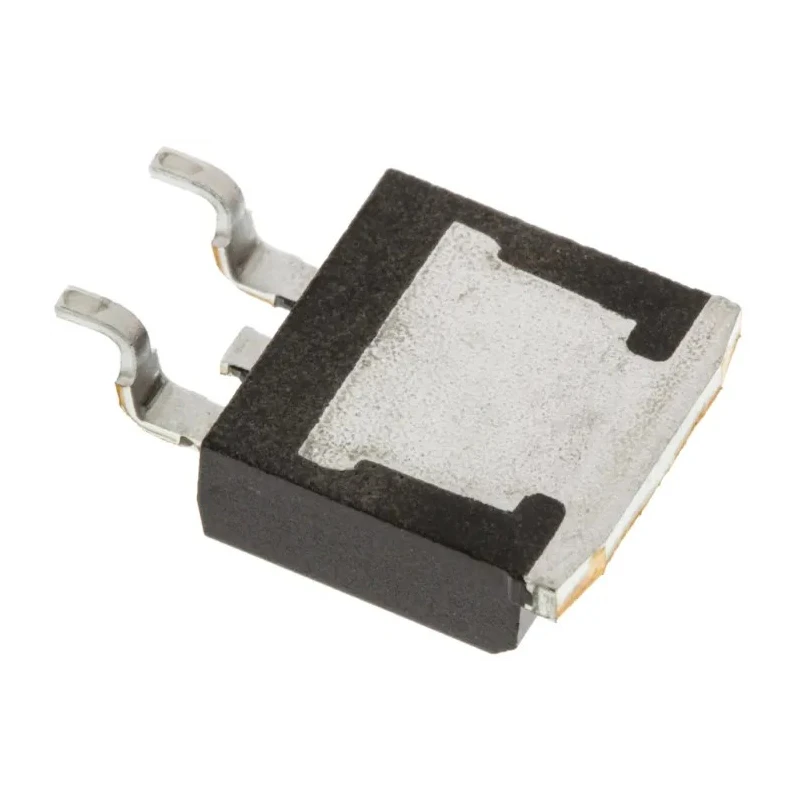

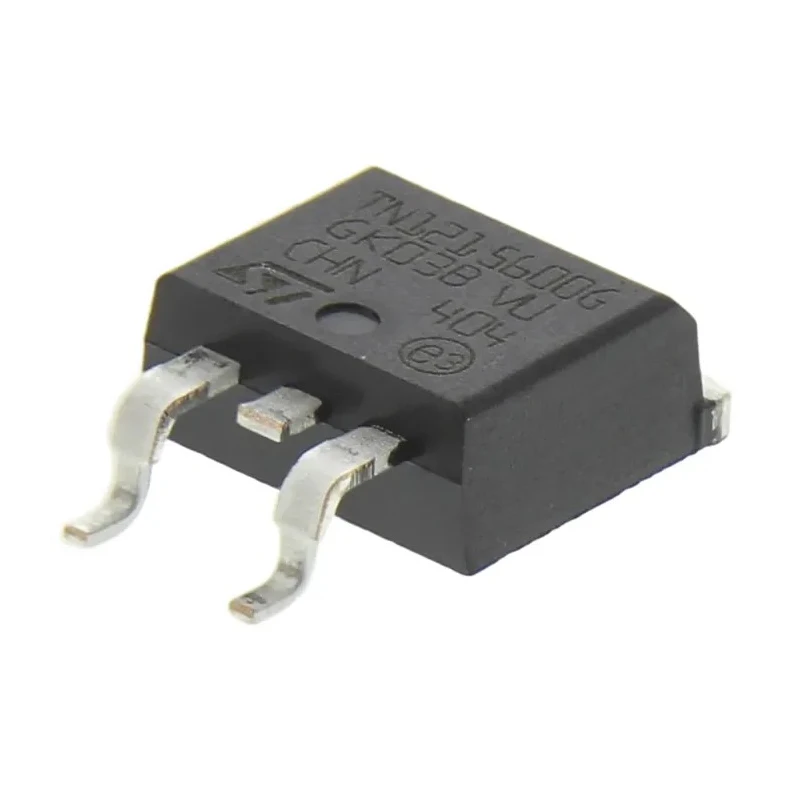

Encapsulated in a TO-263 package, the thyristor is suitable for both surface mount and through hole mounting techniques, facilitating flexible integration into power circuits. The device features a maximum gate trigger current of 15 mA and a gate trigger voltage not exceeding 1.3 V, allowing for sensitive gate activation in control circuits.

The operating temperature range from -40°C to 125°C ensures dependable performance under harsh thermal environments. The peak on-state voltage is nominally 1.6 V, contributing to low conduction losses and high efficiency. Additionally, the device meets V0 epoxy standards per UL94, providing flame retardant characteristics essential for safety compliance.

STMicroelectronics produces a broad range of these thyristors suited for various power switching and control applications including motor drives, power supplies, and industrial automation equipment. The TN1215-600G-TR is optimized for switching AC currents and is well-known for its robust performance and long service life.

The device supports current switching up to 12 A and voltage blocking up to 1000 V. Surface and through hole mounting provide application versatility. Complies with flame retardant standards for enhanced safety. Wide temperature range operation suitable for industrial environments.

Low trigger current and voltage for efficient controlling circuits. High surge current rating for robust transient handling. Compact TO-263 package suitable for power semiconductor assemblies. Choose STMicroelectronics TN1215-600G-TR Thyristors for reliable and efficient semiconductor power control solutions in electronic and industrial systems.
