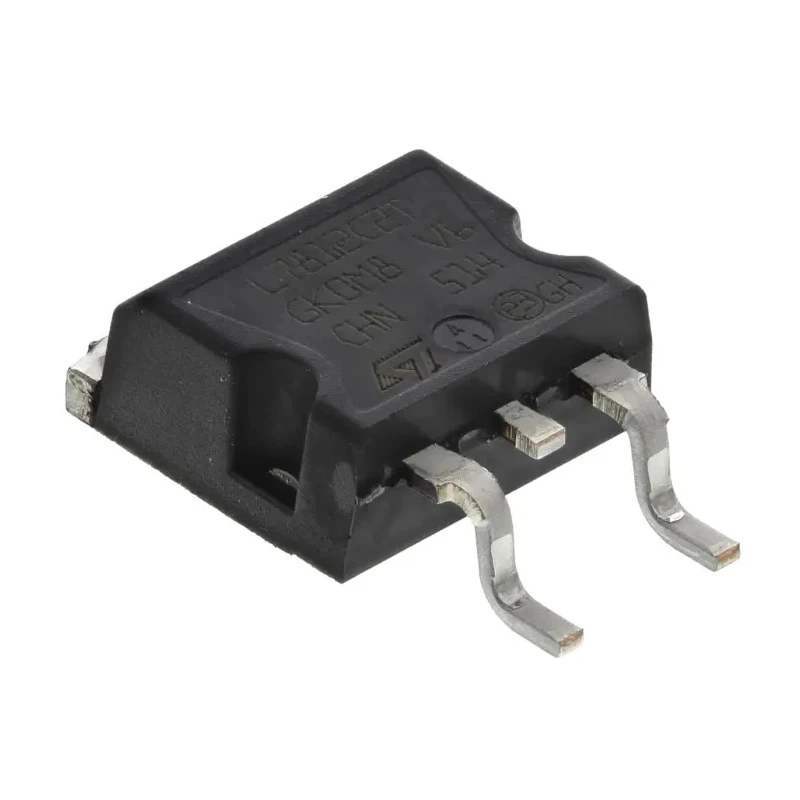

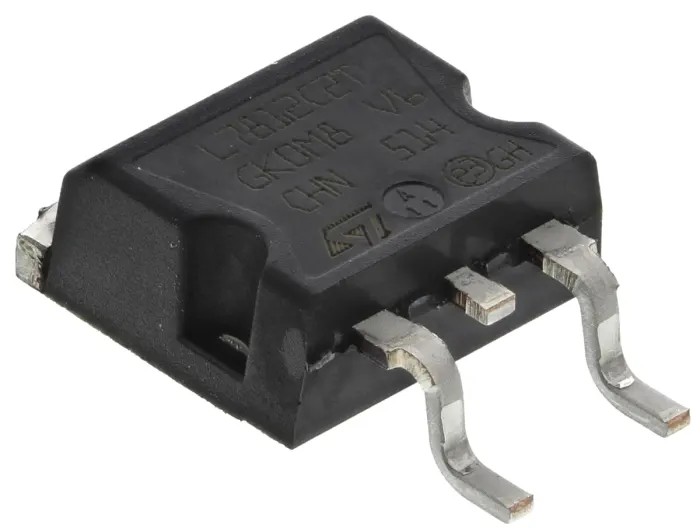

STMicroelectronics Linear Voltage Regulator 35V 3-Pin Surface Mount Positive Polarity L7812CD2T-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L7812CD2T-TR, Voltage Regulator 35V 3-Pin RS Stock |
| Brand | STMicroelectronics |
| Height | 4.6mm |
| Length | 10.4mm |
| Model | L7812CD2T-TR |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | L78xx |
| Output Current | 1.5 A |
| Maximum Operating Temperature | 150°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 8mA |
| Pin Count | 3 |
Key Features
- Delivers up to 1.5A output current for reliable power management.
- Includes thermal overload protection for safe operation.
- Features output transition safe area (SOA) protection to improve durability.
- Compact 3-pin surface mount package with dimensions 10.4mm x 9.35mm x 4.6mm.
- Positive polarity with quiescent current of 8mA ensures low power consumption.
- Maximum operating temperature rating of 150°C allows for industrial usage.
- Part of the L78xx series of fixed voltage regulators widely used in electronics industry.
- Ideal for applications requiring local on-card voltage regulation.
Product Description
STMicroelectronics L7812CD2T-TR is a linear voltage regulator designed for efficient and reliable voltage regulation in electronic circuits. This device is part of the renowned L78xx series offering fixed output voltages, making it suitable for a wide range of industrial and commercial applications.
The regulator features a 3-pin surface mount package with precise dimensions (length 10.4mm, width 9.35mm, height 4.6mm), designed for compact PCB layouts. It supports a maximum input voltage of 35V and delivers a fixed 12V output voltage with output current up to 1.5A, making it ideal for powering various devices requiring stable voltage supply.
Equipped with thermal overload protection and output transition safe area (SOA) protection, the L7812CD2T-TR ensures operational safety and long device life. The device's positive polarity and low quiescent current of 8mA contribute to energy efficiency.
This voltage regulator can operate in temperatures up to 150°C, enabling use in demanding industrial environments. The internal current limiting feature safeguards against overload conditions.
The L7812CD2T-TR is extensively used in power management circuits, linear voltage regulation modules, and embedded systems where reliable and fixed voltage outputs are required. Its compact surface mount design and protective features facilitate easy integration and robust performance in electronic manufacturing.
Delivers up to 1.5A output current for reliable power management. Includes thermal overload protection for safe operation. Features output transition safe area (SOA) protection to improve durability. Compact 3-pin surface mount package with dimensions 10.4mm x 9.35mm x 4.6mm.
Positive polarity with quiescent current of 8mA ensures low power consumption. Maximum operating temperature rating of 150°C allows for industrial usage. Part of the L78xx series of fixed voltage regulators widely used in electronics industry.
Ideal for applications requiring local on-card voltage regulation. Internal current limiting enhances device safety and longevity. Explore the extensive range of Voltage Regulators by STMicroelectronics for your electronic design and manufacturing needs here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an output current of up to 1.5A, making it suitable for various power management applications.
The maximum input voltage for the L7812CD2T-TR is 35V, allowing it to handle a wide range of input conditions.
It has a compact 3-pin surface mount package with dimensions of 10.4mm in length, 9.35mm in width, and 4.6mm in height.
The L7812CD2T-TR features a quiescent current of 8mA, contributing to its low power consumption.
This voltage regulator can operate at a maximum temperature of 150°C, making it suitable for industrial applications.
It has a positive polarity, which is typical for many linear voltage regulators in the L78xx series.
The L7812CD2T-TR includes thermal overload protection and output transition safe area (SOA) protection to enhance operational safety.
This model is part of the L78xx series of fixed voltage regulators, which are widely used in the electronics industry.
It features a surface mount design, which allows for compact integration on printed circuit boards (PCBs).
It is ideal for applications requiring local on-card voltage regulation and is commonly used in power management circuits.
In addition to thermal overload protection, it has internal current limiting to safeguard against overload conditions.
The country of origin for this voltage regulator is India.
