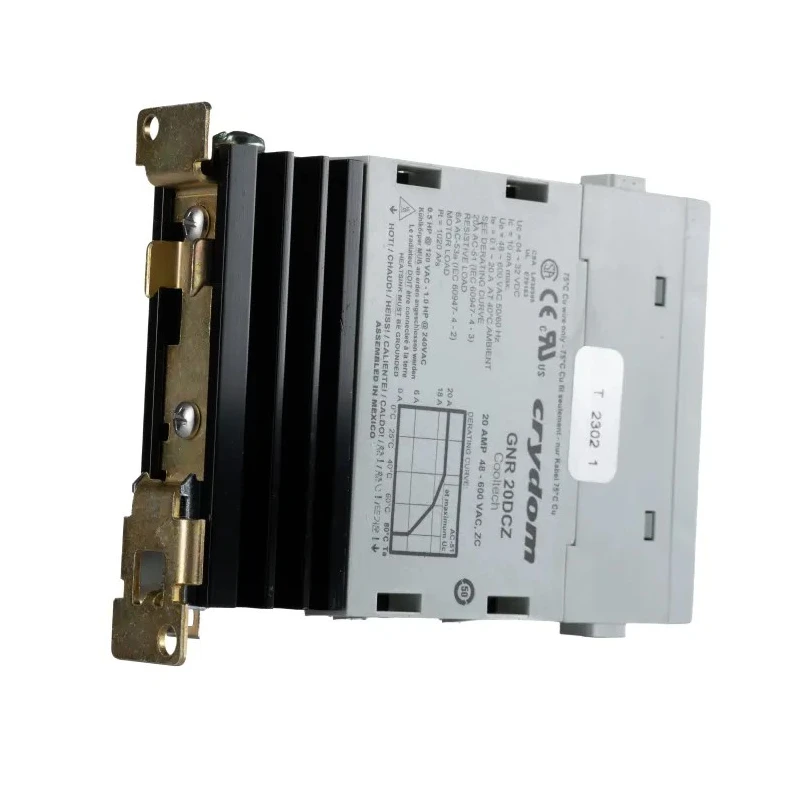

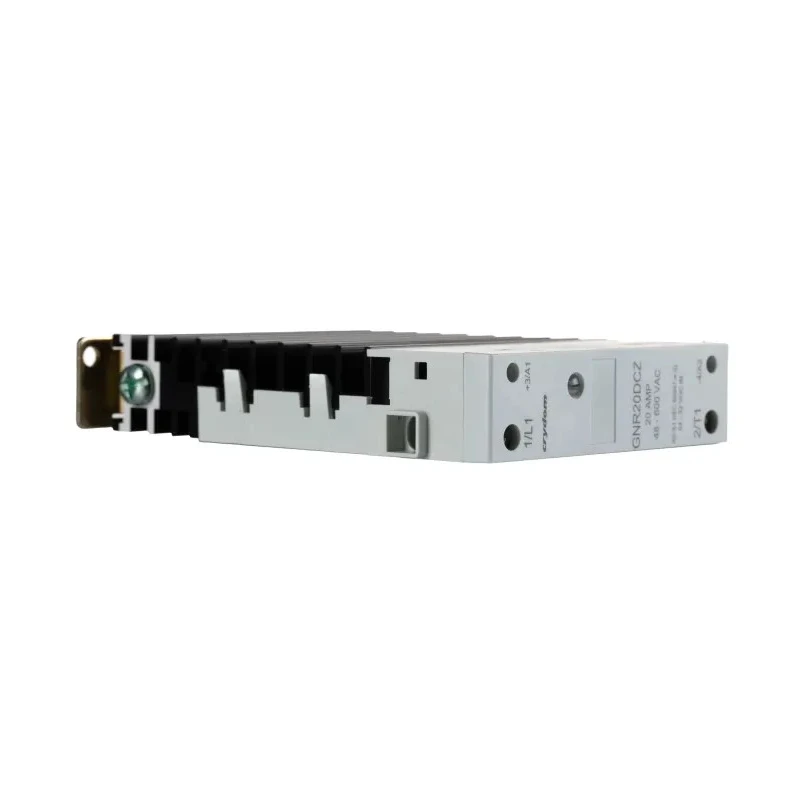

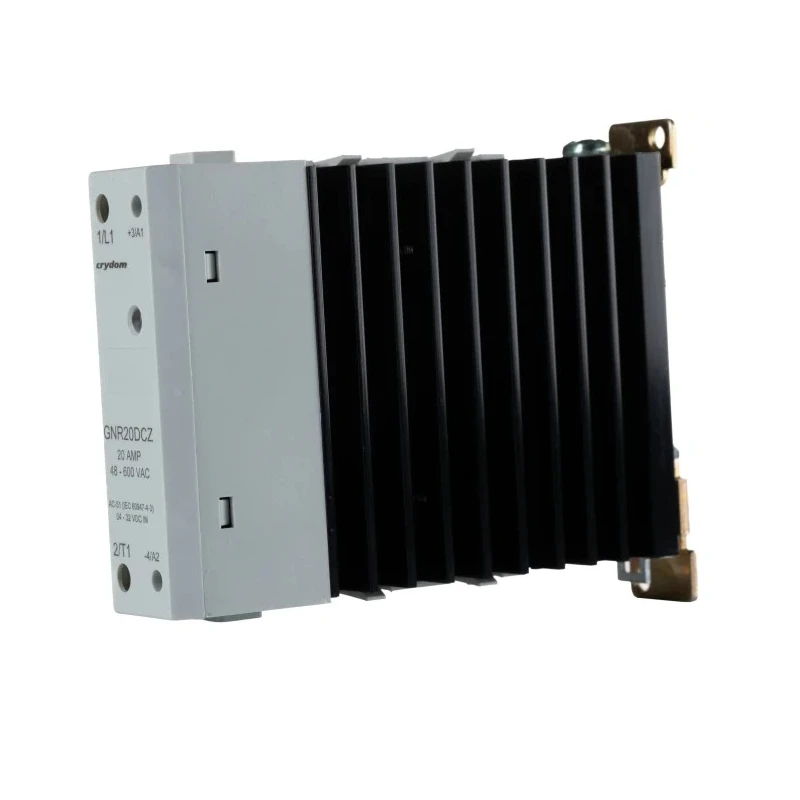

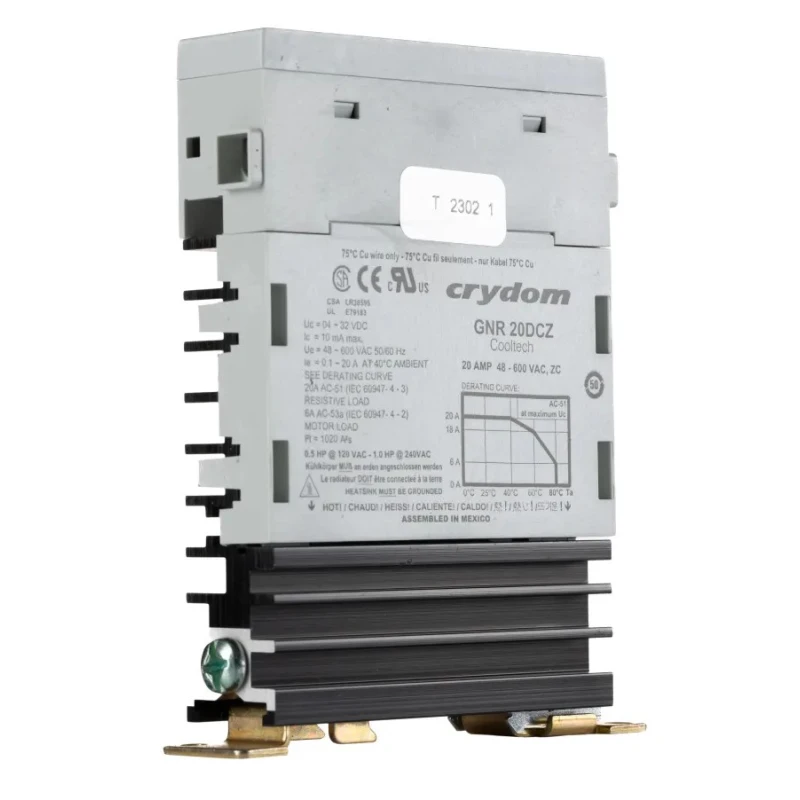

Crydom Solid State Relay 20 A Load, DIN Rail Mount, 600 Vrms Load, 32 V dc Control GNR20DCZ

Crydom GNR20DCZ Solid State Relay supports switching high current loads up to 20 A with a 600 Vrms maximum load voltage and DIN Rail mounting compatibility. It is engineered for industrial, automation, and electrical control applications where reliable and efficient power switching is critical.

This relay utilizes zero cross switching technology, which allows switching to occur when the AC load voltage crosses zero, thereby minimizing electrical noise and prolonging connected component life. The GNR20DCZ is designed with screw type terminals ensuring secure and stable electrical connections suitable for demanding environments.

The relay operates effectively across a temperature range from -20°C to 80°C, offering robust performance in various industrial operating conditions. Its compact form factor with dimensions of 88.1 mm height and 123.4 mm length allows for space-saving installation in electrical panels.

Energy efficiency is enhanced by the low off-state leakage current of just 0.25 mA rms and a capacitance of 8 pF. Built-in overvoltage protection safeguards connected equipment against voltage spikes, ensuring system longevity.

Crydom GNR Series relays conform to UL, CE, and CSA standards, providing confidence in safety and regulatory compliance. The device is manufactured in Mexico by Sensata, renowned for industrial-grade components.

Common industrial use cases include automated manufacturing systems, HVAC controls, and production line equipment, where precise and reliable solid-state switching is essential. Supports a maximum load current of 20 A, suitable for high power applications.

Equipped with screw terminals for secure electrical connections. Operates within a control voltage range of 4V dc to 32V dc. Features zero cross switching function to reduce electrical noise during switching. Compact dimensions with height 88.1 mm and length 123.4 mm for easy installation.

Capable of operating in temperatures from -20°C to 80°C, ensuring reliability. Includes built-in overvoltage protection for hardware safety. Low off-state leakage current of 0.25 mA rms to enhance energy efficiency. Meets industry standards including UL, CE, and CSA approvals.

Country of origin is Mexico, reflecting quality manufacturing standards. Explore the Crydom range of Solid State Relays and industrial electrical components at EnvMart for trusted quality and performance.
